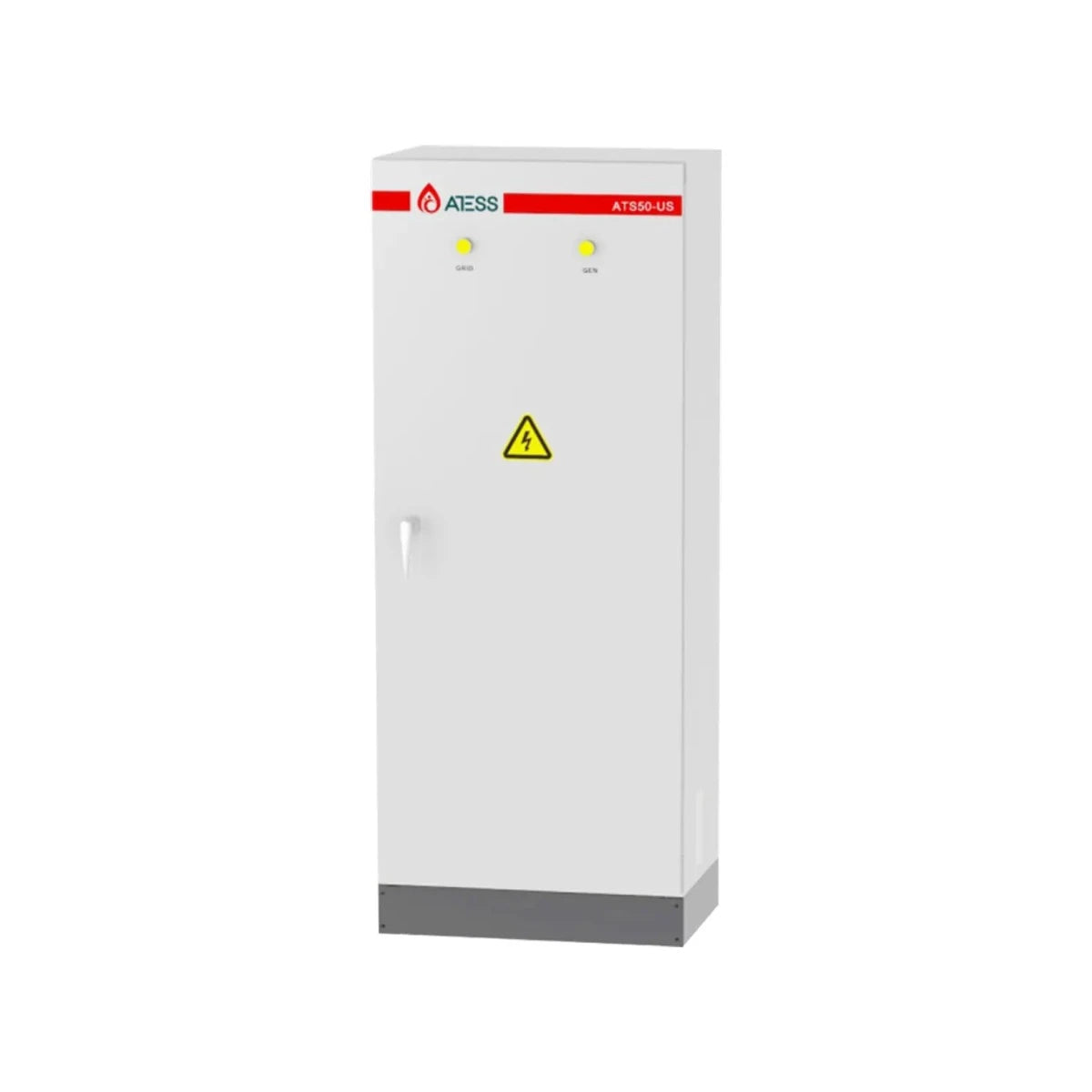

ATESS ATS 150 Automatic Transfer Switch for HPS100/120/150

ATESS ATS 150 Automatic Transfer Switch for HPS100/120/150

The ATS is an accessory of the HPS inverter systems and is needed when both the utility grid and Diesel Generator need to access the HPS inverter. The ATS will do the switching between grid and the Diesel Generator.

Product Features:

• HPS compatible
• Support Generator Remote Control
• Flexible Management
• Transfer automatically between Grid and Generator
• ATS150 to be used with HPS100/120/150

Specifications:

• Rated voltage - 400V
• Rated current - 346A
• Rated frequency - 50/60Hz
• Rated power - 240kVA
• Zero export function - Optional
• Output breaker - 400A
• Grid breaker - 400A
• DG breaker - 400A
• Lightning protection - Type II
• Protection degree - IP20
• Relative humidity - 0~95% non-condensing
• Operating temperature - -25°C~+55°C
• Dimension (W/H/D) - 700/1650/500mm
• Weight - 125kg
• Communication - RS485/CAN

Important

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.
