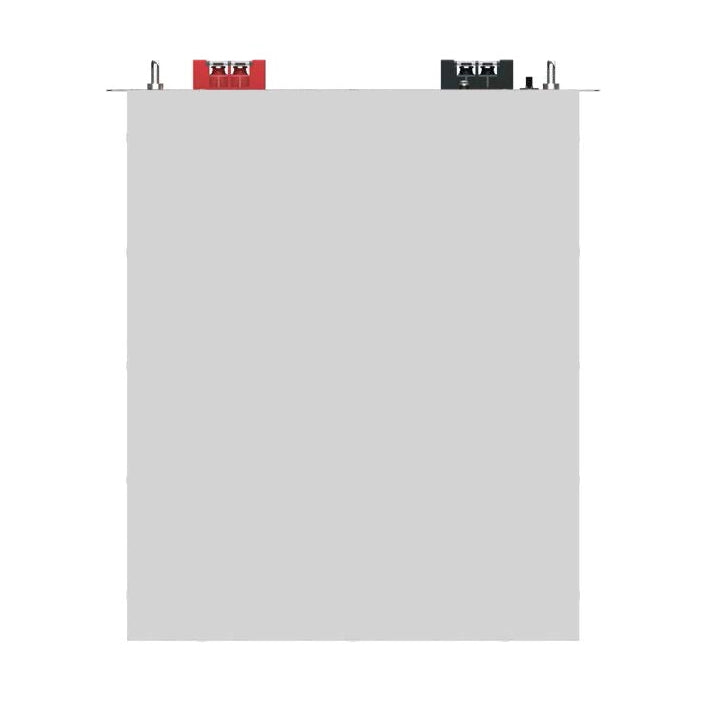

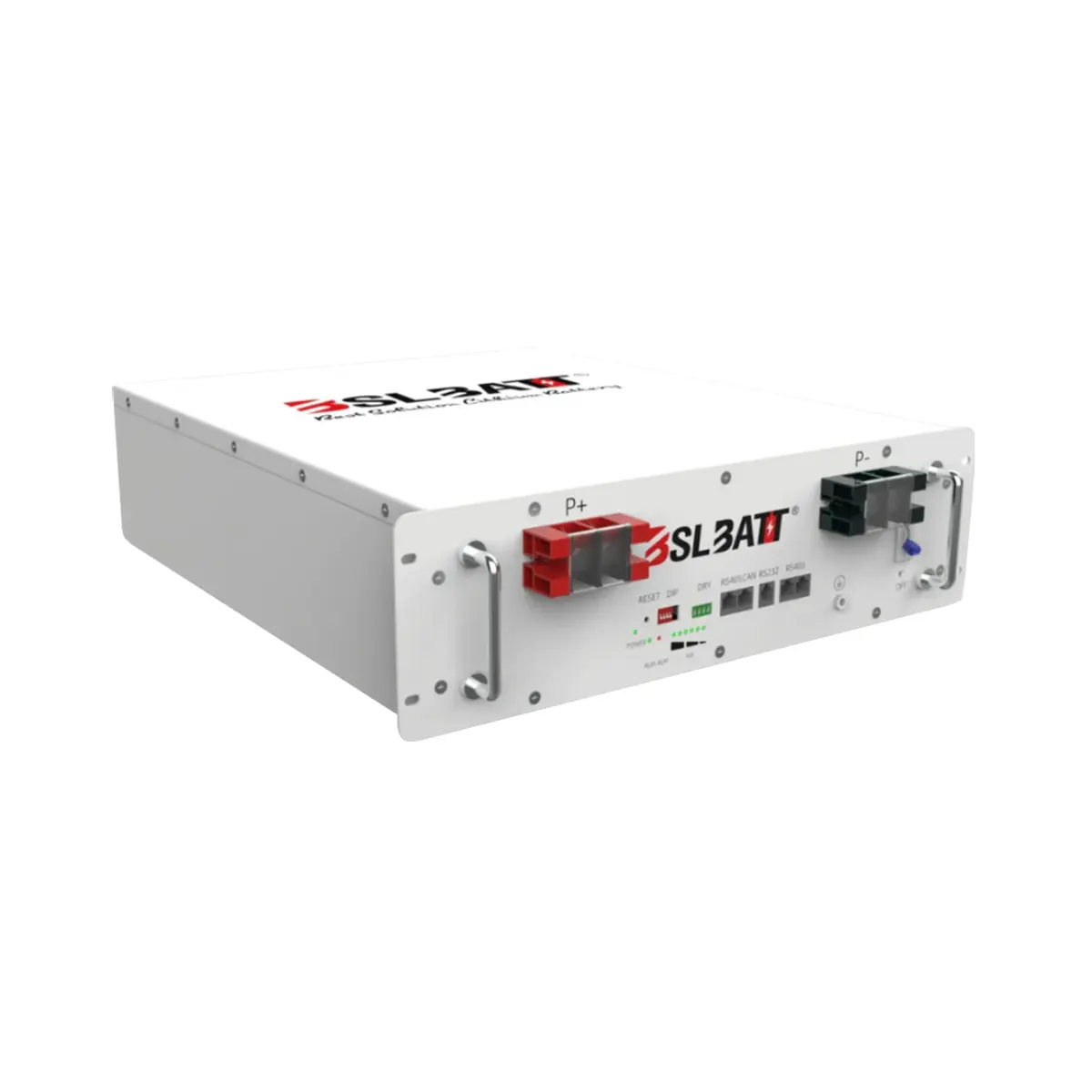

BSL Battery 5.12Kw 100Ah 51.2V

BSL Battery 5.12Kw 100Ah 51.2V

B-LFP48-100E 3U 51.2V 5.12kWh with 100AH internal BMS. Composed of (16) UL listed prismatic 3.2V LiFePO4 cells in series which have been tested at 6000 deep discharge cycles to 80% DoD - fully charge and discharge this battery daily for over 15 years without issue. You'll get 12 years of warranty service and technical support with BSL inverters and batteries!

Product Features:

•  Modular and scalable
• More compact design
• Better price, bigger capacity
• 10-year warranty & technical support
• For on-grid and off-grid
• UL standard battery pack
• High cycle life and deep cycle capability
• Safe and reliable LiFePO4 cells

Specifications:

• Model - B-LFP48-100E 3U
• Charge voltage - DC 58.4V
• Nominal voltage - 51.2V
• Nominal capacity - 100Ah
• Energy - 5.12KWh
• Charge current - Standard charge: 0.5C Approx 3 Hours / Rapid charge: 1C Approx 1.5 Hours
• Standard charging method - 0.5C.CC (constant current) charge to 58.4V, then CV(constant voltage 58.4V) charge till charge current decline to 0.05C
• Max. charge current - 50A
• Max. discharge current - 100A
• Max. pulse current - 150A(300ms)
• Discharge cut-off voltage - 40V
• Cell & method - 16S2P
• Operating temperature - Charging 0°C ~ 45°C / Discharging -20°C ~55°C
• Storage temperature - - 10°C ~ + 45°C
• Battery weight - 46 kg
• Battery dimension - 538*483(442)*136mm(W*H*D)

Important

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact
representation of the product.
