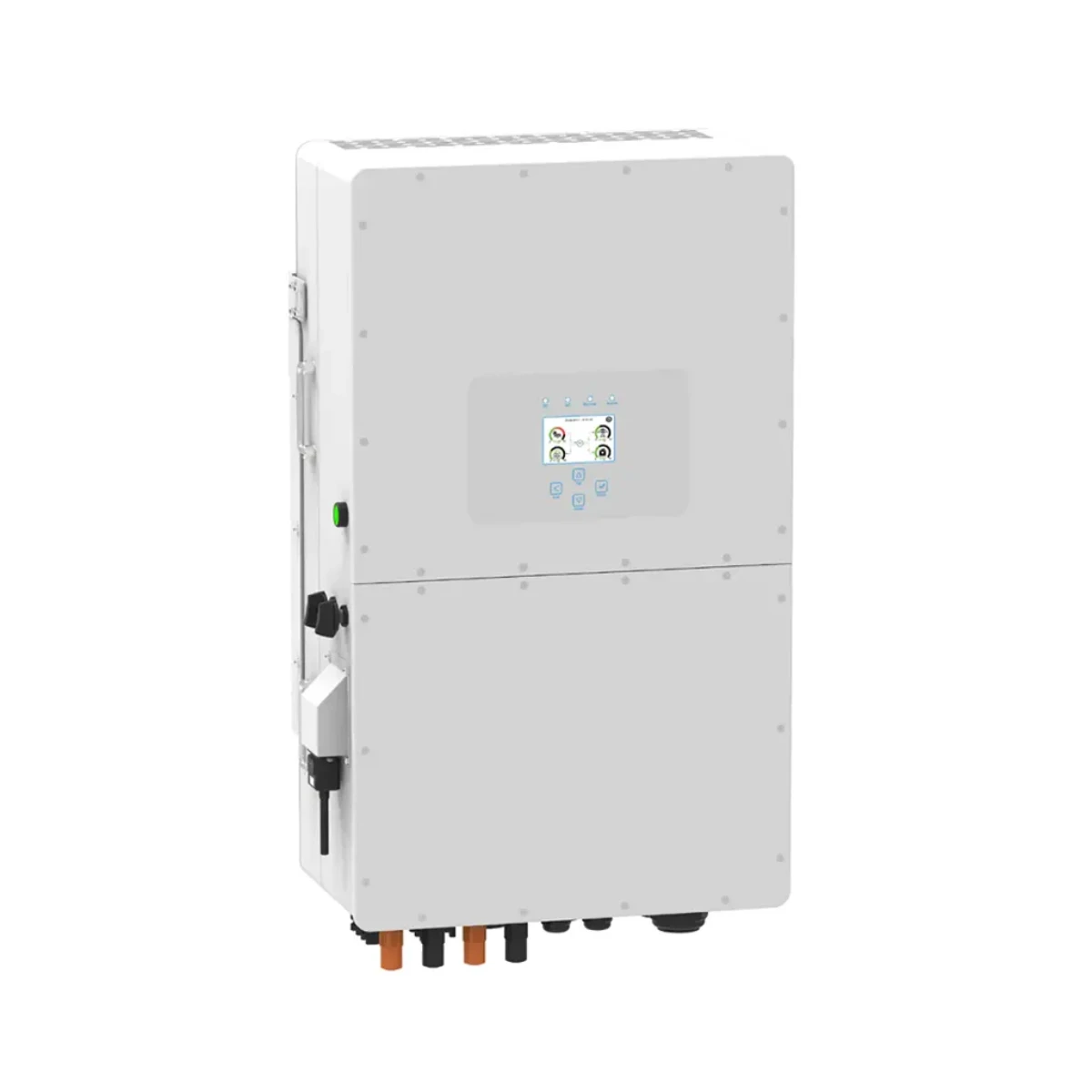

Deye 50Kw Three Phase HV Hybrid Inverter

Deye 50Kw Three Phase HV Hybrid Inverter - SUN-50K-SG01HP3-EU-BM4

Product Features:

• 100% unbalanced output, each phase; Max. output up to 50% rated power
• DC couple and AC couple to retrofit existing solar system
• Max. 10pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
• Max. charging/discharging current of 100A
• High voltage battery, higher efficiency
• 6 time periods for battery charging/discharging
• Support storing energy from diesel generator

Specifications:

• Battery Input Data:
• Battery Type: Lead-acid or Lithium-ion
• Max. Charging Current (A): 50+50
• Max. Discharging Current (A): 50+50
• Number of battery input: 2
• PV String Input Data:

• Max. DC Input Power (W): 65000
• Max. DC Input Voltage (V): 1000
• Start-up Voltage (V): 180
• MPPT Voltage Range (V): 450-850
• Max. Operating PV Input Current (A): 36+36+36+36
• No. of MPP Trackers/ No. of Strings per MPP Tracker: 4/2
• AC Output Data:
• Rated AC Output and UPS Power (W): 50000
• Max. AC Output Power (W): 55000
• AC Output Rated Current (A): 75.8/72.5
• Grid Type: Three Phase
• General

• Noise (dB): <45 dB
• Ingress Protection(IP) Rating: IP65
• Cabinet Size (WxHxD mm): 527W×894H×294D
• Weight (kg): 75

Important

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact
representation of the product.
