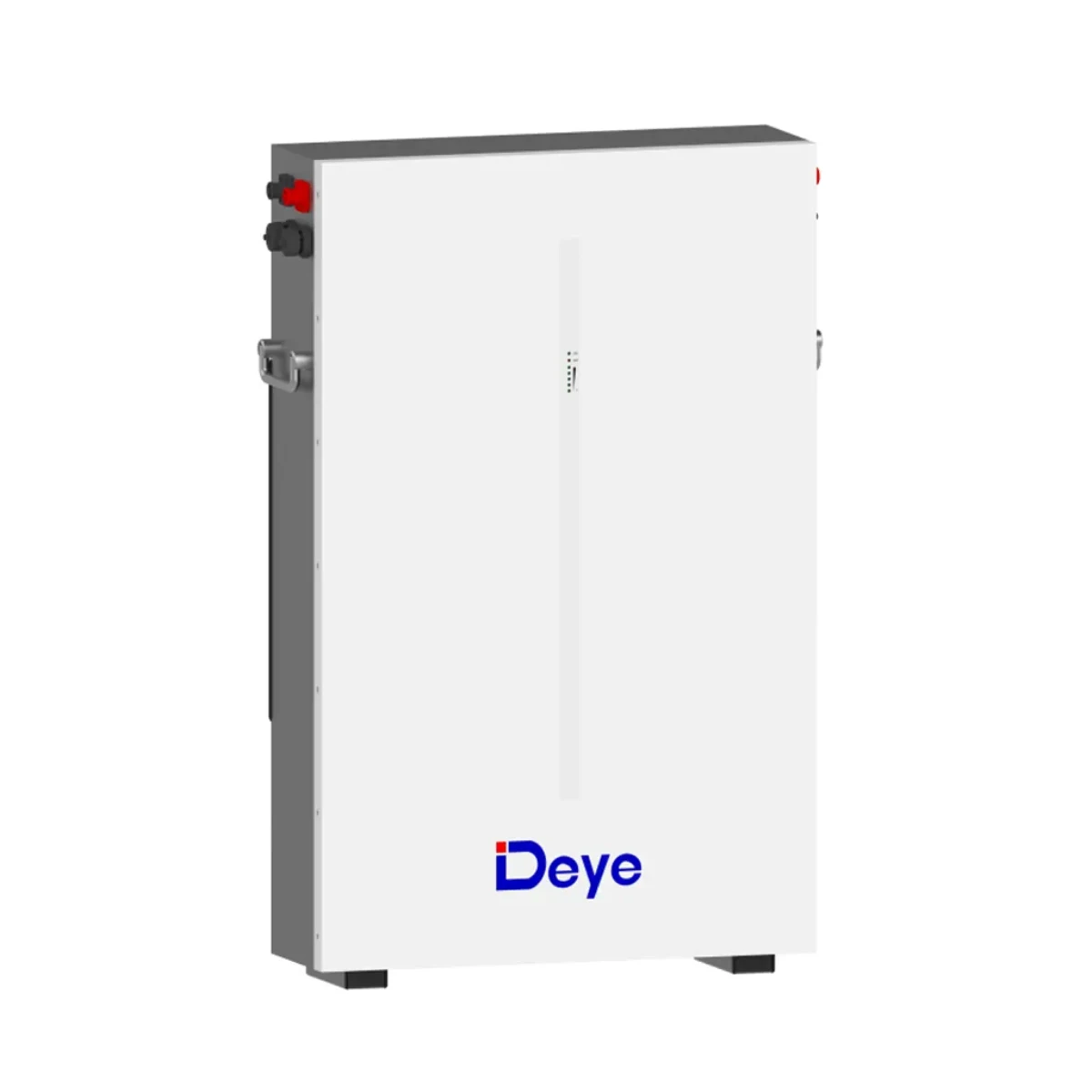

Deye Lithium Ion Battery Low Voltage 6.14Kwh 51.2V 120Ah

Deye Lithium Ion Battery Low Voltage 6.14Kwh 51.2V 120Ah

This series of lithium iron phosphate batteries is one of the new energy storage products developed and produced by Deye. It can be used to provide reliable power for various types of equipment and systems.

This battery series is especially suitable for applications with high power demands, limited installation space, restricted load-bearing, and a long cycle life. The series includes a built-in BMS (Battery Management System), which can manage and monitor cell information, including voltage, current, and temperature. Moreover, the BMS can balance cell charging to extend the cycle life.

Multiple batteries can be connected in parallel to achieve larger capacity and longer power-supporting duration requirements."

Product Features:

• Safer: Cobalt Free Lithium Iron Phosphate (LFP) Battery: Safety and long lifespan, high efficiency and high power density. Intelligent BMS, providing complete protection.
• Reliable: Support high discharge power. IP20, natural cooling, wide temperature range: -20℃ to 55℃.
• Modular design, easy to expand, Max. 32 units in parallel, Max. capacity of 196kWh. Suited to residential and commercial applications for increasing the self-consumption ratio
• Convenient: Battery module auto networking, Automatic IP addressing, easy maintenance, remotely monitoring and upgrade, support USB drive upgrade the firmware
• Eco-Friendly: Use environmental protection materials, the whole module is non-toxic, and pollution-free.
• Wall-Mounted: Flat design, wall-mounted, saving installation space.

Specifications:

• Battery Chemistry: LiFePO 4
• Capacity (Ah): 120
• Scalability: Max.32 pcs in Parallel(196kWh)
• Nominal Voltage (V): 51.2
• Operating Voltage(V): 43.2~57.6
• Energy(kWh): 6.14
• Usable Energy(kWh)*: 5.53
• Charge/Discharge Current (A):
• Recommend: 60
• Max: 100
• Peak: 150 (2mins,25℃)
• Recommend Depth of Discharge: 90%
• Dimension (W/H/D, mm): 460*720*143 (Depth of 160mm With Hanging Board)
• Weight Approximate (kg): 55
• Warranty Period: 10 years

Important

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact
representation of the product.
