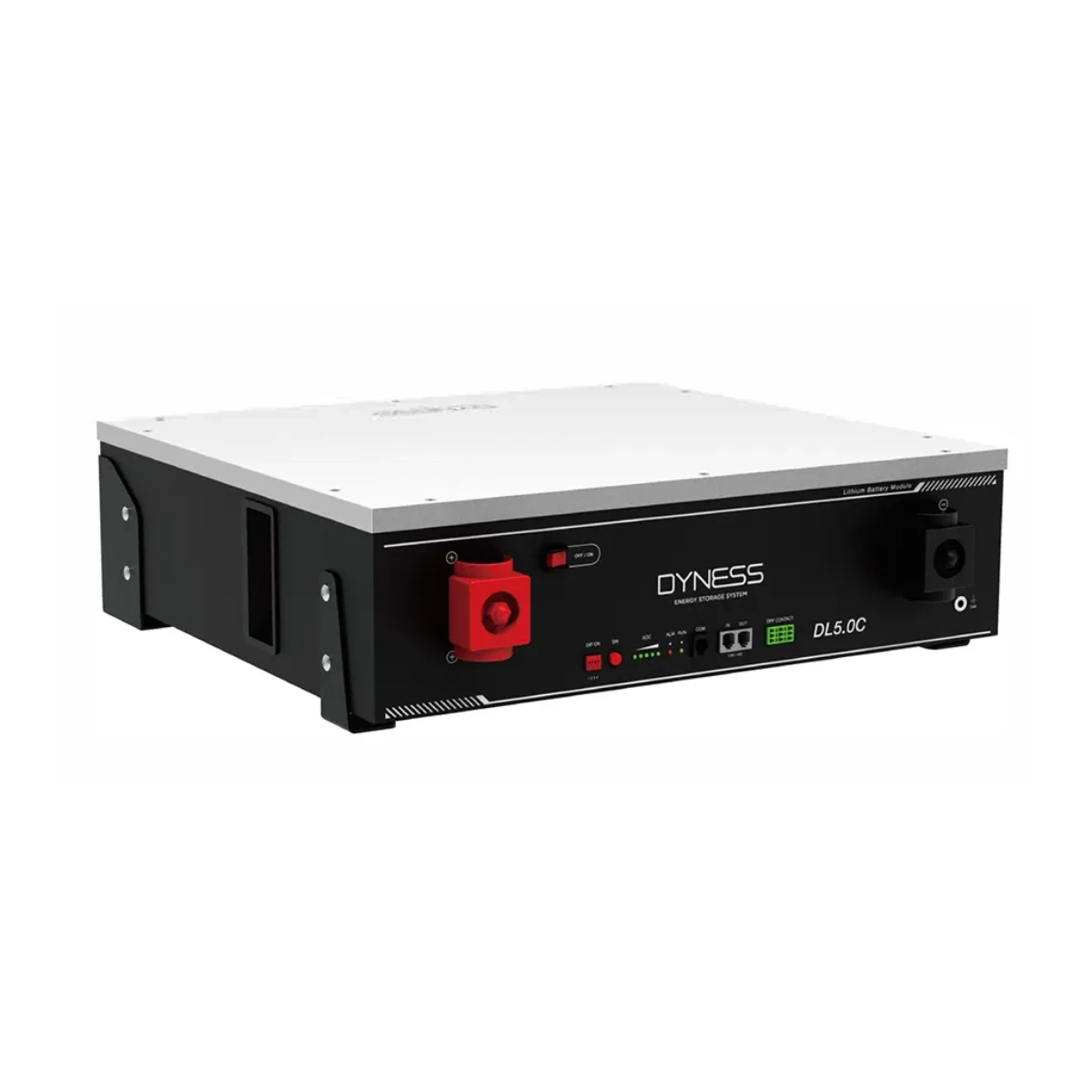

Dyness DL5.0C Lithium Ion Battery 5.12KWH 51.2V 100Ah

Dyness DL5.0C Lithium Ion Battery  5.12KWH 51.2V 100Ah - DYN-DL5.0C

DYNESS DL5.0C adopts economic design, and is tailor-made for residential & light commercial. This LFP battery module supports remote update and APP monitoring and provides multiple installation options - wall-mounted, floor-standing and stack. It is scalable from 5.12 -256 kWh (max. 50 modules in parallel), providing various energy storage options to meet different requirements.

Product Features:

• APP Monitoring(Optional): Real-time monitoring Remote upgrade available
• Modular Design: Flexible expansion
• Wide Compatibility: Matching with leading inverter brands
• Various Mounting Methods: Wall-mounted, floor-standing and stack
• High Safety LFP: Cell level monitoring and balancing

Specifications:

• Battery Type: LiFePO4
• Nominal Battery Energy: 5.12kWh
• Nominal Capacity: 100Ah
• Nominal Voltage: 51.2V
• Operating Voltage: 44.8~57.6V
• Recommended C Rate: 0.5C
• Recommended Charge/Discharge Current: 50A
• Max. Power Charge Current: 75A
• Peak Power Charge/Discharge Current: 110A(15s)
• Depth of Discharge: 85%
• Net Weight: 54kg
• Dimension[W*D*H]: 558*545*150mm
• Cycle Life: 6000 Cycles (Test conditions:0.2C Charging/Discharging,@25°C,8D% DOD)
• Warranty: 10Year
• Expansion: Up to 50 units in parallel

Important

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact
representation of the product.
