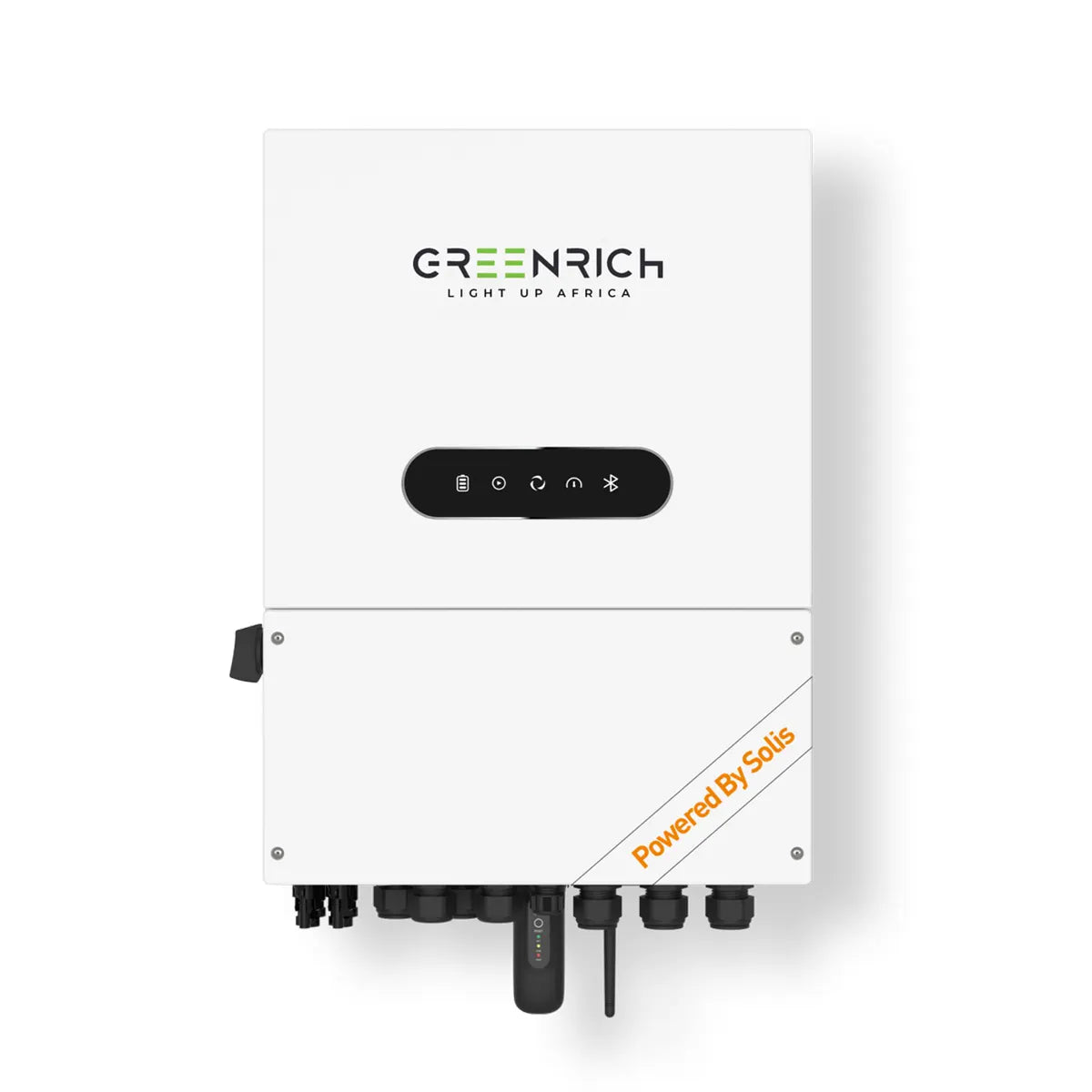

Greenrich 6kW Hybrid Inverter

Greenrich 6kW Hybrid Inverter - GR‑6K1P‑L‑PRO

Product Features:

• 200% Power Surge Overload (10 seconds)
• Smart App
• IP66 Weather Rating
• 150% More Solar Power
• Bluetooth Connectivity

Specifications:

Input DC (PV side)

• Recommended max. PV power: 9.6kW
• Max. input voltage: 600 V
• Rated voltage: 90V
• Start-up voltage: 90 V
• MPPT voltage range: 90‑520V
• Max. input current: 16 A / 16 A
• Max. short circuit current: 24 A / 24 A
• MPPT number/Max. input strings number: 2/2

Input AC (Grid side)

• Input voltage range: 187-253 V
• Max. input current: 40A
• Frequency range: 45-55 Hz / 55-65 Hz

Output AC (Grid side)

• Rated output power: 6kW
• Max. apparent output power: 6.6 kVA
• Rated grid voltage: 220 V / 230 V
• Rated grid frequency: 50 Hz / 60 Hz
• Rated grid output current: 27.3A/26.1A
• Max. output current: 30A

Battery

• Battery type: Li-ion / Lead-acid
• Battery voltage range: 40-60 V
• Max. charge / discharge power: 6kW
• Max. charge / discharge current: 135A
• Communication: CAN/RS485

Physical

• Dimensions (W*H*D): 406*560*205 mm
• Weight: 24 kg
• Ingress protection: IP66
• Cooling concept: Natural convection

Important

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact
representation of the product.
