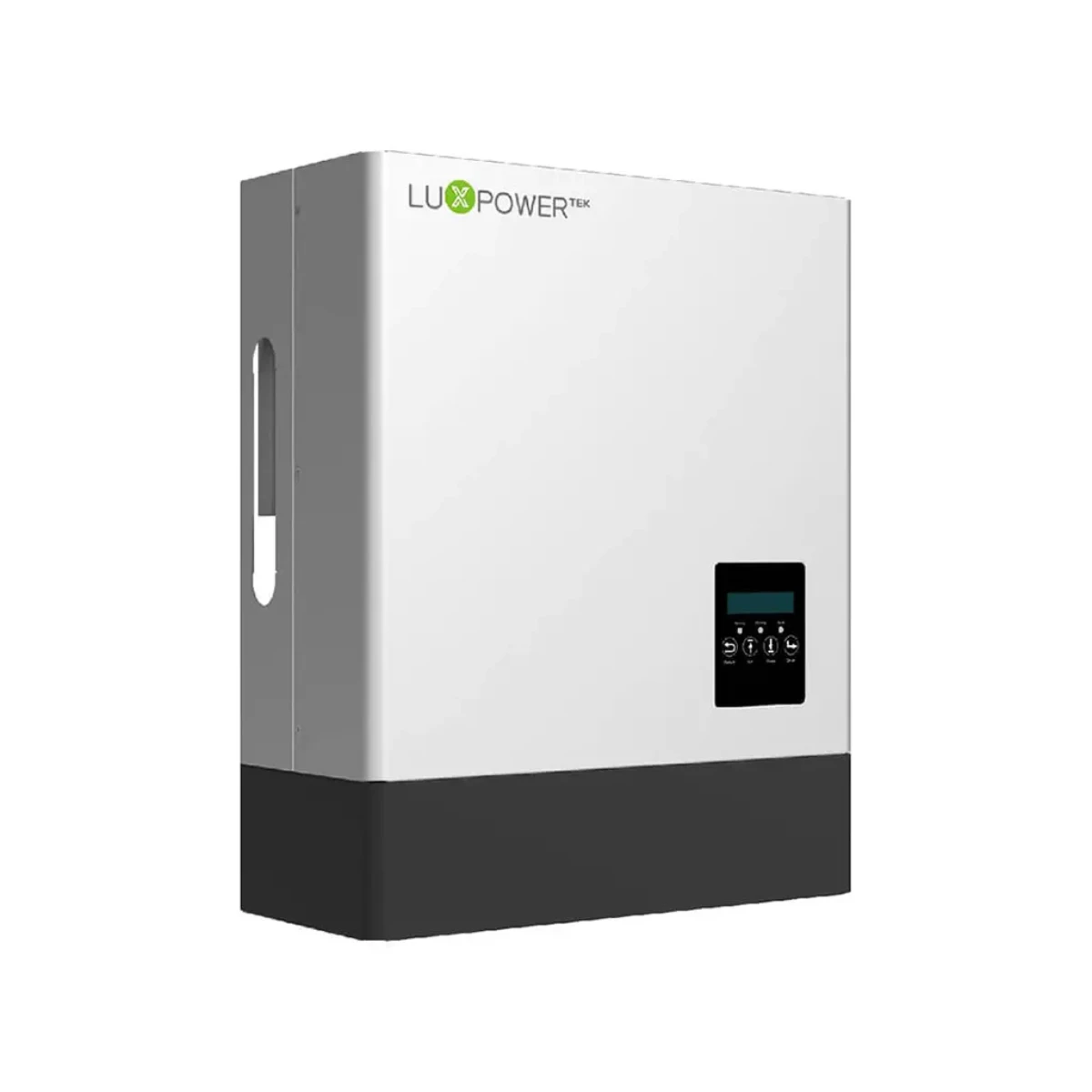

Lux Power 5KW LV Single Phase Hybrid Inverter

Lux Power 5KW LV Single Phase Hybrid Inverter

A recently developed off-grid inverter for solar and energy storage, the LXP Hybrid, is versatile enough to be installed in on-grid solar, off-grid solar, and backup systems. This inverter allows for a programmable and scheduled smart solar energy storage system, aiding in boosting your self-consumption of solar energy, safeguarding your home appliances during grid shortages, and optimizing your energy usage to reduce your overall energy bills.

Product Features:

• Maximum Efficiency: 97.5%
• Integrated DC Switch

• Transformerless Design
• Supports Paralleling
• Self-consumption mode: Solar power will be utilized to meet the household load initially; any surplus solar power will then be directed to charge the battery. Once the battery is fully charged, any excess solar power can be fed into the grid.
• Force charge and discharge mode: The Off-Grid Solar Inverter will charge or discharge the battery based on the user-set time parameters.
• Charge first mode: Solar power will be employed to charge the battery initially, followed by meeting the household load, and finally, any remaining power will be fed into the grid. This off-grid inverter mode is particularly suitable for areas where grid power supply is unreliable.
• The LXP Off-Grid Solar Inverter MG series supports parallel connection functionality.

Specifications:

• Nominal AC Output Power: 5000W
• Nominal AC Output Current: 25A
• Nominal AC Voltage: 230VAC (180VAC-270VAC)
• Nominal AC Frequency: 50Hz / 60Hz (45Hz-55Hz / 55Hz-65Hz)
• Power Factor: >0.99 @ Rated Power 0.8 Lagging – 0.8 Leading Adjustable
• Maximum DC Input Power: 8000W
• Nominal DC Input Voltage: 360VDC
• DC Input Voltage Range: 100VDC-550VDC
• MPPT Voltage Range: 120VDC-500VDC
• Start Voltage: 140VDC
• Number of MPP Trackers: 2
• Maximum DC Input Current: 12.5A / 12.5A
• Compatible Battery Type: Lithium-ion / Lead-Acid
• Maximum Charge / Discharge Current: 80A / 80A
• Maximum Charge / Discharge Power: 5000W / 5000W

Important

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.
