Solis Energy Storage 5kW Hybrid S5 Inverter

Solis 5kW Hybrid S5 Inverter with DC switch - Datalogging stick is included

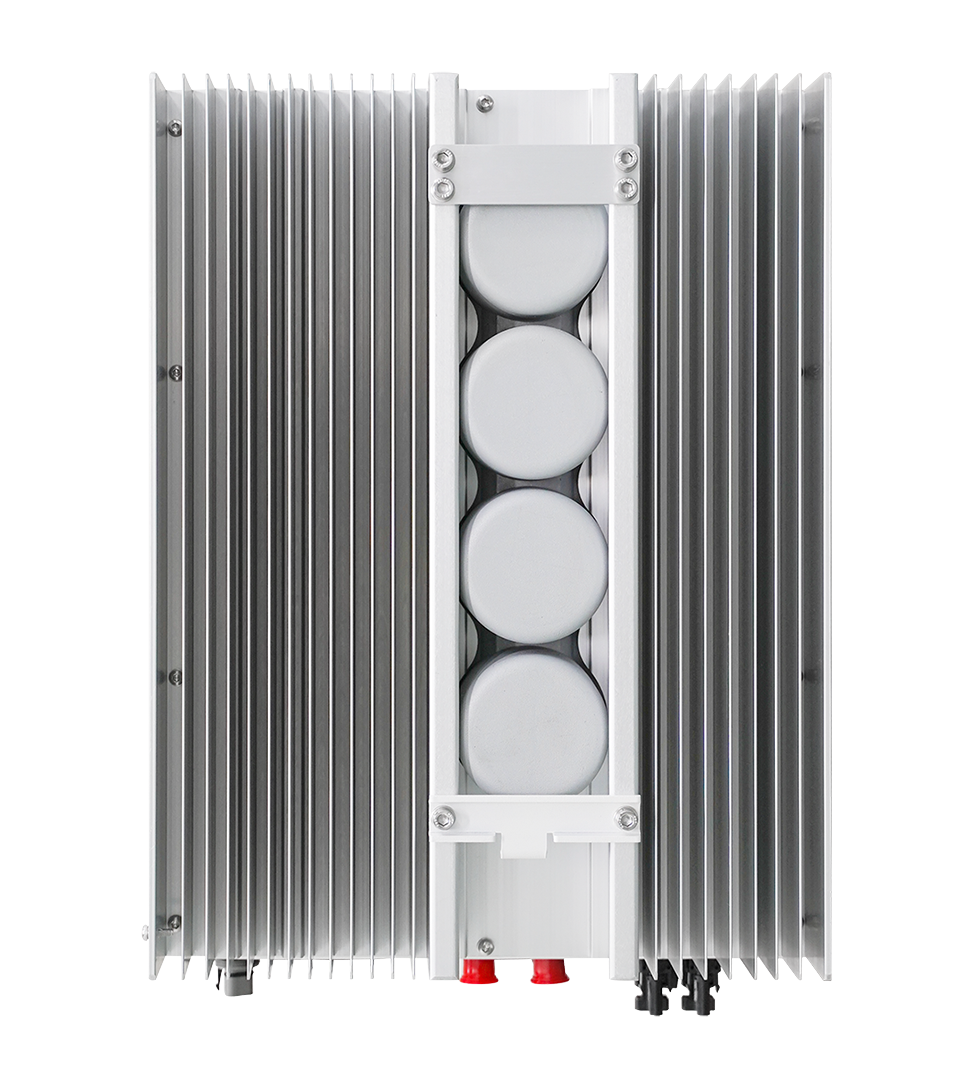

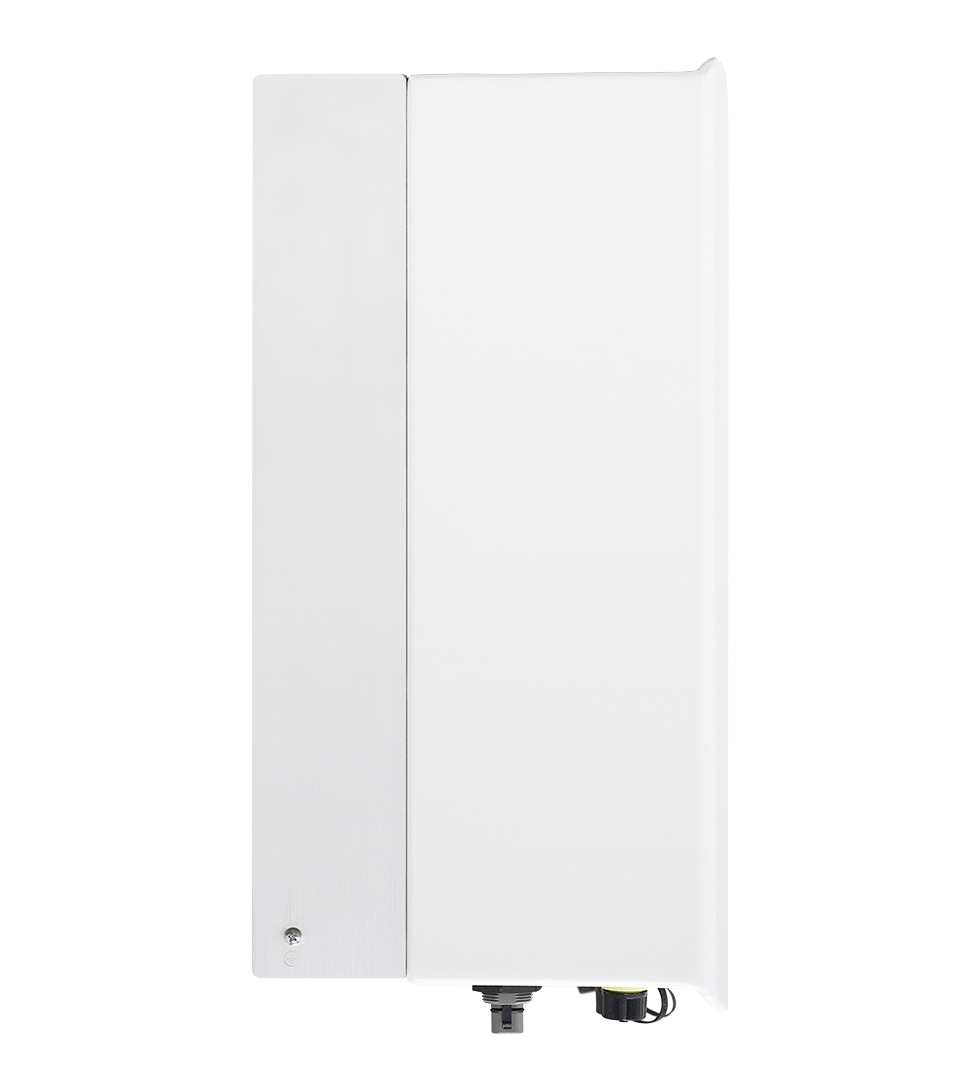

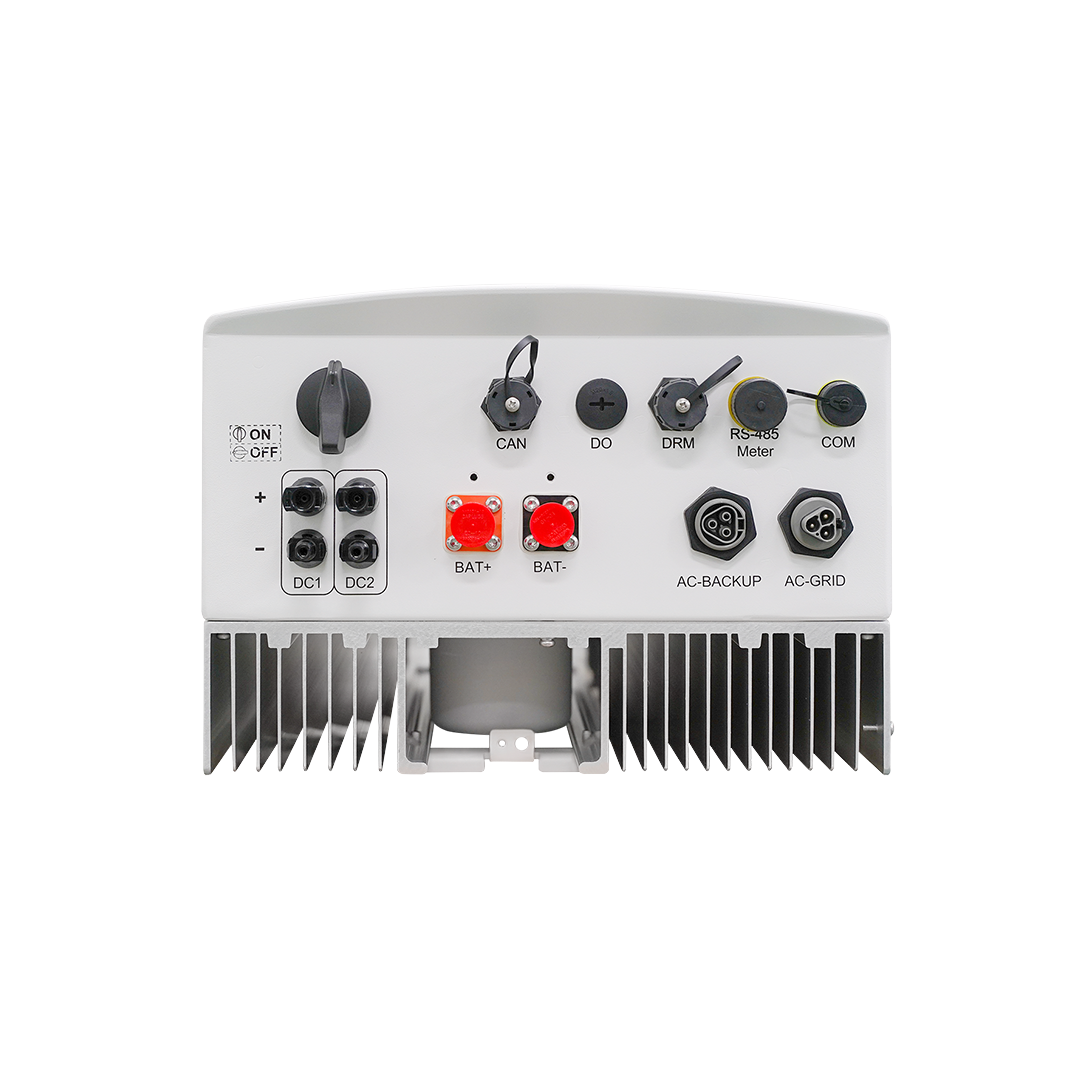

The Solis Energy Storage 5kW Hybrid S5 Inverter, Single-phase, is a high-efficiency power inverter capable of a 97.8% maximum efficiency rating. Its 24V DC switch ensures quick, safe shut-off, while its IP65 rating ensures superior protection from dust and water. The inverter is designed for maximum performance, offering 5kW of power output for residential and commercial applications.

Product Features

• Large 8000W MPPT - PV input string current of 15A at 600V.
• Quite fanless design and IP65.
• 100A charge/discharge current.
• 24-hour intelligent energy management via Solis Cloud.
• Uninterrupted power supply with less than 20ms reaction time.
• 6kW on grid AC port, 5kW on off-grid back-up port.
• Comes with an energy meter, CT and inverter to battery fuse cables.
• 5-year standard warranty, extendable up to 10-years

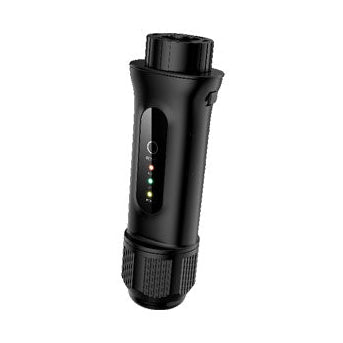

• The Datalogging stick is included
• Single-phase

NRS-097-2-1 approved but not yet on the CoCT Approved List.

This inverter is currently only compatible with the Pylontech US3000C/US2000C/UP5000 & the Freedom Lite Home & Business batteries.

Specification:

• Rated Power: - 5,000W
• Min PPT Voltage: - 120V
• Max PPT Voltage: - 520V
• DC Startup Voltage: - 120V
• DC Shutdown Voltage: - 90V
• Max Input Voltage: - 600V
• Max DC Power: - 8,000W
• Max AC Power (5 Minutes): - 6,600W
• Surge AC Power (1 Second): - 7,000W
• Max DC Current: - 30A
• Max DC Inputs: - 2
• Connector: - MC4
• Included Connectors: - 4
• Euro Efficiency: - 96.5%
• MPPT Quantity : - 2
• Has Integrated DC Switch: - Yes
• Warranty: - 5 years

Important:

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and it's Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Crystal Communications (Pty) Ltd may not have all the specific items or quantities of stock you have requested. Our dedicated Customer Service Team will use our extensive network to try to source the stock for you ASAP. You will be notified within 24 hours if we cannot source the required item, and a full refund will be processed on your order. Should you wish to contact us directly, please call 0118670488 or email sales@crystalcom.co.za

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact
representation of the product.
