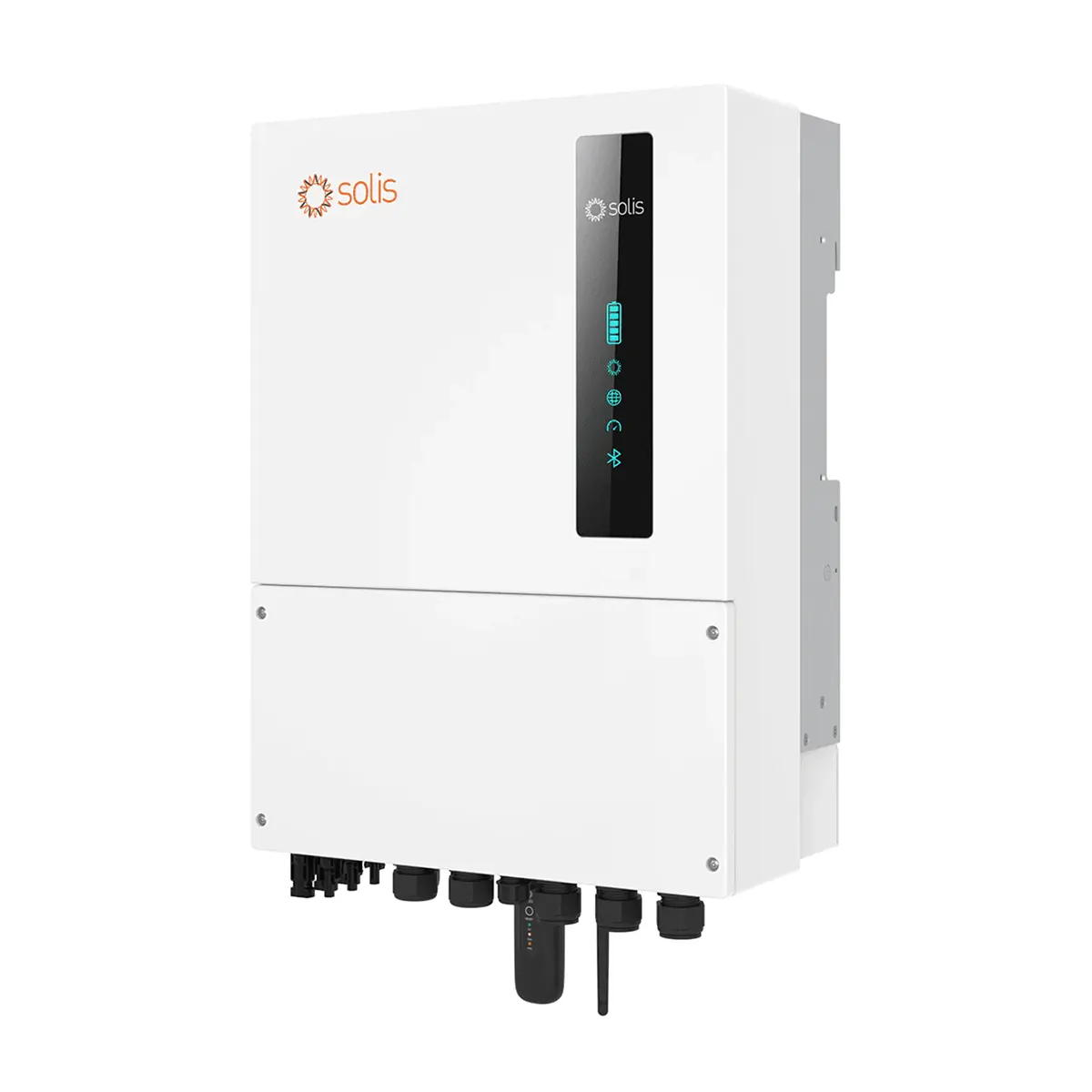

Solis S6 Pro 5kW Advanced Hybrid Inverter

Solis S6 Pro 5kW Advanced Hybrid Inverter - SOL-S6-EH1P5K-L-PRO

Introducing the Solis S6 Pro 5kW Advanced Hybrid Inverter, a smart and robust solution for today's solar market. With flexible single-phase or three-phase connections and the ability to support up to six units for a powerful 30kW backup, it ensures uninterrupted power supply during outages. The intuitive LED display, automatic generator integration, and real-time energy management make it a convenient and reliable investment, backed by a 5-year warranty extendable to 10 years.

Product Features:

• Generator connectivity with multiple input methods and automatic generator On/Off control
• Automatic UPS switching
• 10 second 200% surge power backup overload capability
• 6 customisable charge/discharge time settings
• Up to 112A max charge/discharge current
• Compatible with lead-acid and lithium batteries, with multiple battery protection features
• Supports peak shaving control in both "self-use" and "generator" mode

Specifications:

Input DC (PV side)

• Recommended max. PV power: 8 kW
• Max. input voltage: 600 V
• Rated voltage: 330 V
• Start-up voltage: 90 V
• MPPT voltage range: 90-520 V
• Max. input current: 16 A / 16 A
• Max. short circuit current: 24 A / 24 A
• MPPT number/Max. input strings number: 2/2

Input AC (Grid side)

• Input voltage range: 187-253 V
• Max. input current: 32 A
• Frequency range: 45-55 Hz / 55-65 Hz

Output AC (Grid side)

• Rated output power: 5 kW
• Max. apparent output power: 5.5 kVA
• Rated grid voltage: 220 V / 230 V
• Rated grid frequency: 50 Hz / 60 Hz
• Rated grid output current: 22.7 A / 21.7 A
• Max. output current: 25 A

Battery

• Battery type: Li-ion / Lead-acid
• Battery voltage range: 40-60 V
• Max. charge / discharge power: 5 kW
• Max. charge / discharge current: 112 A
• Communication: CAN/RS485

Physical

• Dimensions (W*H*D): 406*560*205 mm
• Weight: 24 kg
• Ingress protection: IP66
• Cooling concept: Natural convection

Important

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.
