SRNE All-In-1 Vertical Energy Storage System with 5kW Inverter and 5.12kWh Battery

SRNE All-In-1 Vertical Energy Storage System with 5kW Inverter and 5.12kWh Battery - SR-EOV05S-220

The SRNE All-In-1 Vertical Energy Storage System seamlessly blends intelligence with user-friendly design for efficient power management.

Boasting a 5kW inverter and a 5.12kWh LiFePO4 battery, this all-in-one system allows real-time data monitoring through Wi-Fi and a large LCD screen, ensuring transparency and control.

Its plug-and-play feature eliminates the need for matching and commissioning, making installation hassle-free.

With a slim width of just 13cm, it saves valuable space in your home. Easily upscale with the capability to add up to four batteries in parallel, expanding the capacity to 20.48kWh

Product Features:

• Plug-and-play, eliminates the clutter of wires
• Support Wifi view real-time data through APP
• Large LCD screen with real-time data
• Support Off-grid/Hybrid/On-Grid output
• Multiple charge and discharge modes available
• High-quality lithium iron phosphate cells

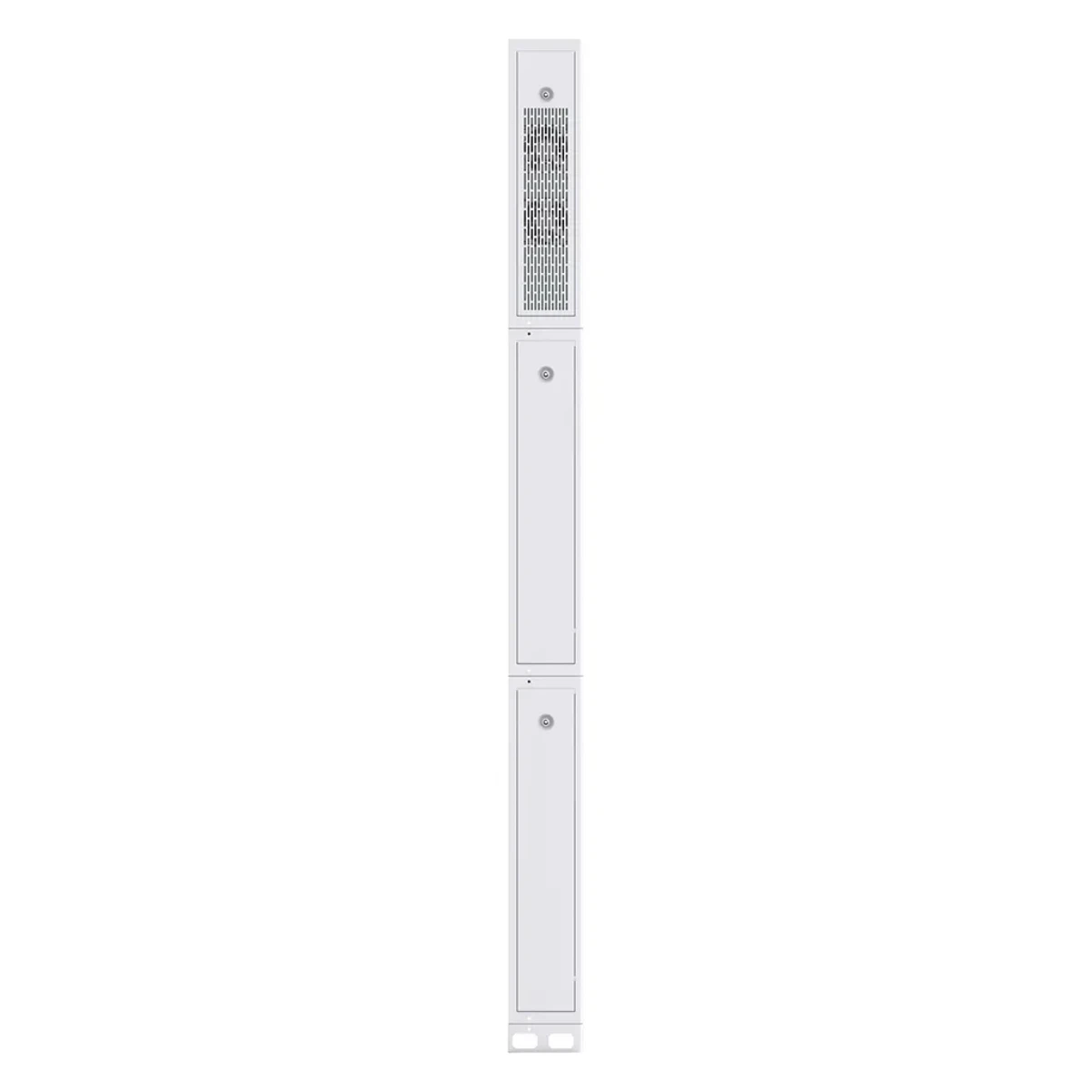

• Min. width of just 13cm, saving space in the home
• Up to 4 batteries in parallel expand to 20.48kWh
• Up to 2 systems in parallel with double storage & output

Inverter Module Specifications:

• Inverter Output:
• Rated Output Power: 5,000W
• Max. Peak Power: 10,000VA
• Wave Form: Pure Sine Wave
• Output Mode: Off-grid/Hybrid/On-grid
• Battery:

• Max. Solar Charging Current: 100A
• Max. Grid/Generator Charging Current: 60A
• Solar Input
• Solar Charge Type: MPPT
• Max. Solar Array Power: 5,500W
• Max. Solar Open Circuit Voltage: 500Vdc
• General

• Dimensions: 500*555*130mm
• Weight: 27kg
• Noise: <60dB
• Cooling Method: Internal Fan
• Warranty: 2 Years

Battery Module Specifications:

• Battery Power: 5.12kWh
• Rated Voltage: 51.2V
• Rated Capacity: 100Ah
• Lifespan: 6000 Cycles (80%DOD,0.5C,25°C)
• Max. Parallel Capacity: 4 units（up to 20.48kWh）
• Dimension: 600*555*130mm

Important

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact
representation of the product.
