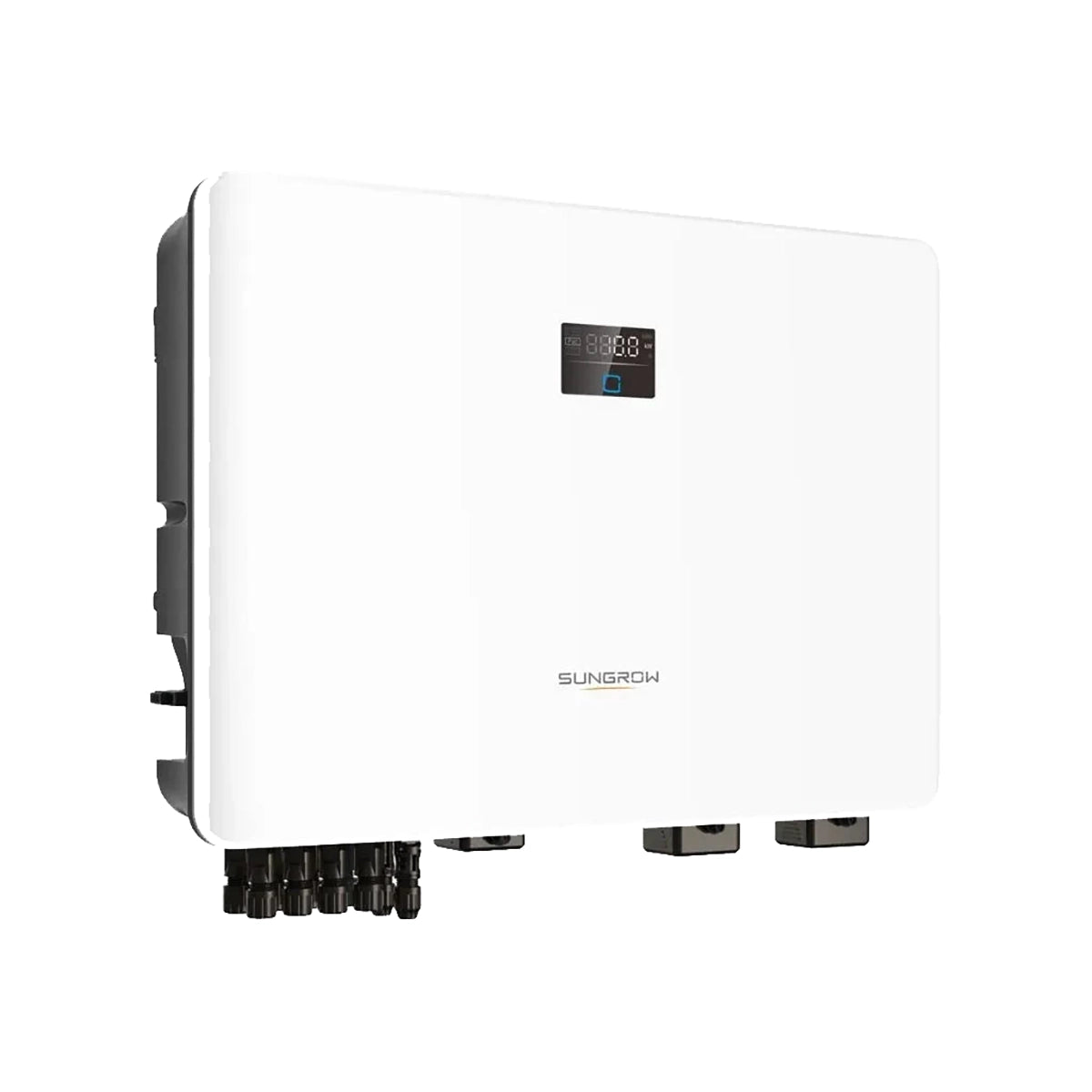

Sungrow 10kW Single Phase Hybrid Inverter

Sungrow 10kW Single Phase Hybrid Inverter

Residential Hybrid Single Phase Inverter

Product Features:

• 200%DC/AC PV input 16A*4MPPTs
• Ideal for both new installation and retrofit scenario
• Built-in smart PID recovery function
• Real time data (10 seconds refresh sample)
• 24 / 7 live monitoring both online and with integrated display
• Online IV curve scan and diagnosis
• Seamless transition to backup mode, for protection against power outages
• Fast Charging or discharging, enabling higher self-consumption results
• Built-in EMS with advanced customization
• Plug and play installation
• iSolarCloud monitoring available on App and Web
• Whole home backup available

Specifications:

• Rated AC output power: 10,000 W
• Max. AC output apparent power: 10,000 VA
• Max. AC output current: 45.5 A
• Recommended max. PV input power: 20,000 Wp
• Min. PV input voltage / Startup input voltage: 40 V / 50 V
• Rated PV input voltage:  360 V
• MPP voltage range: 40 V – 560 V
• No. of independent MPP inputs: 4
• No. of PV strings per MPPT: 1 / 1 / 1 / 1
• Weight: 29 kg
• Dimensions ( W * H * D ): 605 mm * 435 mm * 181 mm

Important

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact
representation of the product.
