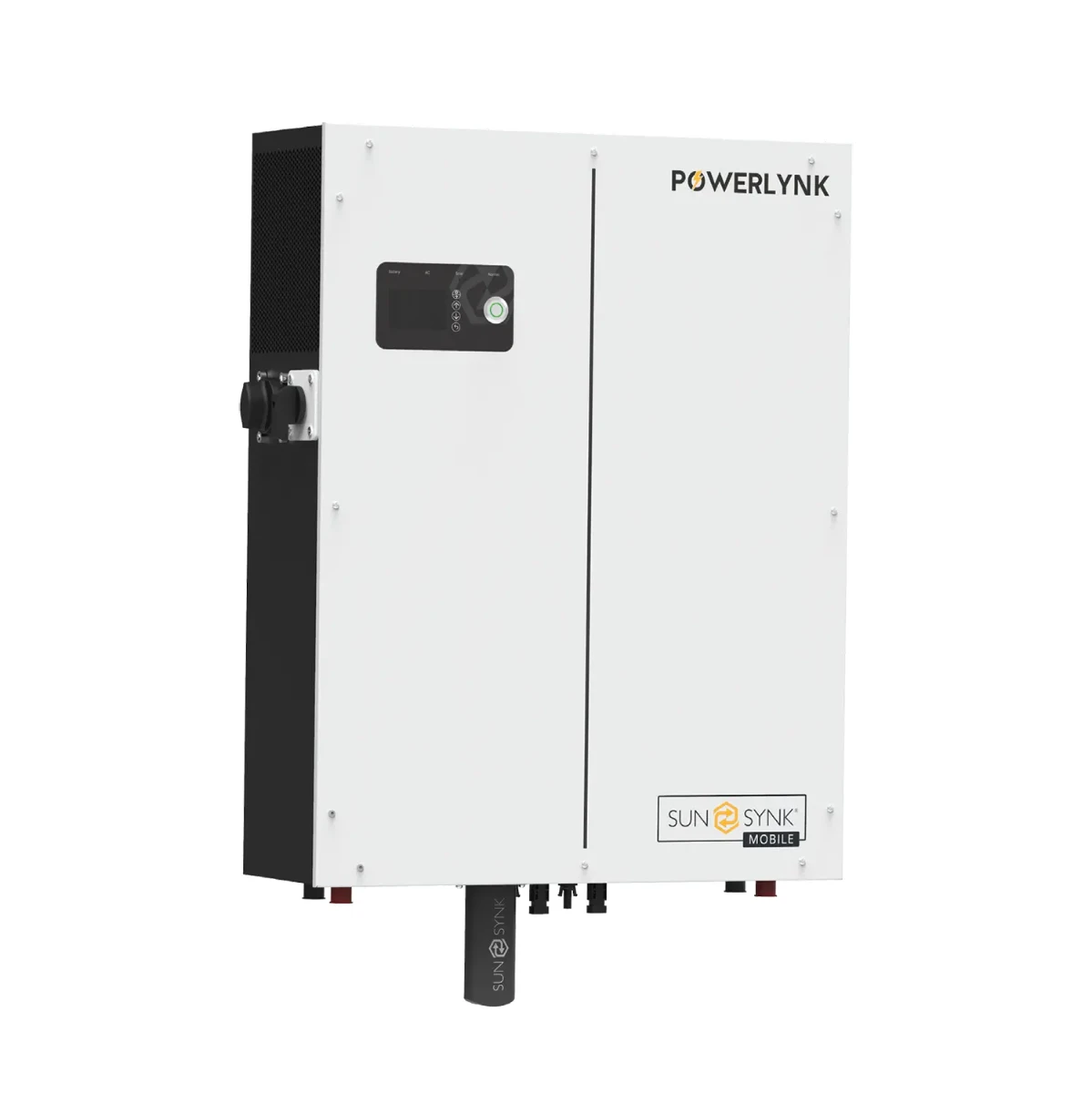

Sunsynk Powerlynk X 3.6kW Inverter with 3.84kWh Battery Pack

POWERLYNK X

Sunsynk Powerlynk X 3.6kW Inverter with 3.84kWh Battery Pack

Masterfully crafted to simplify and speed up installation, allowing for more efficient planning and implementation of large volume roll outs in new house builds or retrofits.
The dedicated Sunsynk Connect platform enables full control, visibility, and access to the system, making site-specific customisation easy.
The Powerlynk comes complete with everything you need to install this cutting-edge storage solution. In-built connection points give access to the Load, Grid, CT, and Wi-Fi data logger ports, making it a true "plug and play" system.

From the pre-set factory settings to the in-built connection ports, the Powerlynk has been designed with convenience and hassle-free installation in mind.

Battery Input Parameters:

• Supported Battery Type - LiFeP04
• Nominal Battery Voltage - 51.2V
• Battery Input Voltage Range - 43.2V~57.6V
• Max. Charge Voltage - 60V (Configurable)
• Max. Charge Current - 60A (Configurable)
• Max. Discharge Current - 80A (Configurable)
• Battery Capacity - 3840Wh

PV String Input Parameters:

• Max. DC Input Power - 4500W
• Max. DC Input Voltage - 500W
• MPPT Voltage Range - 120V~450V
• Start-Up Voltage - 150V
• Max. Input Current - 12A X 2

AC Output Parameters (Back-Up) (Feed to Essential Load):

• Max. Output Power - 3600W
• Max. Output Apparent Power - 3600VA
• Peak Output Apparent Power - 7200VA
• Max. Output Current - 16A
• Nominal Output Voltage - 230Vac
• Nominal Output Frequency - 50Hz
• Max. Bypass Current - 40A
• Shift Time (Bypass and Inverter) - 10ms
• Output THD (Resistor Load) - <3%

AC Input Parameter (On-Grid):

• Max. Input Power - 3600W
• Max. Output Power (Feed to Home Load) - 3600W
• Max. Apparent Input Power - 3600VA
• Max. Apparent Output Power - 3600VA
• Nominal Input / Output Voltage - 230Vac
• Nominal Input / Output Frequency - 50Hz
• Max. Bypass Current - 40A
• Shift Time (Bypass and Inverter) - 10ms

Dimensions:

• Size (H x L x W mm) - 700.6 X 543.6 X 182.2
• Net Weight - 51.7Kg

Protection:

Integrated   -   Battery Over-Charge Protection, Battery Low-Voltage
Protection, Over-Temperature Protection,
Output Short-Circuit Protection, Output Over-Voltage
Protection, Output Overload Protection.

 Product Notes:

Installations with Sunsynk products now need to be registered to gain full activation of the warranty.  https://www.sunsynk.org/warranty

Sunsynk Training Material,  https://www.sunsynk.org/post/training-manuals

Important

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.
