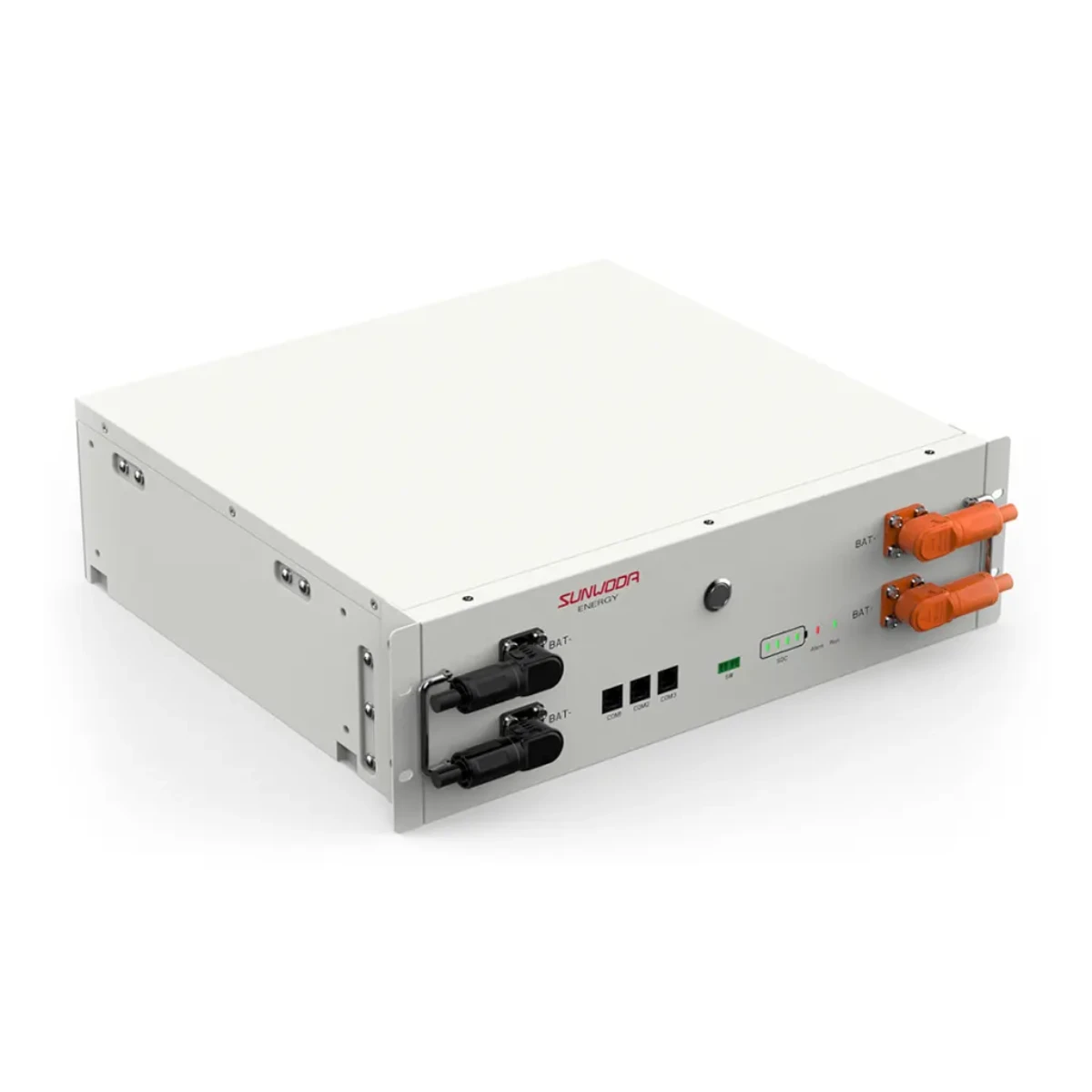

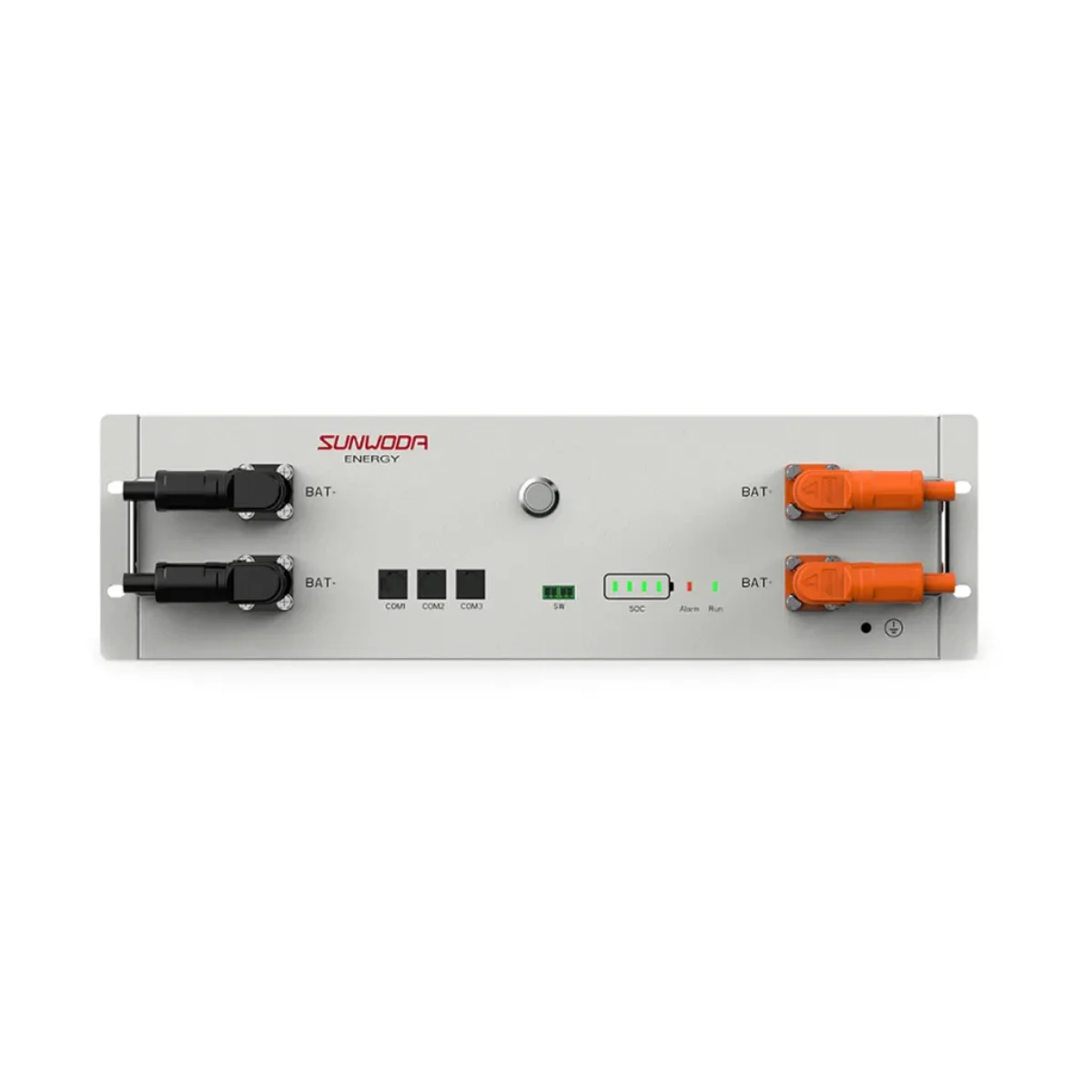

Sunwoda Atrix-5 Lithium Ion Battery 5.12KWH 51.2V 100AH 1C Rack Mount

Sunwoda Atrix-5 Lithium Ion Battery 5.12KWH 51.2V 100AH 1C Rack Mount

Sunwoda Atrix series adopts a flexible modular design, which can be expanded from 5 kWh of a single module to 40 kWh of 8 battery modules.

Product Features:

• Flexible application: Suitable for rack or cabinet
• Easy to install: Compact and Light
• Excellent low temp. performance (Optional): Operate at -10℃ without any limitation and attenuation
• Battery APP (Optional): Real-time monitoring, remote maintenance and upgrades

Specifications:

• Nominal energy (Usable energy 100%DOD): 5kWh
• Rated voltage: 51.2V
• Charge/discharge cut-off voltage: 44.8V~55.2V
• Rated charge/discharge current: 50A/50A
• Max. charge/discharge current: 100A/100A
• Scalability: Max. 8 in parallel, Max. 40kWh
• Weight: 45kg
• Enclosure rating: IP20

Important

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact
representation of the product.
