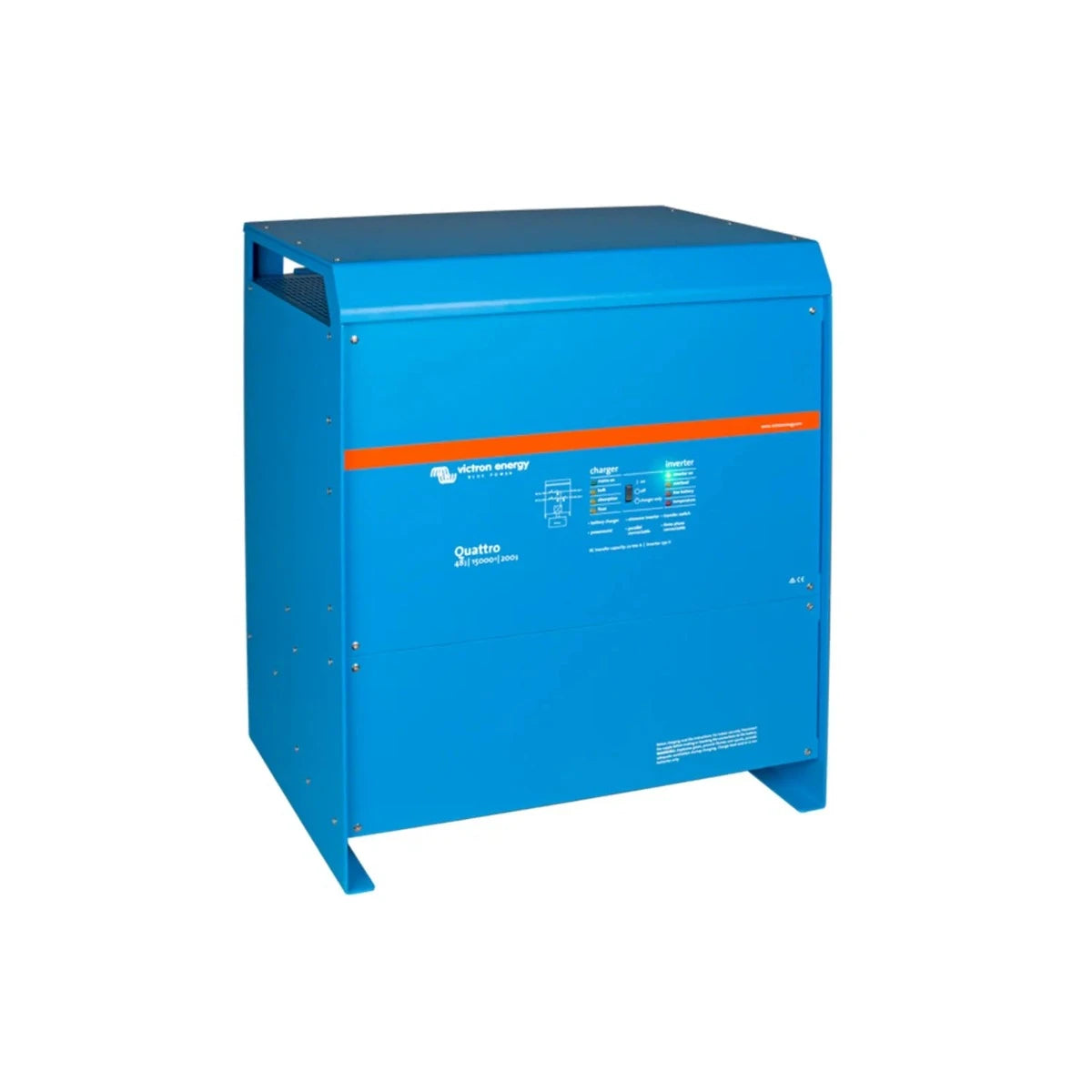

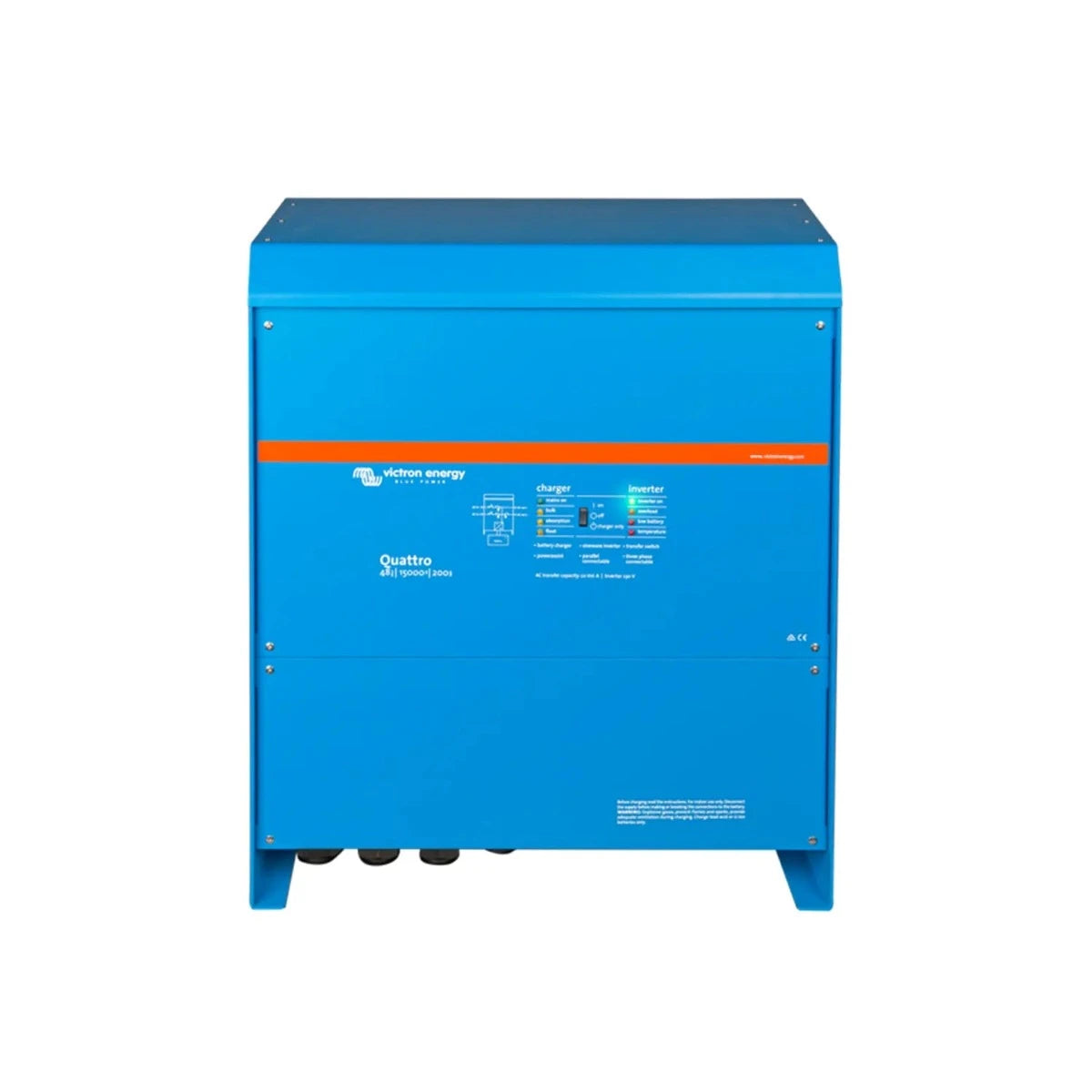

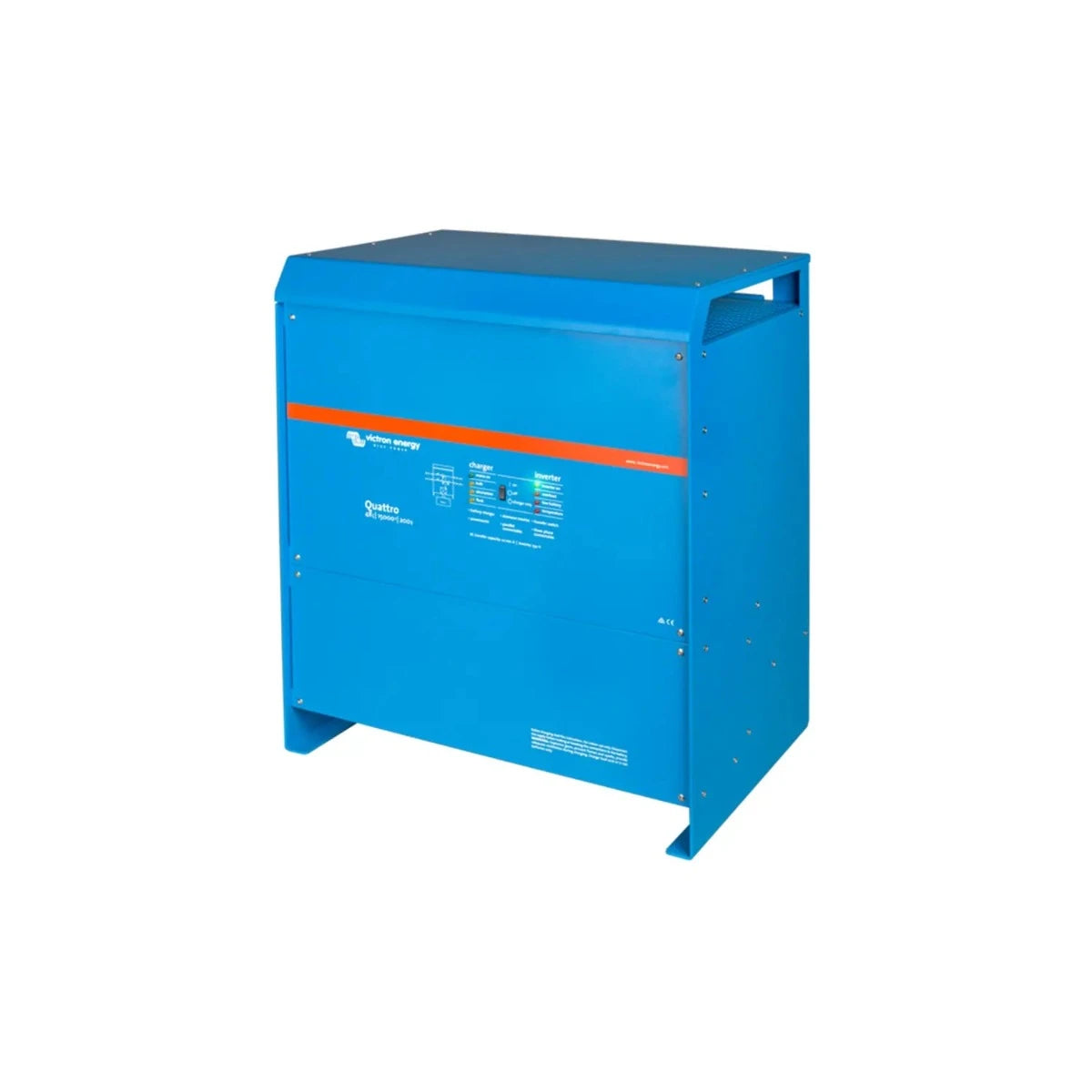

Victron Quattro 48/15000/200/100/100 12kW 48V Inverter/Charger

Victron Quattro 48/15000/200/100/100 12kW 48V Inverter/Charger

Victron’s Quattro model combines both inverter and charger functionalities. Additionally, it can accept two AC inputs and automatically connect to the active source. This is a top-class design product with a rigid structure that makes it suitable for industrial applications.

Product Features:

• It has two AC inputs which can be used for two different AC sources like grid and generator.
• It’s a transformer-based inverter that is suitable for industrial applications such as running motors and pumps.
• Less than 20 milliseconds reconnection time. Seamless, uninterrupted change over between alternate power sources.
• Automatic battery power supply to compensate where peak power is required.
• Compatible with a range of different battery models (Please see attached compatibility list document).
• Can be used for AC coupling applications with various grid-tie inverter models.
• The unit is capable of parallel operation:-
• 6 x 15kVA single/split phase summing up to 90kVA
• 12 x 15kVA three-phase, (4 units per phase) summing up to 180kVA
• Remote monitoring and control using the VRM portal https://vrm.victronenergy.com/landingpage

Specifications:

• PowerControl / PowerAssist - Yes
• Integrated Transfer switch - Yes
• AC inputs (2x) - Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz
• Maximum feed through current (A) - 2 x 100A
• Input voltage range (V DC) - 38 – 66V
• Output (1) Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0,1%
• Cont. output power at 25°C (W) - 12000W
• Peak power (W) - 25000W
• Maximum efficiency - 96%
• Charge voltage 'absorption' (V DC) - 57.6V
• Charge voltage 'float' (V DC) - 55.2V
• Battery temperature sensor - Yes

Important

Please ensure the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions due to incorrectly installed systems.
