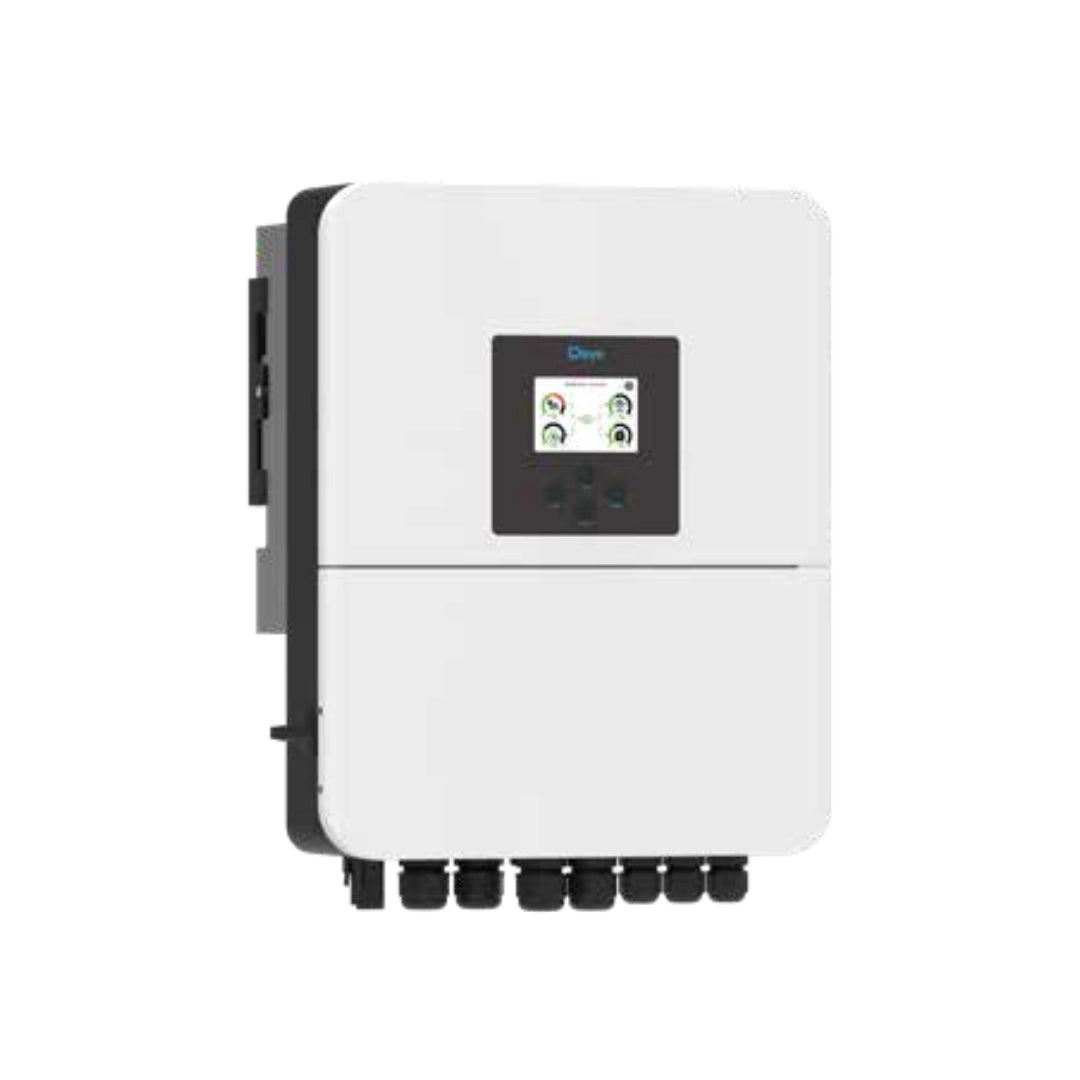

Deye 6Kw Single Phase Hybrid Inverter

Deye 6Kw Single Phase Hybrid Inverter – VOC: 500V Battery

The Deye 6kW Single Phase Hybrid Inverter (VOC: 500V) is a versatile and powerful solution for residential and light commercial solar energy systems. Designed to integrate seamlessly with both new and existing installations, this inverter supports low-voltage 48V batteries and AC coupling for retrofitting. With a robust 135A max charging/discharging current and compatibility with both lithium and lead-acid batteries, it provides flexible energy management and reliable backup power.

Product Features:

• Compatible with low-voltage (48V) battery systems
• AC coupling for retrofitting existing solar systems
• Max. 16 units can be connected in parallel for both on-grid and off-grid operation
• Max. charging/discharging current of 135A
• 4 operation modes for battery charging and discharging
• Supports input from diesel generators or other external sources


Specifications:

Battery Input

• Battery Type: Lithium / Lead-acid
• Battery Voltage Range: 40~60V
• Max. Charging/Discharging Current: 135A

• Charging Strategy for Li-ion Battery: Self-adaption to BMS

PV String Input

• Max. PV Input Power: 9600W
• PV Input Voltage: 500V
• MPPT Number / Max. Input Strings: 2/1+1
• Max. Input Current: 18+18
• Max. Short-Circuit Current: 27+27
• MPPT Voltage Range: 150-425

AC Input/Output Data

• Rated AC Input/Output Active Power (W): 6000
• Max. AC Input/Output Apparent Power (VA): 6600
• Rated AC Input/Output Current (A): 27.3/26.1
• Max. AC Input/Output Current (A): 30/28.7
• Max. Continuous AC Passthrough (grid to load) (A): 40
• Peak Power (off-grid) (W): 2 times of rated power, 10s
• Rated Input/Output Voltage/Range (V): 220/230    0.85Un-1.1Un
• Rated Input/Output Grid Frequency/Range(Hz): L+N+PE

Efficiency

• Max. Efficiency: 97.6%
• Euro Efficiency: 96.5%
• MPPT Efficiency: >99.9%
