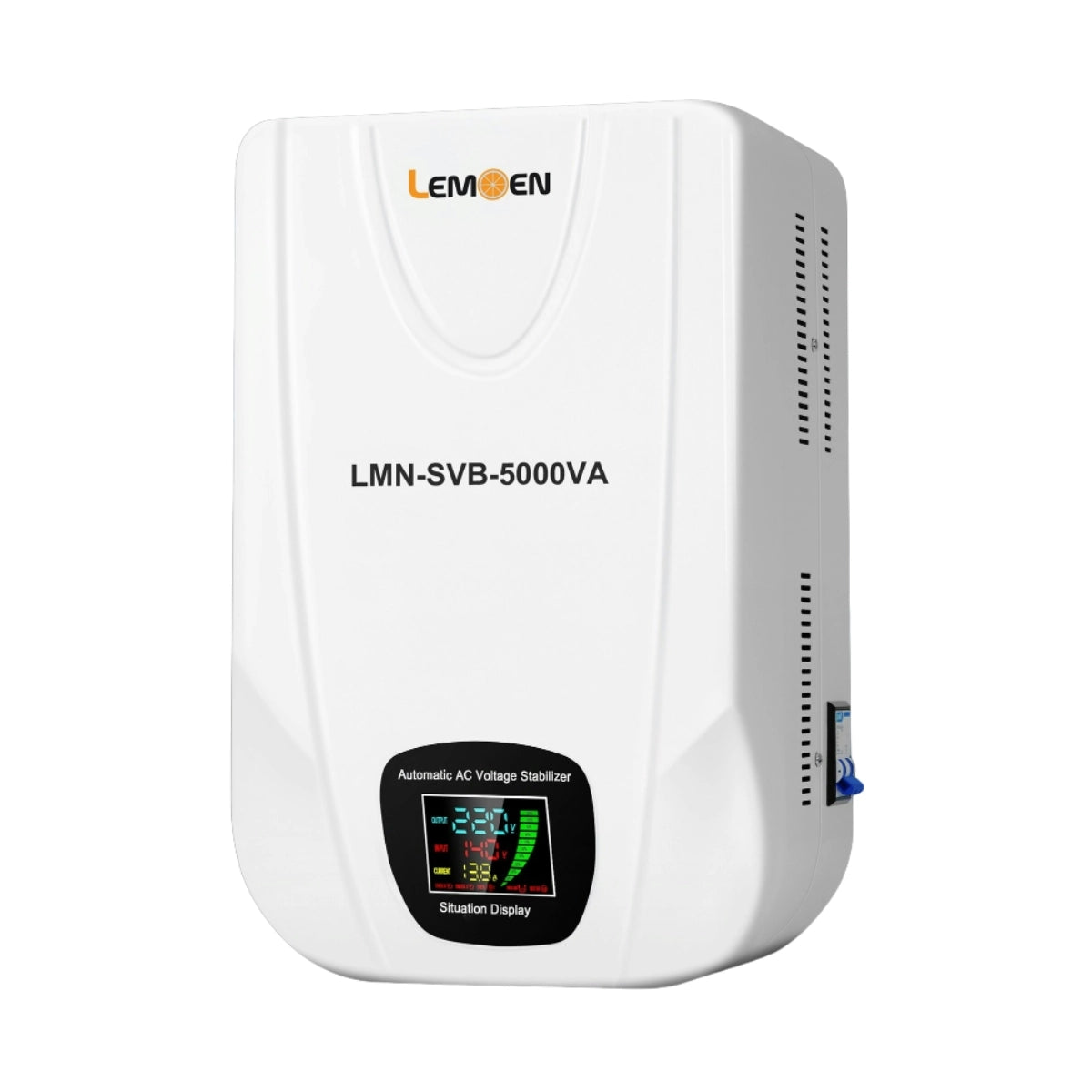

Lemoen 5KVA Single Phase Servo Type Voltage Stabilizer

Lemoen 5KVA Single Phase Servo Type Voltage Stabilizer

R 3,698.00
R 3,698.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Lemoen: 5KVA Single Phase Servo Type Voltage Stabilizer Input: 80-260VAC Output: 220VAC 50/60HZ

Ensure the safety and longevity of your electrical appliances with our Automatic Voltage Stabilizer. Designed to deliver stable output voltage regardless of fluctuations in input supply, this stabilizer is ideal for homes, offices, and industrial setups. It uses a precision voltage-regulating system controlled by a servo motor, which automatically adjusts the coil turns ratio to maintain consistent voltage. By continuously monitoring voltage and load changes, it protects your devices from damage caused by overvoltage or undervoltage conditions.

Product Features:

  • Automatic Voltage Stabilization – Maintains stable output voltage for sensitive appliances.
  • Servo Motor Operation – Adjusts the voltage regulator carbon brush position for precise voltage control.
  • Smart Control Circuit – Samples, compares, and amplifies voltage deviations for automatic correction.
  • Voltage Regulating Circuit – Automatically adjusts coil turns ratio to maintain consistent output.
  • Device Protection – Prevents damage from overvoltage, undervoltage, and load fluctuations.
  • Wide Application – Suitable for homes, offices, and industrial equipment.
  • Reliable & Durable – Built for long-term operation with minimal maintenance.
  • Smooth & Stable Output – Reduces voltage spikes and dips, ensuring appliance safety.

PRODUCT SPECIFICATIONS

- Rated Capacity: 5 KVA
- Input Voltage: Single phase 80–250V (customizable)
- Output Voltage: Single phase 220V ±3%
- Output Waveform: Sine wave, no additional waveform loss
- Over-Voltage Protection: 246V ±4V
- Under-Voltage Protection: 186V ±4V (regularly not set)
- Load Power Factor: 0.8
- Insulation Resistance: Single phase >5MΩ
- Protective Functions: Over-voltage, over-temperature, overload protection
- Adjust Time: ≤1s (for 10% voltage change)
- Delay Time:10s
- Insulation Level: E Class
- Working Efficiency: ≥90%
- Working Frequency: 50/60Hz
- Overload Capacity: 2× rated current for 40 seconds
- Ambient Temperature: -15℃ ~ +40℃
- Temperature Rise: ≤60K
- Dielectric Strength: 1500V/min, no flashover
- Protection Degree: IP20
- Working Environment: No corrosive gas, moderate temperature, low humidity
- Display: LCD
- Coil Material: 1 copper regulating coil + 1 compensating coil
- Cooling Method: AN/FN
- Product Size (L×D×H): 41×28×19 cm
- Package Size (L×D×H): 46.5×34×25 cm
- Net Weight: 15 kg
- Gross Weight: 15.9 kg

IMPORTANT NOTICE

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and
installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to
local wiring regulations and standards. Crystal Communications and its Supplier will not be held
liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual
needs and requirements may differ, it is recommended that our sales team is contacted for any
specific questions before a purchase is made to ensure that the item being purchased will satisfy
your requirements.

The images shown are for illustration purposes only and may not be an exact
representation of the product.

Crystal Communications (Pty) Ltd may not have all the specific items or quantities of stock you have
requested. Our dedicated Customer Service Team will use our extensive network to try to source the
stock for you ASAP. You will be notified within 24 hours if we cannot source the required item, and a
full refund will be processed on your order. Should you wish to contact us directly, please call
0118670488 or email sales@crystalcom.co.za
