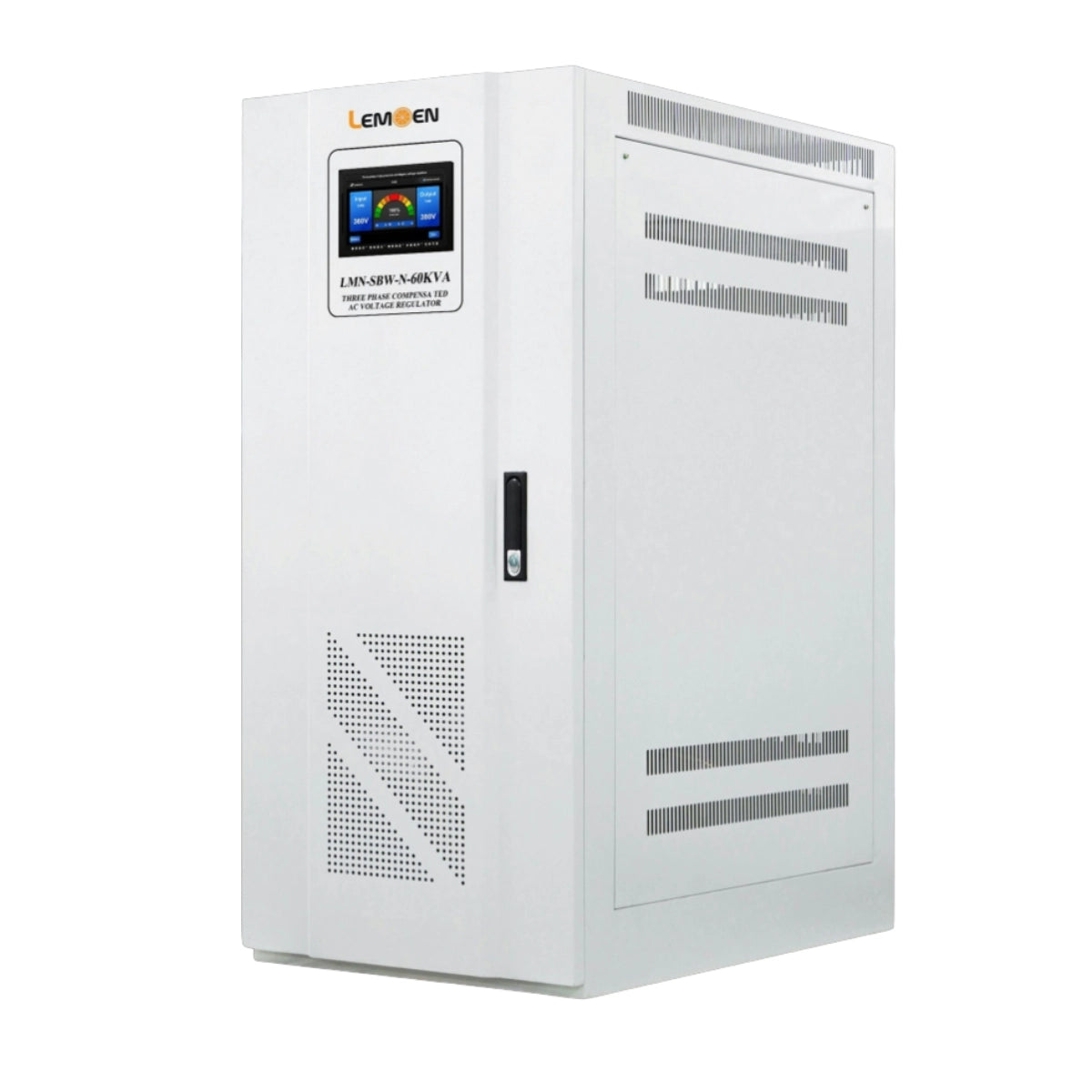

Lemoen 60KVA Three Phase Servo Type Voltage Stabilizer

Lemoen 60KVA Three Phase Servo Type Voltage Stabilizer

R 34,689.00
R 34,689.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Lemoen: 60KVA Three Phase Servo Type Voltage Stabilizer Input: 304-456VAC Output: 380VAC 50/60HZ (LMN-SBW-N-60KVA)

The Copper Column Voltage Stabilizer is a high-precision device designed to automatically regulate voltage and protect electrical equipment from fluctuations. Utilizing copper columns, electromagnetic principles, and mechanical structures, it ensures stable, reliable, and distortion-free output. The stabilizer works through a process of voltage sampling, detection, and servo-controlled adjustment, allowing the brush (copper column) to move and maintain optimal voltage levels. With its wide voltage regulation range, strong anti-interference capabilities, and adaptability to high-power loads, this stabilizer is ideal for industrial, commercial, and residential applications. Its simple design makes maintenance easy, while providing excellent performance at a competitive cost.

Product Features:

  • Automatic Voltage Regulation – Maintains stable output voltage despite input fluctuations.
  • Copper Column & Servo Motor System – Ensures precise and fast adjustment of output voltage.
  • Strong Anti-Interference Ability – Reliable performance even in environments with electrical noise.
  • Distortion-Free Output Waveform – Protects sensitive equipment from voltage irregularities.
  • Wide Voltage Regulation Range & High Accuracy – Supports a variety of devices and loads.
  • Adaptable to High-Power Loads – Suitable for industrial and heavy-duty applications.
  • Simple Structure & Easy Maintenance – Reduces downtime and maintenance costs.
  • Strong Environmental Adaptability – Operates reliably in varying temperatures and conditions.
  • High Cost Performance – Delivers excellent value for long-term use.

PRODUCT SPECIFICATIONS

- Capacity: 60 KVA
- Regulation Type: Centralized control regulation type
- Input Voltage: Three-phase AC 304V–456V (customizable)
- Frequency: 50–60Hz
- Rated Voltage: Three-phase AC 380V (customizable)
- Voltage Stabilization Accuracy: ±3%
- Response Time: ≤20ms
- Waveform Distortion: No additional waveform distortion
Efficiency: ≥98%
- Three-Phase Unbalance: Automatic three-phase voltage balance
- Communication Interface: Standard RS485
- Delay Output: Stabilizes voltage first before output to protect equipment
- Phase Loss Protection: Yes (automatic cut-off)
- Overload Protection: Electronic detection, output cut-off within 3 minutes if overloaded
- Over Current Protection: Double protection via electronic detection and circuit breaker
- Short Circuit Protection: Double protection via electronic detection and circuit breaker
- Bypass: Uninterrupted automatic bypass
- Delay Output (Grid Recovery): Output delayed for 5 seconds when power resumes
- Voltage Display: True RMS LCD for A, B, C phases and total (ΣABC)
- Current Display: True RMS LCD for A, B, C phases and total (ΣABC)
- Working Conditions: Voltage stabilization state / utility state
- Protection: Overvoltage, undervoltage, overload, and fuse breaking
- Operation Modes: Voltage stabilization mode and power supply mode
- Overload Capacity: 5× rated current for 1 second
- Interface: Intelligent panel for easy setting and parameter query
- Display Options: LCD display, touch screen optional
- Working Withstand Voltage: No breakdown within 1 minute at 3000V
- Ambient Temperature: -15℃ to +45℃
- Humidity: ≤95%, non-condensing
- Insulation Resistance: ≥5MΩ
- Product Size (W×D×H): 89×55×120 cm
- Net Weight: 193 kg (with wooden base)
- Package Size (W×D×H): 95×62.5×137 cm
- Gross Weight: 207.5 kg
- Color: Grey white
- Protection Class: IP20
- Cooling Method: Forced air cooling with intelligent speed regulation
