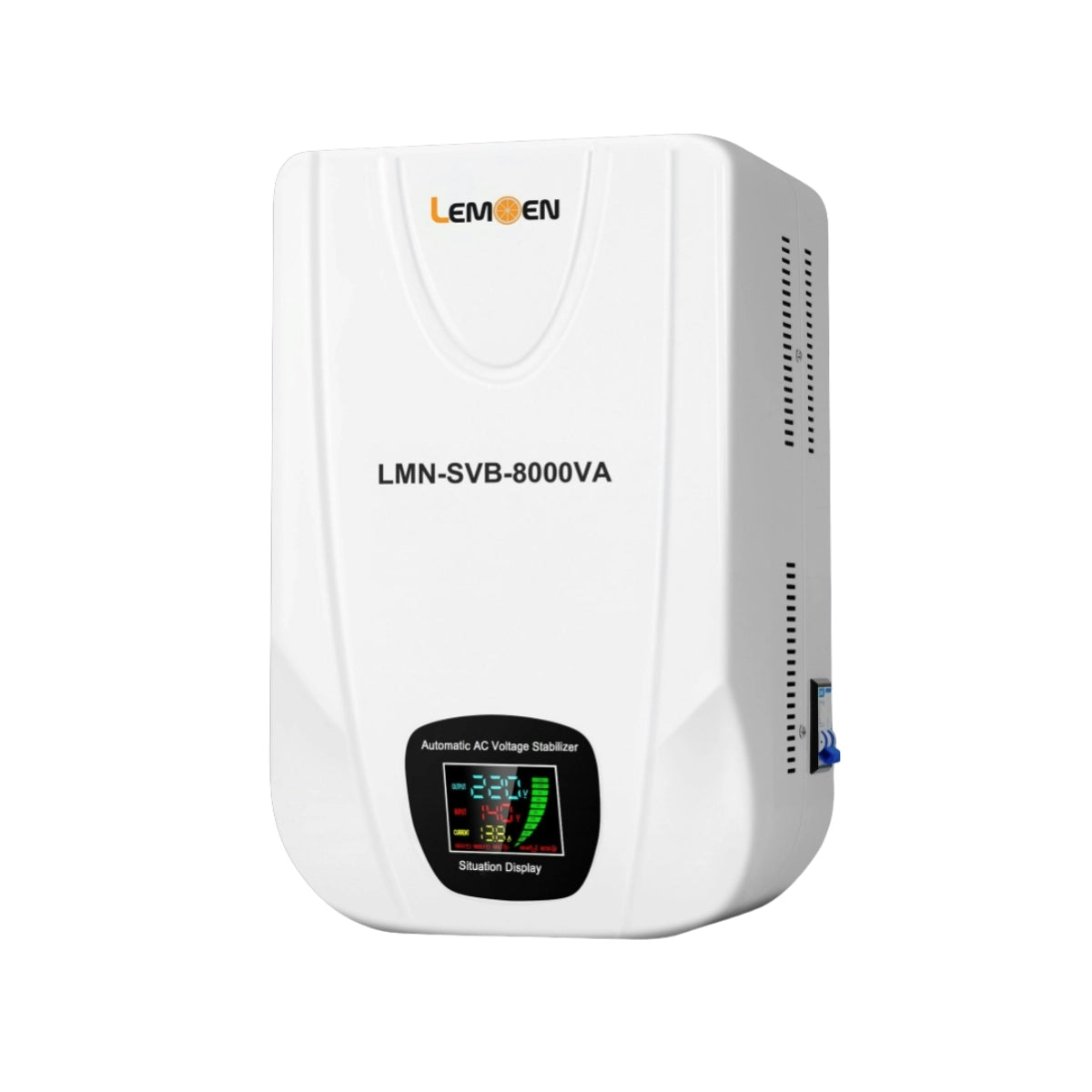

Lemoen 8KVA Single Phase Servo Type Voltage Stabilizer
Lemoen 8KVA Single Phase Servo Type Voltage Stabilizer
Couldn't load pickup availability
Lemoen: 8KVA Single Phase Relay Type Voltage Stabilizer Input: 80-260VAC Output: 220VAC 50/60HZ
The Automatic Voltage Stabilizer is designed to deliver a stable and reliable output voltage, protecting your equipment from fluctuations caused by inconsistent power supply. Built with a voltage regulating circuit, control circuit, and a servo motor, it ensures precise adjustment to maintain consistent voltage levels. Whenever the input voltage or load changes, the control system automatically detects the variation, compares it with the set standard, and drives the servo motor to adjust the carbon brush position. This continuous regulation guarantees stable output, extending the lifespan of your electrical devices and ensuring optimal performance.
Product Features:
- Stable Output Voltage – Automatically adjusts fluctuations to maintain consistent voltage.
- Intelligent Control Circuit – Samples, compares, and amplifies input changes for precision regulation.
- Servo Motor Driven – Ensures accurate movement of the voltage regulator carbon brush for smooth operation.
- Over-Voltage & Under-Voltage Protection – Safeguards equipment from harmful voltage extremes.
- High Efficiency – Provides reliable stabilization without excessive energy loss.
- Durable Construction – Built to handle continuous operation in demanding environments.
- Extended Equipment Life – Protects appliances and sensitive electronics from damage caused by unstable power.
PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
- Rated Capacity: 8 KVA
- Input Voltage: Single phase 80–260V (customizable)
- Output Voltage: Single phase 220V ±3%
- Output Waveform: Sine wave, no additional waveform loss
- Over-Voltage Protection: Output voltage 246V ±4V
- Under-Voltage Protection: Output voltage 186V ±4V (regularly not set)
- Load Power Factor: 0.8
- Insulation Resistance: Single phase ＞5MΩ
- Protective Functions: Over-voltage, over-temperature, overload protection
- Adjust Time: ＜1s (for 10% voltage change)
- Delay Time: ＜10s
- Insulation Level: E class
- Efficiency: ≥90%
- Working Frequency: 50/60Hz
- Overload Capacity: 2× rated current for 40 seconds
- Ambient Temperature: -15℃ to +40℃
- Temperature Rise: ≤60K
- Dielectric Strength: 1500V/min, no flashover
- Protection Degree: IP20
- Working Environment: No corrosive gas, no high temperature, not suitable for humidity
- Display: LCD
- Coil Material: 1 copper regulating coil + 1 compensating coil
- Cooling Method: AN/FN
- Dimensions (L×D×H): 44.5 × 30 × 20 cm
- Package Size (L×D×H): 50 × 36 × 27 cm
- Net Weight: 22.65 kg
- Gross Weight: 23.65 kg
