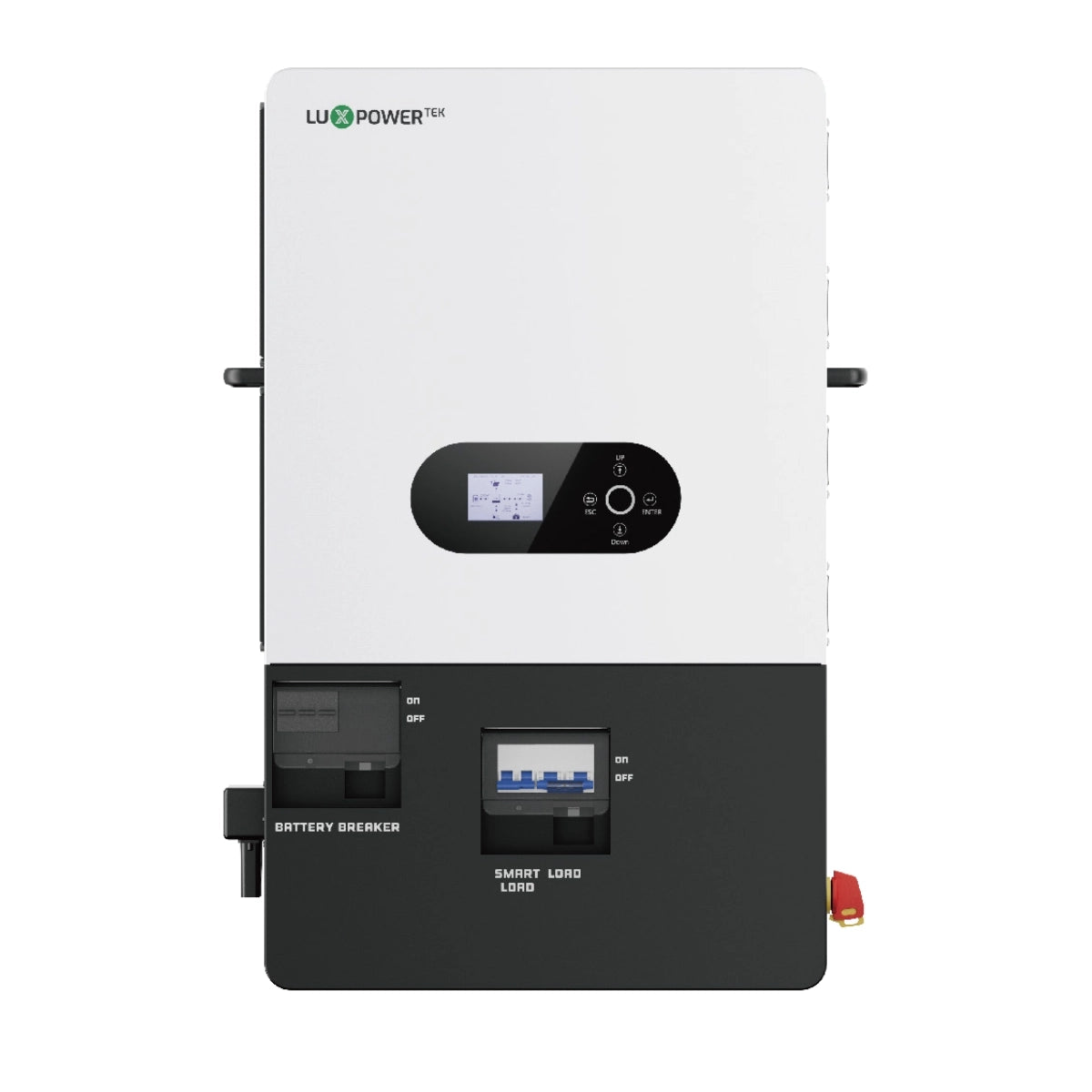

Lux Power Inverter 14Kw Off Grid ECO Hybrid Single Phase CT & WIFI Included

Lux Power: Inverter 14Kw Off Grid ECO Hybrid Single Phase CT & WIFI Included

The SNA-EU 14000 by Luxpower is a powerful and intelligent single-phase hybrid inverter designed to handle high-demand energy systems. With an impressive 14kW output power, support for up to 24kW PV input, and max charging/discharging currents of 250A, this inverter is built for performance and scalability. It supports up to 16 units in parallel and integrates seamlessly with solar, grid, generator, and battery sources—making it a versatile solution for both residential and commercial off-grid and backup applications.

Product Features:

• 2 MPPT with 4 Strings, Maximum 24kW PV input

• Maximum Charging / Discharging Current 250A

• Off-Grid application with 12kW Output Power

• Dual AC Ooutput Ports for multiple load connections

• Integrated Load and Battery Breaker

• PV, AC & Generator wake up Battery

• Supports up to 16 Units in Parallel

• Dedicated Generator Port

• Up to 19.2kW Gen / AC Coupling Input

• Auto Generator Start and Stop control

Specifications:

INPUT (PV DC)

• Max. PV input power (W): 24000 (12000/12000)
• Rated PV input voltage (V): 320
• Number of independent MPPT inputs: Charge: 2/(2:2)
• PV input voltage range (V): 100-480
• MPPT voltage range (V): 120-440
• Start-up voltage (V): 100

Battery

• Compatible battery type: Lithium-ion/Lead-Acid
• Rated battery voltage (V): 48/51.2
• Battery voltage range (V): 46.4~60/38.4~60
• Max. charging / discharging current (A): 250

Grid

• Rated AC voltage (V): 230
• AC Start-up Voltage: 90
• Acceptable Input Voltage Range (V): 130~280
• Rated AC  frequency (Hz): 50/600
• Rated AC input current (A): 100

Efficiency

• Max. efficiency: 93.5%
• Max. charging / discharging efficiency: 93.0%
• Max. MPPT efficiency: 99.0%

General

• Dimensions ( W*H*D mm ): 530*830*150mm / 17.72*25.59*5.9 in
• Weight: 43.5kg / 95.9lbs
• Ingress protection rating: IP20
• Operating environment temperature range(°C): 0~45
• Storage temperature range(°C): -15~60
