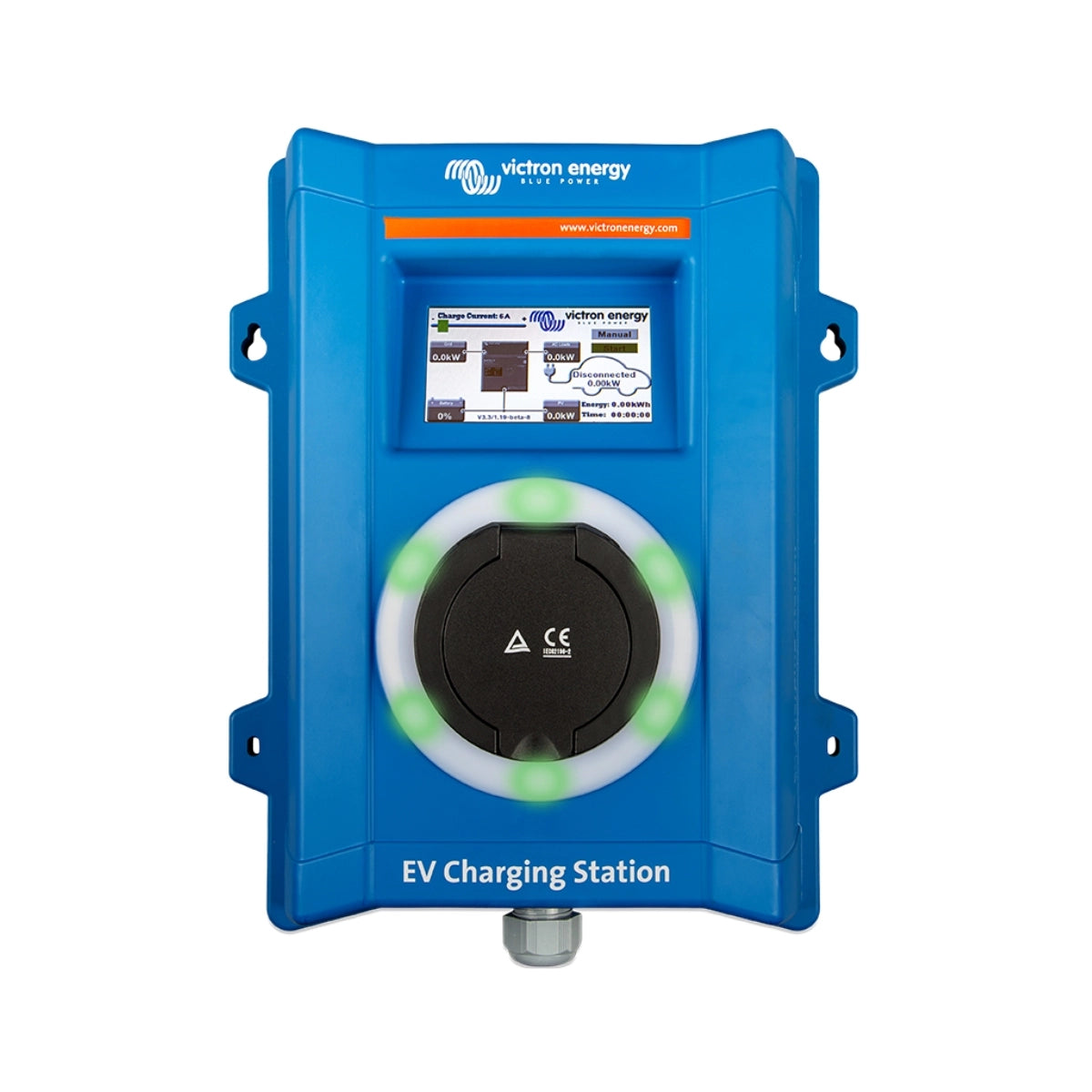

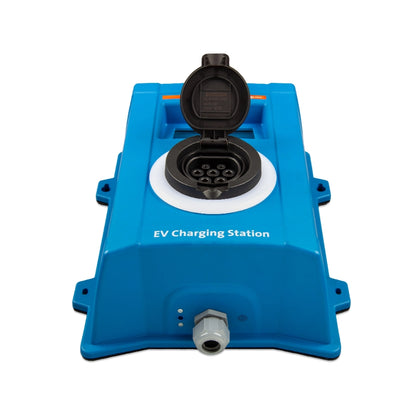

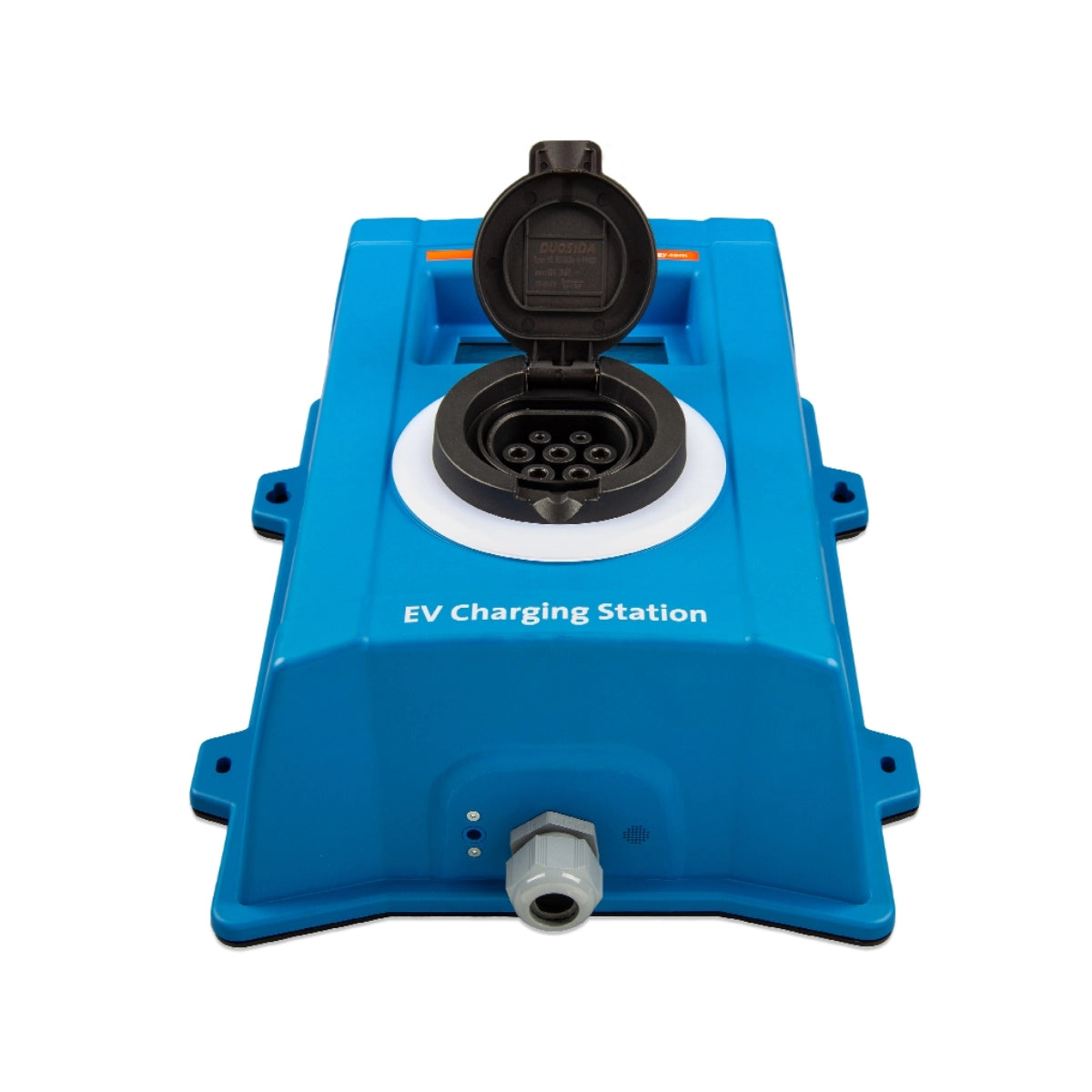

Victron EV Charging Station – 22 kW

Victron EV Charging Station – 22 kW

The Victron EV Charging Station supports both three-phase and single-phase charging, delivering up to 22kW AC in three-phase mode or 7.3kW in single-phase mode.

Equipped with a built-in LCD touch screen, it allows for direct monitoring and control from the charging station. Initial setup, configuration, and monitoring can be managed via VictronConnect using Bluetooth, or through the integrated web interface via a WiFi Access Point or a WiFi LAN.

The charging station seamlessly integrates with Victron Energy GX devices and the VRM platform, enabling remote control and monitoring. Additionally, if you have solar power within the Victron ecosystem, the station can be configured to utilise excess solar energy for charging your vehicle. Manual and scheduled modes provide further flexibility to meet your EV's charging needs.

The station features a fully programmable RGB light ring around the charging port, displaying different light effects to indicate various statuses (disconnected, charging, charged, etc.), making it easy to determine the current status at a glance.

Specifications:

• Input voltage range (VAC) ~ 170 – 265 VAC
• Rated charge current ~ 32A / phase
• Nominal power ~ 22 kW
• Current output range ~ 6 – 32 A
• WiFi standards ~ 802.11 b/g/n (2.4 Ghz only)
• Connector type ~ IEC 62196 Type 2

See the below video from VICTRON TECH.

Important Notice: Click Here
