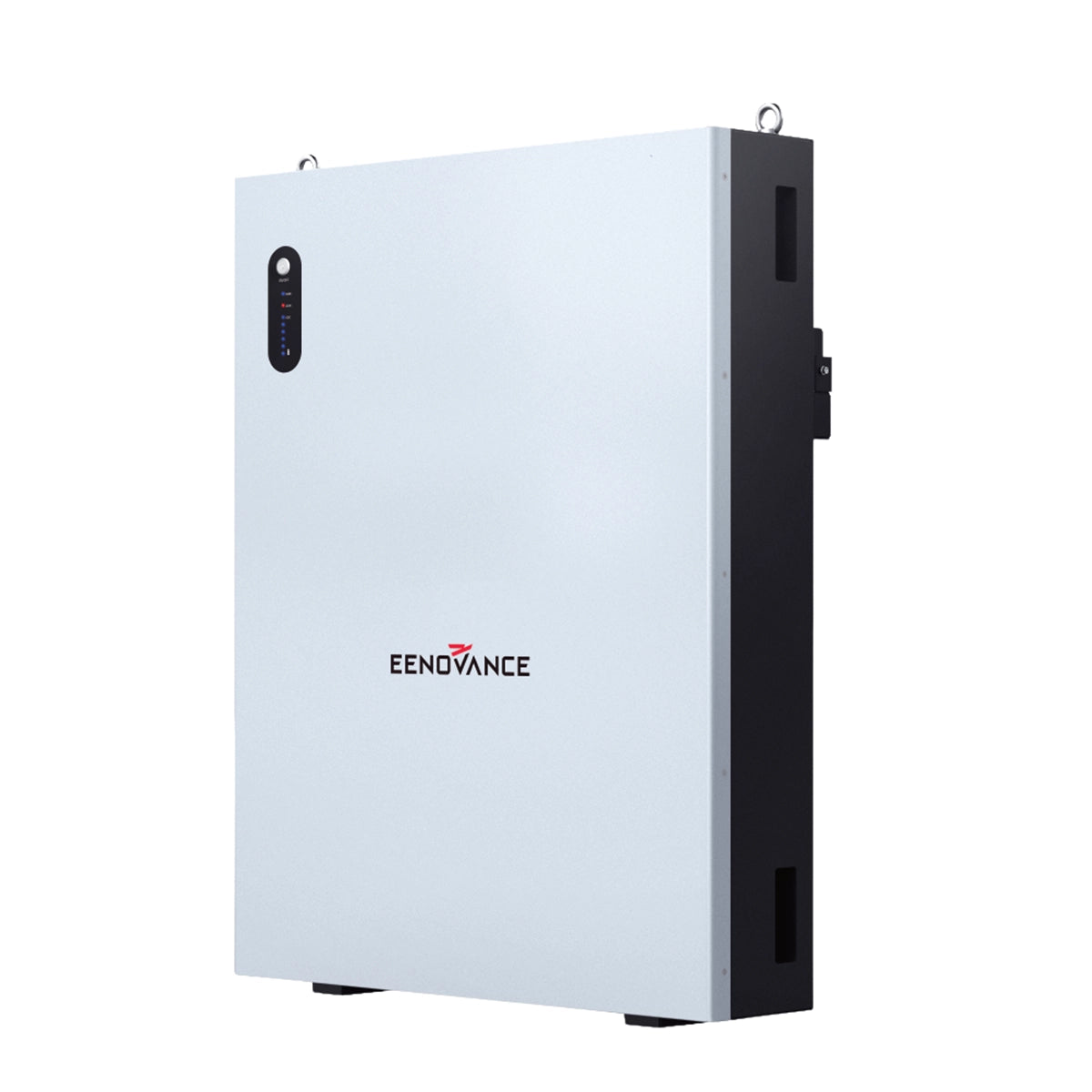

Eenovance Battery LFP Wall Mount 15.97kWh 51.2V

Eenovance Battery LFP Wall Mount 15.97kWh 51.2V

The Eenovance Mana 16.0 is a high-capacity lithium battery system designed for residential and commercial energy storage applications. It supports scalable configurations and is compatible with a wide range of hybrid inverters, making it suitable for off-grid and grid-tied systems. The battery utilizes lithium iron phosphate (LiFePO₄) chemistry, ensuring safety, longevity, and efficiency.

Product Features:

• High Capacity: 15.974 kWh usable energy per unit
• Long Life: >6,000 cycles at 80% DOD
• Safety Focused: LiFePO₄ cells for thermal and chemical stability
• Scalability: 15 modules in parallel
• High Efficiency: 98% round-trip efficiency
• Wide Compatibility: Works with major inverter brands
• Smart BMS: Integrated Battery Management System with real-time monitoring
• Compact & Elegant: Slim rack-mountable form factor with a clean finish

Specifications:

• Performance

  • Cell technology: LFP (LiFePO₄)
  • Battery usable energy [1]: 15.974 kWh
  • Nominal voltage: 51.2 V
  • Operating voltage: 44.8 ~ 56.6 V
  • Max charge and discharge current [2]: 300 A

• Communication

  • Display: SOC status indicator, LED indicator
  • Communication: CAN / RS485 / RS232 / Wi-Fi

• General Specification

  • Dimension (W×D×H): 720 × 160 × 916 mm
  • Dimension (W×D×H) incl. package: 28.3 × 6.3 × 36.1 inch
  • Weight: 130 kg (286.6 lbs)
  • Installation: Floor stand or wall mounted

• Operating temperature [3]:

  • Charge: 0 to 50°C (32 to 122°F)
  • Discharge: -15 to 55°C (5 to 122°F)
• Environmental humidity: < 95%RH (No condensation)
• Ingress protection rating: IP65
• Cycle life [4]: 6000 Cycles or ten (10) years @ 80% DOD / 25°C / 0.5C, 70% EOL
• Scalability: Max 15 batteries in parallel
• Application: On Grid / Off Grid – Backup / Off Grid
• Compatible inverters: Refer to compatible inverter list (Compatible with major PCS brands)

• Standard Compliance

  • Compliance: UN38.3 / IEC62619 / IEC61000 (More available upon request)

• Ordering and Deliverable Part

  • Part: MANA 16.0 Battery
  • Included: MANA 16.0 Parallel cable, MANA 16.0 PCS cable

Important Notice: Click Here
