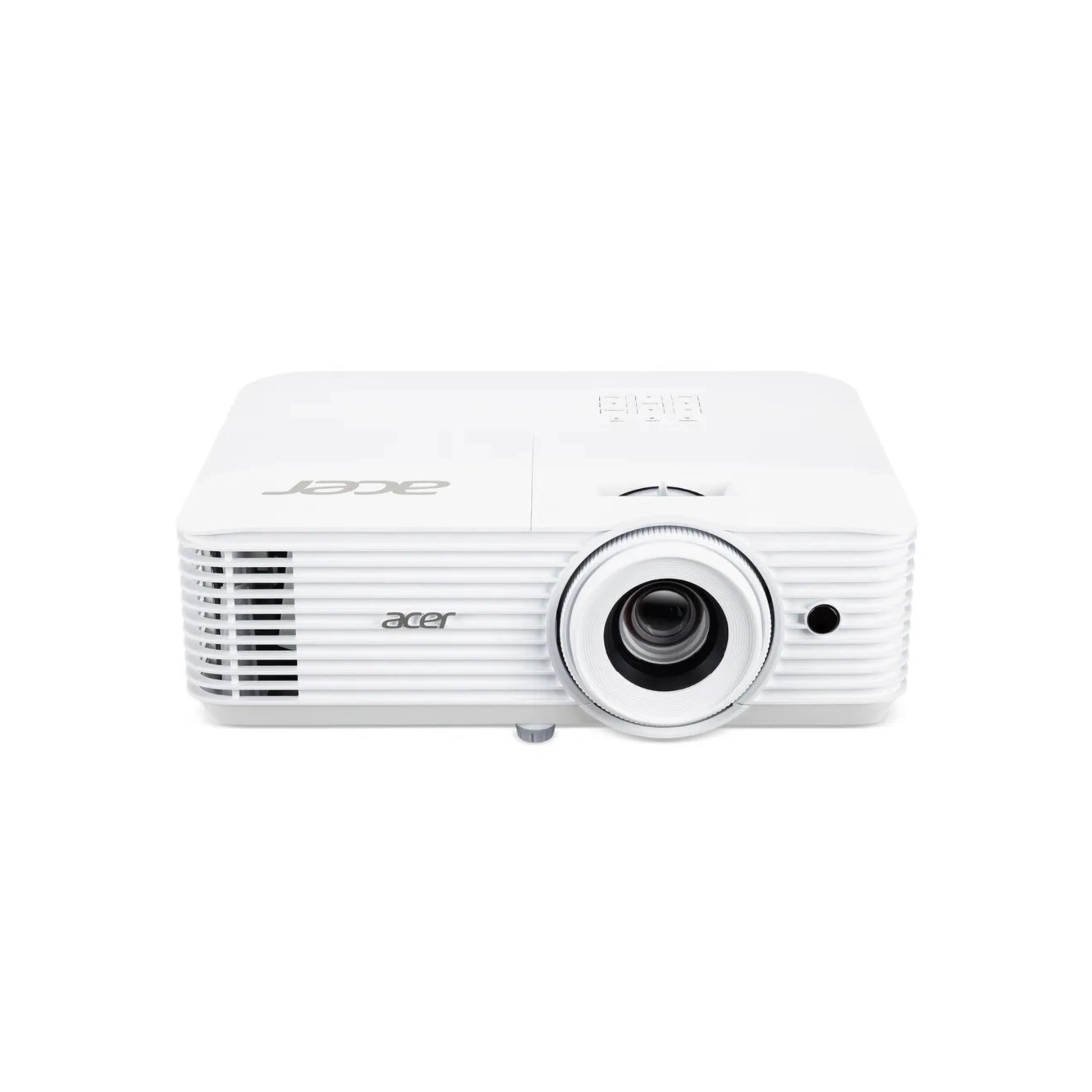

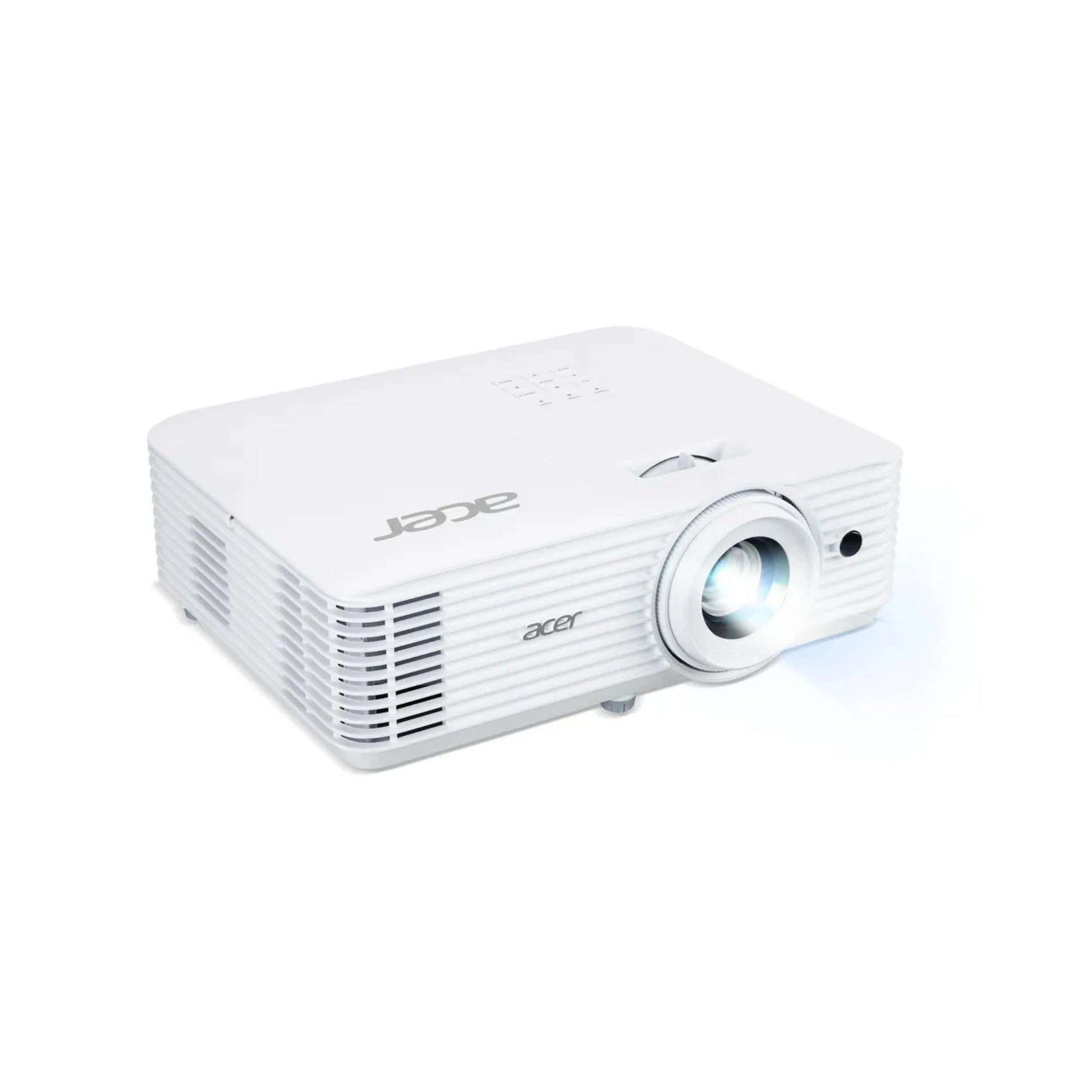

Acer S1386WH WXGA DLP Projector

Acer S1386WH WXGA DLP Projector – 3600 ANSI Lumens, Manual Focus, Lamp Light Source

Product Features:

• High brightness of 3600 ANSI lumens for clear and vibrant images
• DLP projection technology delivering sharp and detailed visuals
• Native WXGA resolution (1280x800) with support for multiple aspect ratios (16:10, 16:9, 4:3)
• Short throw ratio (0.52:1) for large images from a short distance (0.4 - 3.4 m)
• Manual focus with fixed 7.51 mm focal length for precise image adjustment
• Lamp light source (OSRAM) with up to 6000 hours of life in economic mode
• High contrast ratio of 20,000:1 for deep blacks and bright highlights
• Low noise operation (24 dB in economic mode) for quiet environments


Specifications:

Ports & Interfaces

• HDMI ports quantity: 1
• DC-in jack: Yes
• VGA (D-Sub) ports quantity: 2
• Audio (L/R) out: 1
• Audio (L/R) in: 1
• Composite video in: 1

Storage

• Card reader integrated: No

Design

• Product colour: White
• LED indicators: Yes
• Housing material: Plastic
• Placement: Ceiling
• Product type: Standard throw projector
• Market positioning: Short throw

Power

• AC input voltage: 120 - 230 V
• Power source: AC
• Power consumption (typical): 270 W
• Power consumption (PowerSave): 210 W

Features

• Noise level (economic mode): 24 dB
• Noise level: 32 dB
• Projection modes: Ceiling, Front, Rear

Packaging Content

• Quick start guide: Yes
• Remote control type: IR
• Remote control included: Yes

Display

• Built-in display: No

Software

• Windows OS supported: Yes
• Mac OS supported: Yes
• Mac compatibility: Yes

Multimedia

• Built-in speaker(s): Yes
• RMS rated power: 16 W
• Number of built-in speakers: 1

Lens System

• Focus: Manual
• Optical zoom: 1x
• Digital zoom: 2x
• Fixed focal length: 7.51 mm
• Throw ratio: 0.52:1
• Aperture range (F-F): 2.8 - 2.8

Operational Conditions

• Operating temperature: 0 - 40 °C

Projector

• Brightness: 3600 ANSI lumens
• Projection technology: DLP
• Native resolution: WXGA (1280x800)
• Contrast ratio (typical): 20,000:1
• Native aspect ratio: 16:10
• Supported aspect ratios: 4:3, 16:9
• Number of colours: 1.073 billion
• Keystone correction (vertical): -40° to 40°
• Horizontal synchronization (min-max): 15 – 100 kHz
• Vertical synchronization (min-max): 0.024 – 0.12 kHz
• Screen size compatibility: 36 – 300 inches
• Projection distance: 0.4 – 3.4 m

Light Source

• Light source type: Lamp
• Lamp power: 220 W (OSRAM)
• Lamps quantity: 1
• Service life (normal mode): 5000 hours
• Service life (economic mode): 6000 hours

Video

• Analog signal formats supported: NTSC, PAL, SECAM
• Supported graphics resolutions: 1280 x 800 (WXGA)
• Maximum digital resolution: 1920 x 1200

Weight & Dimensions

• Weight: 3100 g (3.1 kg)

Logistics Data

• Harmonized System (HS) code: 85286200
