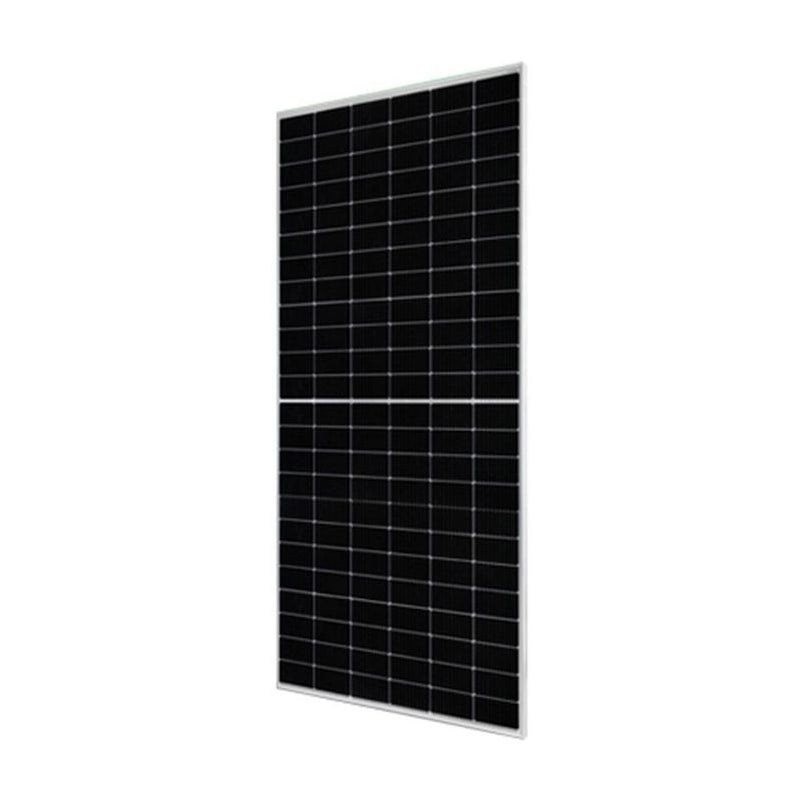

Astronergy 580W Astro N5 Bifacial TOPcon Half-Cut Solar Panel

Astronergy 580W Astro N5 Bifacial TOPcon Half-Cut Solar Panel

The Astronergy 580W Astro N5 is a next-generation bifacial solar module engineered for high performance, durability, and cost-effective energy production. Featuring TOPCon technology and a half-cut cell design, this panel delivers superior efficiency, reduces resistive losses, and enhances energy yield even under partial shading conditions.

Product Feature:

• Bifacial gain for higher energy output
• TOPCon / Half-cut technology for improved efficiency
• Low temperature coefficient (Pmpp) for stable performance in heat
• Non-destructive cutting for durability and reliability
• Reduced BOS cost and lower LCOE
• PID resistance for long-term module stability


Specifications:

Mechanical Specifications

• Outer Dimensions (L × W × H): 2278 × 1134 × 30 mm

• Cell Type: n-type mono-crystalline

• No. of Cells: 144 (6 × 24)

• Frame Technology: Aluminum, silver anodized

• Front / Back Glass: 2.0 ± 0.2 mm

• Cable Length (Including Connector): Portrait: (+) 350 mm, (–) 250 mm (customized
• length available)

• Cable Diameter (IEC/UL): 4 mm² / 12 AWG

• Maximum Mechanical Test Load: 5400 Pa (front) / 2400 Pa (back)

• Connector Type (IEC/UL): HCB40 (Standard) / MC4-EVO2 (Optional)

• Module Weight: 32.1 kg

• Packing Unit: 36 pcs / box

• Weight of Packing Unit (for 40’HQ Container): 1207 kg

• Modules per 40’HQ Container: 720 pcs (subject to sales contract)

Electrical Specifications:

• Rated Output (Pmpp / Wp): 580 W

• Rated Voltage (Vmpp / V): 43.11V

• Rated Current (Impp / A): 13.45A

• Open Circuit Voltage (Voc / V): 51.30 V

• Short Circuit Current (Isc / A): 14.28 A

• Module Efficiency: 22.5%

To qualify for free shipping, solar panel orders must consist of 6 units or more. Additional shipping charges may also apply to outlying areas and will be quoted accordingly.
