ATESS

ATESS HPS 150kW Hybrid Inverter

ATESS HPS 150kW Hybrid Inverter

R 397,740.00
R 397,740.00
Sale Sold out
Tax included. Shipping calculated at checkout.

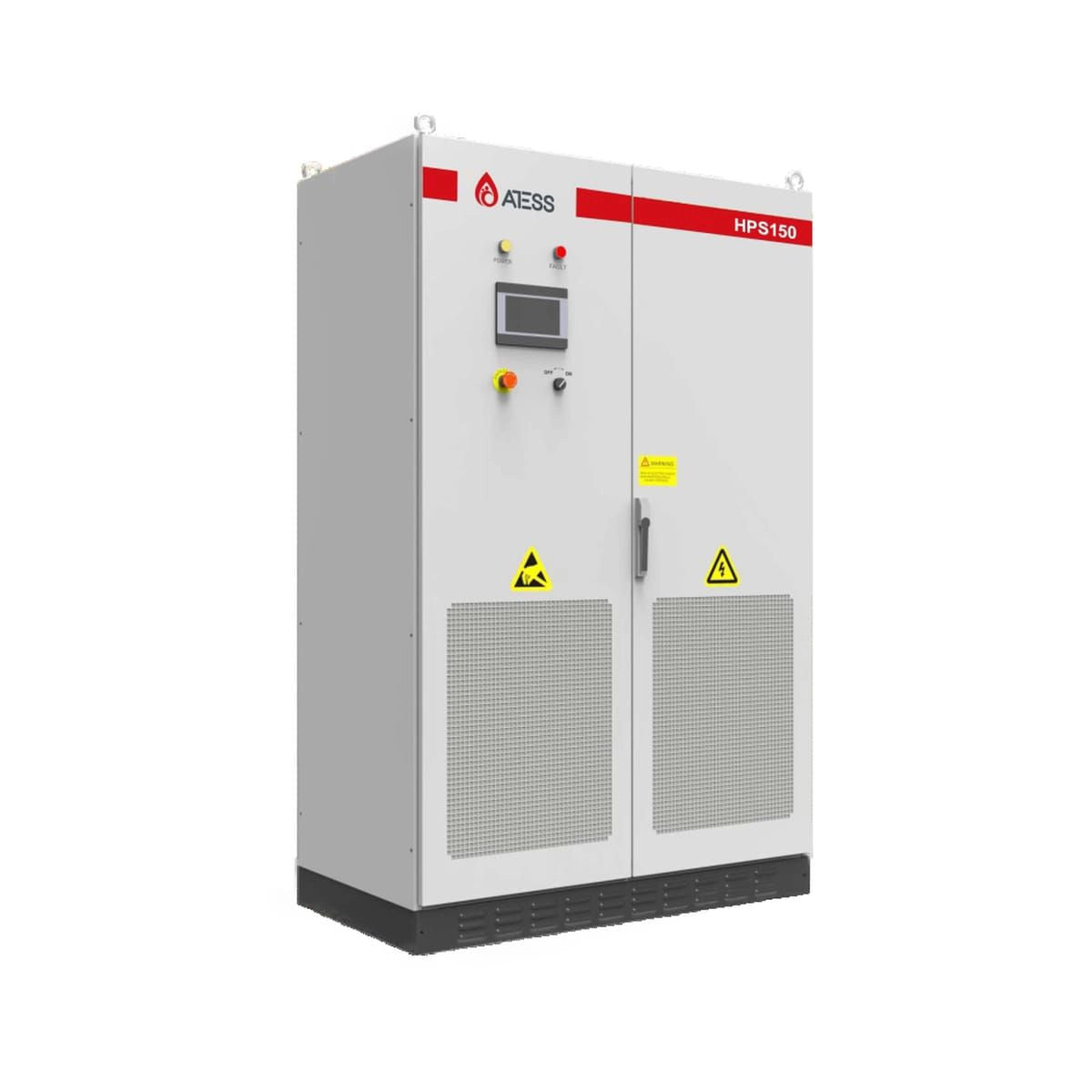

ATESS HPS150 3-PHASE INVERTER 150kW

High power output, all-in-one hybrid inverter suitable for commercial and industrial applications. The unit has versatile work modes giving it suitability for off-grid, back-up, grid support and self-consumption energy systems.

Product Features:

  • 4 x units can be paralleled for up to 600kW of load
  • Excellent and seamless transfer between on/off grid
  • Programmable work modes
  • Touchscreen LCD user interface
  • Generator remote control
  • HPS has Zero export function even when a Diesel Generator is connected
  • Supported battery brands: Pylontech, Freedom Won

Note: Delivery Not Included - Once your order has been placed, our sales team will contact you to confirm delivery fees.


    PRODUCT SPECIFICATIONS

    - Rated Power: 150,000 W
    - Min PPT Voltage: 480 V
    - Max PPT Voltage: 800 V
    - DC Startup Voltage: 450 V
    - DC Shutdown Voltage: 450 V
    - Max Input Voltage: 1,000 V
    - Max DC Power: 225,000 W
    - Max AC Power (5 Minutes): 165,000 W
    - Surge AC Power (1 Second): 180,000 W
    - Max DC Current: 409 A
    - Max DC Inputs: 1
    - Connector: Round Post
    - Euro Efficiency: 95 %
    - MPPT Quantity : 1
    - Has Integrated DC Switch: Yes

    IMPORTANT NOTICE

    Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and
    installation requirements.

    This product must be installed by a qualified electrician/technician. All installations must adhere to
    local wiring regulations and standards. Crystal Communications and its Supplier will not be held
    liable for any product malfunctions as a result of incorrectly installed systems.

    Technical specifications and general features are provided on our website, however, as individual
    needs and requirements may differ, it is recommended that our sales team is contacted for any
    specific questions before a purchase is made to ensure that the item being purchased will satisfy
    your requirements.

    The images shown are for illustration purposes only and may not be an exact
    representation of the product.
