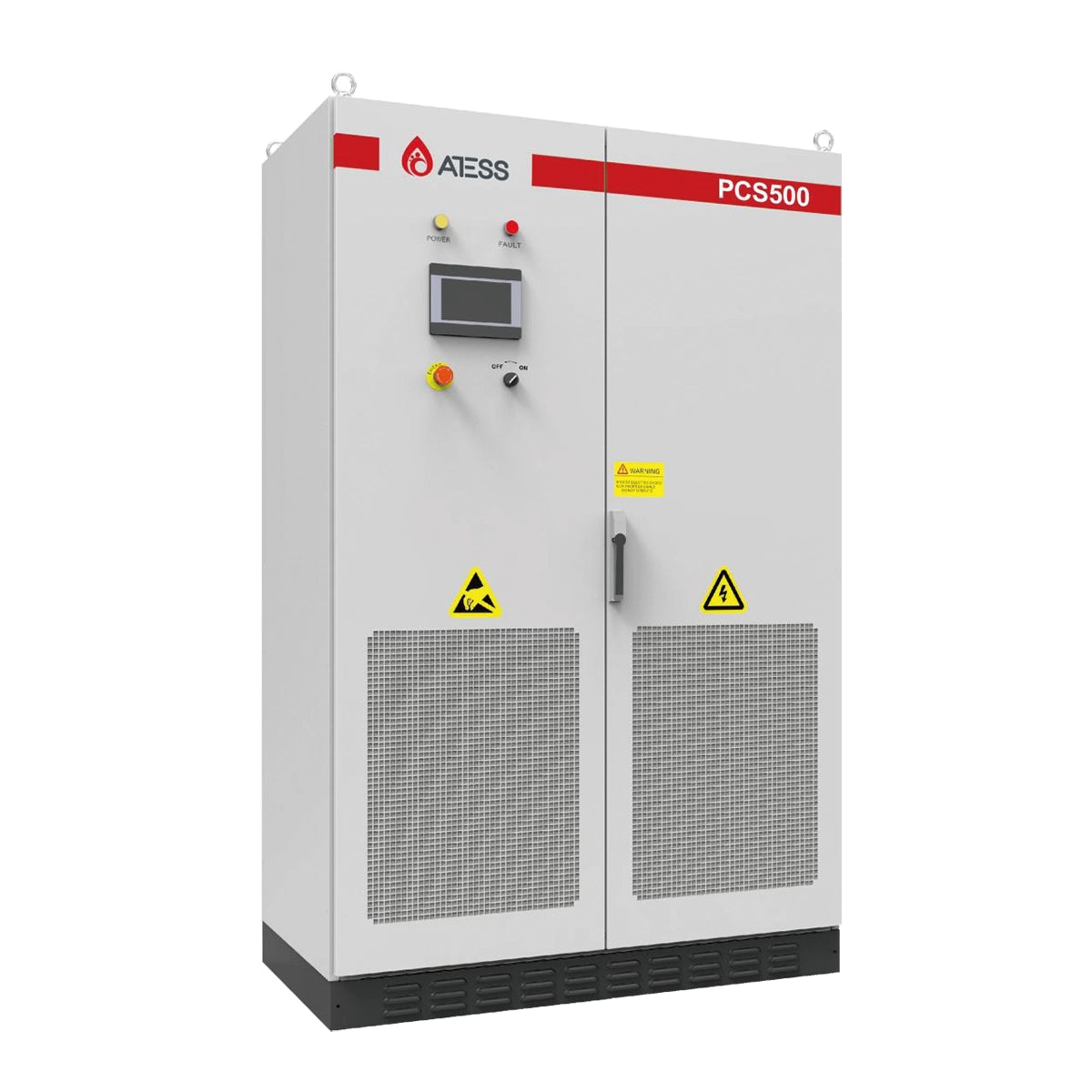

ATESS PCS 500kW Bi-Directional Battery Inverter

ATESS PCS 500kW Bi-Directional Battery Inverter

The Atess PCS range boasts bidirectional battery inverters from 100kW to 1000kW and can be used alone or with solar charge controllers and other accessories for different application scenarios.

Product Features:

• Paralleling multiple units

• Programmable working mode
• Flexible configuration
• Touchscreen LCD
• Support remote control of DG

Specification:

• AC(on-grid)
  • Apparent power: 550kVA
  • Rated power: 500kW
  • Rated voltage: 400V
  • Rated current: 722A
  • Voltage range: 360V-440V
  • AC connection: 3/N/PE
• AC(off-grid)
  • Apparent power: 550kVA
  • Rated power: 500kW
  • Rated voltage: 400V
  • Rated current: 722A
• DC (Battery and PV)
  • Rated power: 500kW
  • Current regulation: ±1%
  • Voltage regulation: ±1%
  • Voltage ripple: <3%
  • Current ripple: <2%
  • Voltage range: 600V-900V
  • Max. charge/discharge current: 917A
• General Information
  • Maximum efficiency: 98.50%
  • Protection degree: IP20
  • Noise emission: <65dB(A)@1m
  • Operating temperature: -25°C~+55°C
  • Cooling method: Forced-air
  • Dimension(W/H/D): 1600/2080/850mm
  • Weight: 870kg
  • Build-in transformer: No
  • Lightning protection: Type II
  • Transfer between on/off grid: Manual(default) Automatic(optional) ≤10ms
