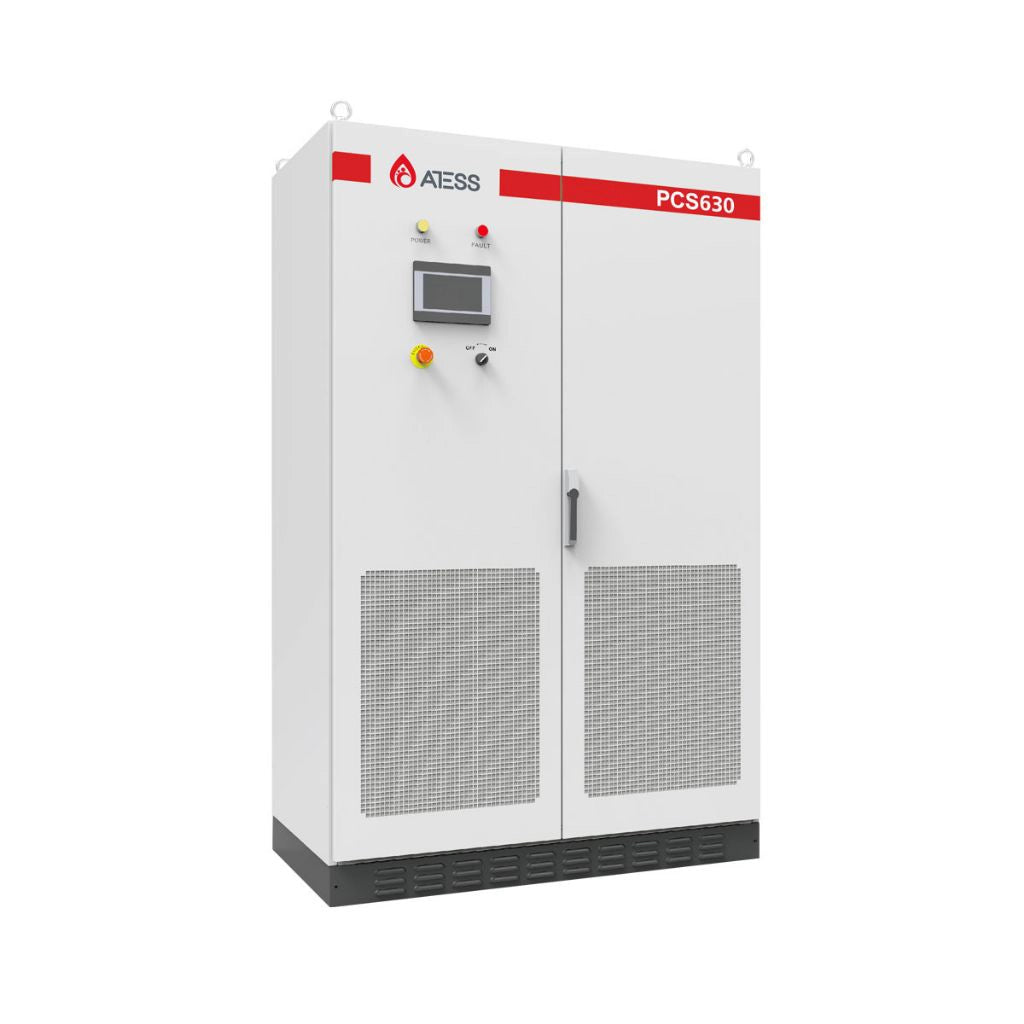

ATESS PCS 630kW Bi-directional Battery Inverter

AC(on-grid)
- Apparent power: 693kVA
- Rated power: 630kW
- Rated voltage: 400V
- Rated current: 909A
- Voltage range: 360V-440V
- AC connection: 3/N/PE

AC(off-grid)
- Apparent power: 693kVA
- Rated power: 630kW
- Rated voltage: 400V
- Rated current: 909A

DC (Battery and PV)
- Rated power: 630kW
- Current regulation: ±1%
- Voltage regulation: ±1%
- Voltage ripple: <3%
- Current ripple: <2%
- Voltage range: 600V-900V
- Max. charge/discharge current: 1155A

General Information
- Maximum efficiency: 98.50%
- Protection degree: IP20
- Noise emission: <65dB(A)@1m
- Operating temperature: -25°C~+55°C
- Cooling method: Forced-air
- Dimension(W/H/D): 1600/2080/850mm
- Weight: 900kg
- Build-in transformer: No
- Lightning protection: Type II
- Transfer between on/off grid: Manual(default) Automatic(optional)≤10ms
