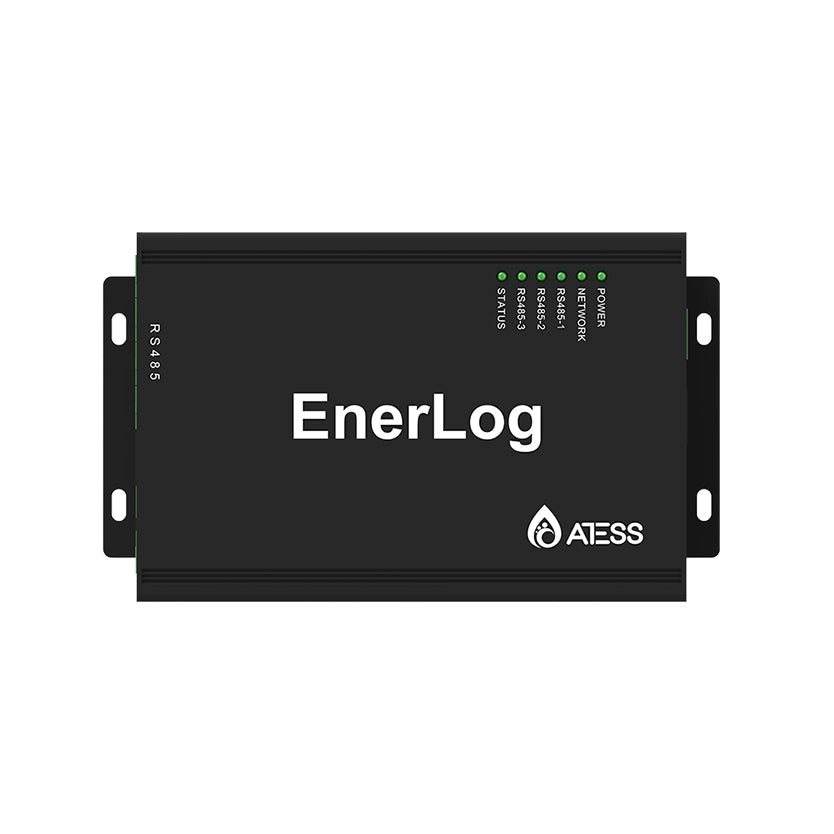

ATESS Remote monitoring and control module - EnerLog

ATESS Remote monitoring and control module - EnerLog

The ATESS online monitoring and control data logger known as the ShineMaster, has been updated to a completely new version named EnerLog.

Product Features:

• Two RS485 communication ports for monitoring the inverter and the battery separately
• 12 - 24V DC power supply input port has been added as an alternative to the AC unit supply.
• USB (Type A) port availability for updating the module's firmware.
• Remote update of battery BMS and inverter firmware.
• Full remote monitoring and control of system components.

Specifications:

• Power adapter - Input: 100-240V, 50/60Hz AC Output 12V(+/-15%), 1A DC
• Power consumption - 2.5W
• Max. communication range - 500m
• Communication with inverters - RS485
• Communication with server - TCP(Modbus TCP protocol) via Internet
• Support network - Ethernet
• Data transfer interval - 5 Minutes
• Default server URL - ess-server.atesspower.com
• Degree of protection -  IP30
• Warranty - 1 year
