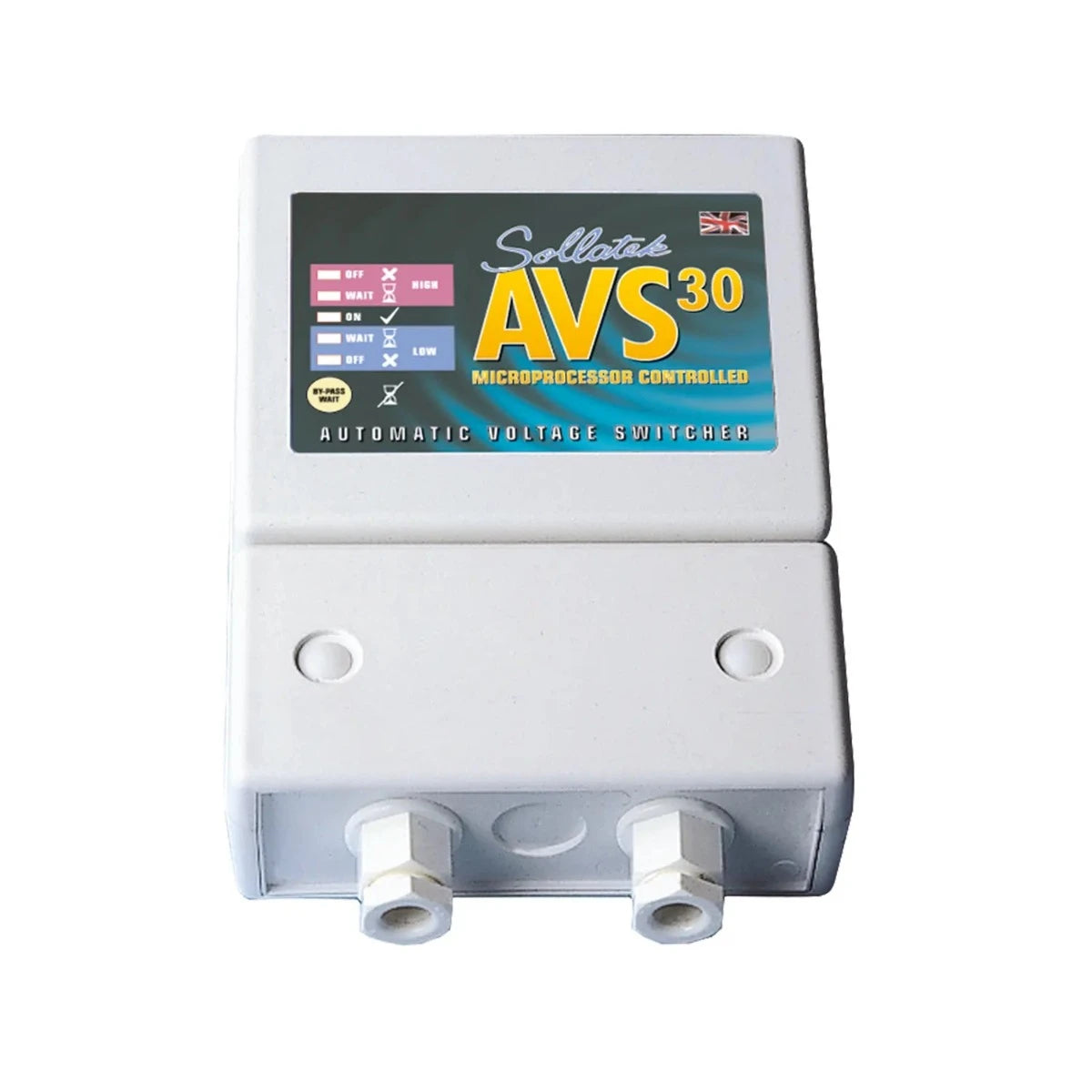

Sollatek - Automatic Voltage Switch, Single Phase, 30A

Sollatek - Automatic Voltage Switch, Single Phase, 30A - AVS30

Description:

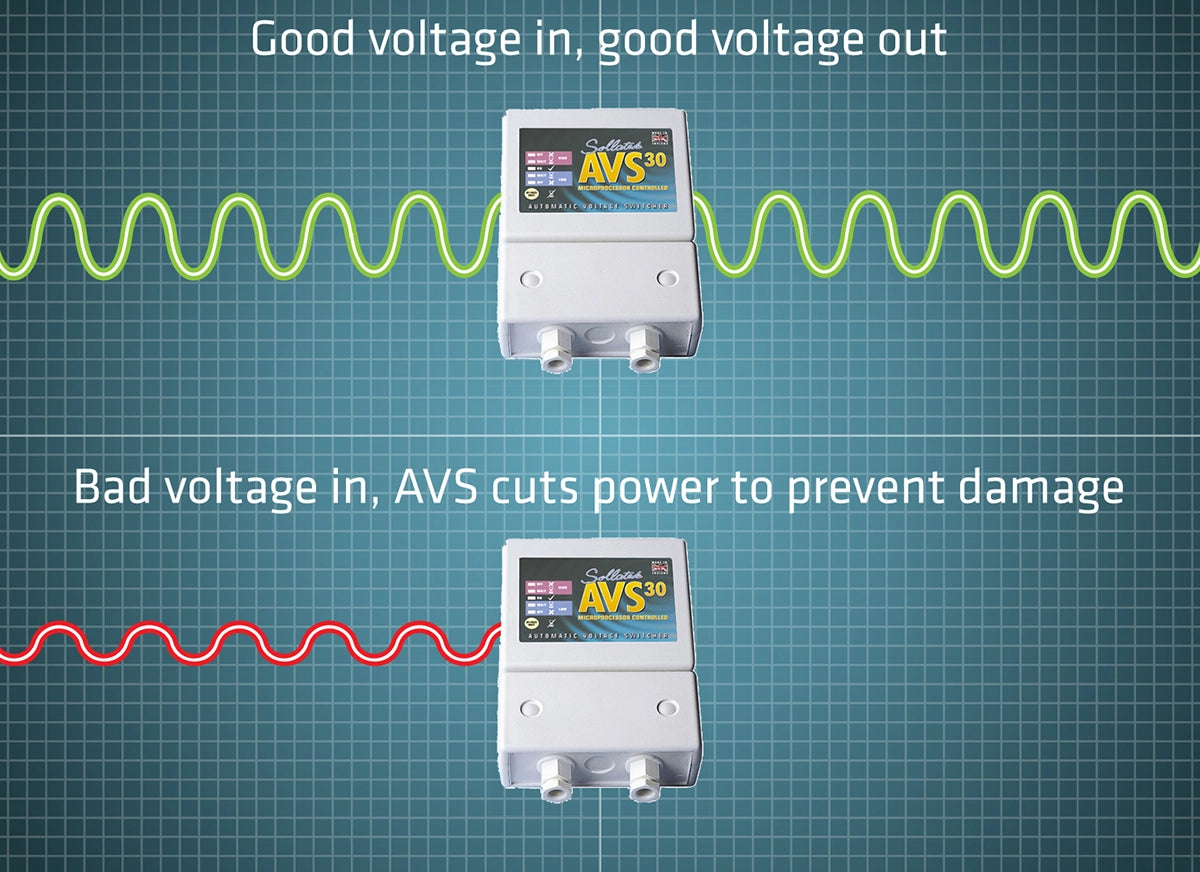

The AVS is an Automatic Voltage Switcher rated at 30 Amps (AVS30). The AVS will switch off the equipment connected to it if the mains power goes outside preset acceptable limits and will re-connect automatically - when the mains power returns to normal. Re-connection takes place after a delay (‘the start-up delay’) to ensure stability of the mains. In addition, the start-up delay provides protection against power-back surges commonly experienced after resumption of power in a power cut situation. Surge and spike protection is also incorporated to ensure protection against these commonly occurring events.

Applications

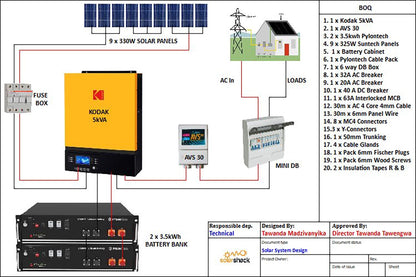

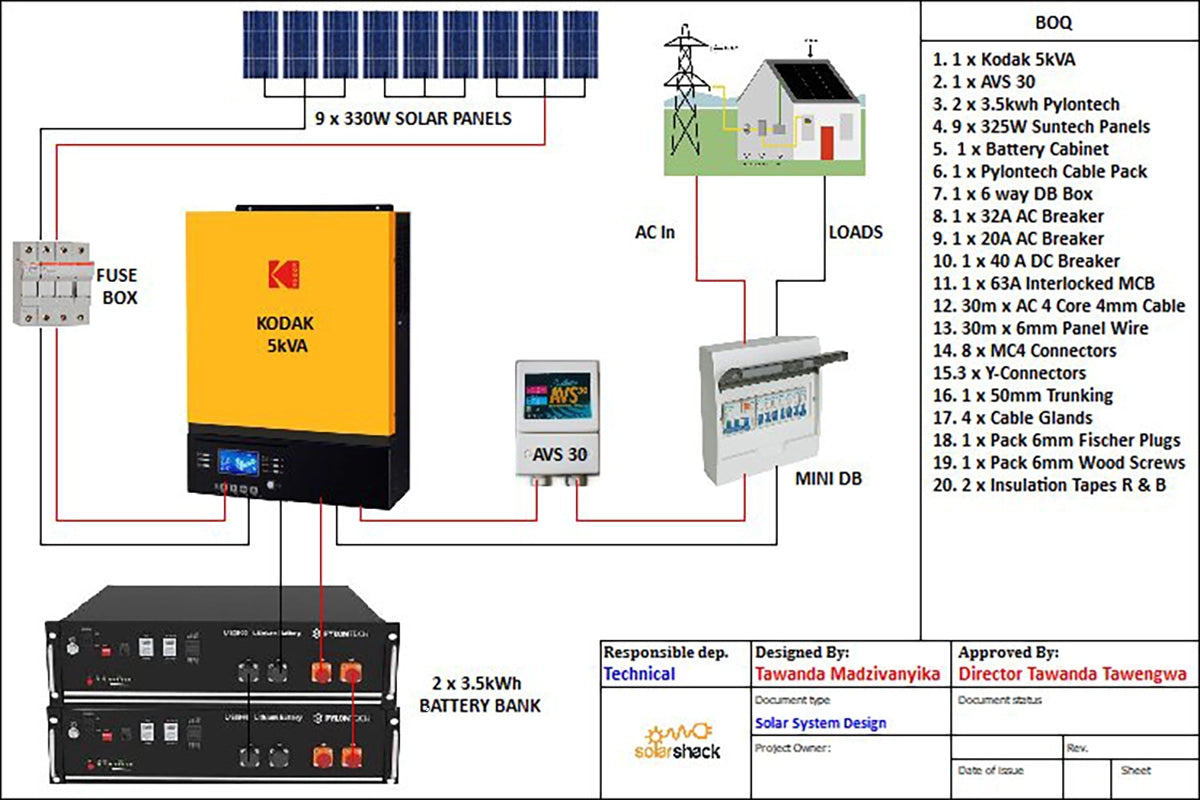

Air-conditioners, large fridge/freezers, whole office, Inverters and complete circuits.

Specifications:

• Nominal Voltage  -  230V
• Watts  -  7200.00
• Frequency  -  50/60 Hz
• Load Current (Amps)  -  30A
• Inrush Current (20ms)  -  110 Amps
• Max consumption (milli Amps)  -  <100mA
• Wait Time  -  10s -10m plus manual
• Over-Voltage Disconnect  -  230V-300V plus off
• Over-Voltage Reconnect  -  2V below HVD setting
• Under-Voltage Disconnect  -  150 - 230V
• Under-Voltage Reconnect  -  5V above LVD setting
• Max supply  -  320V
• Spike / surge protection  -   Joules 160 / Amps 6500A (8/20us) / Response 10 nanosecs
