Creality Pika 3D Scanner

Creality Pika 3D Scanner

R 13,639.00
R 14,999.00 R 13,639.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

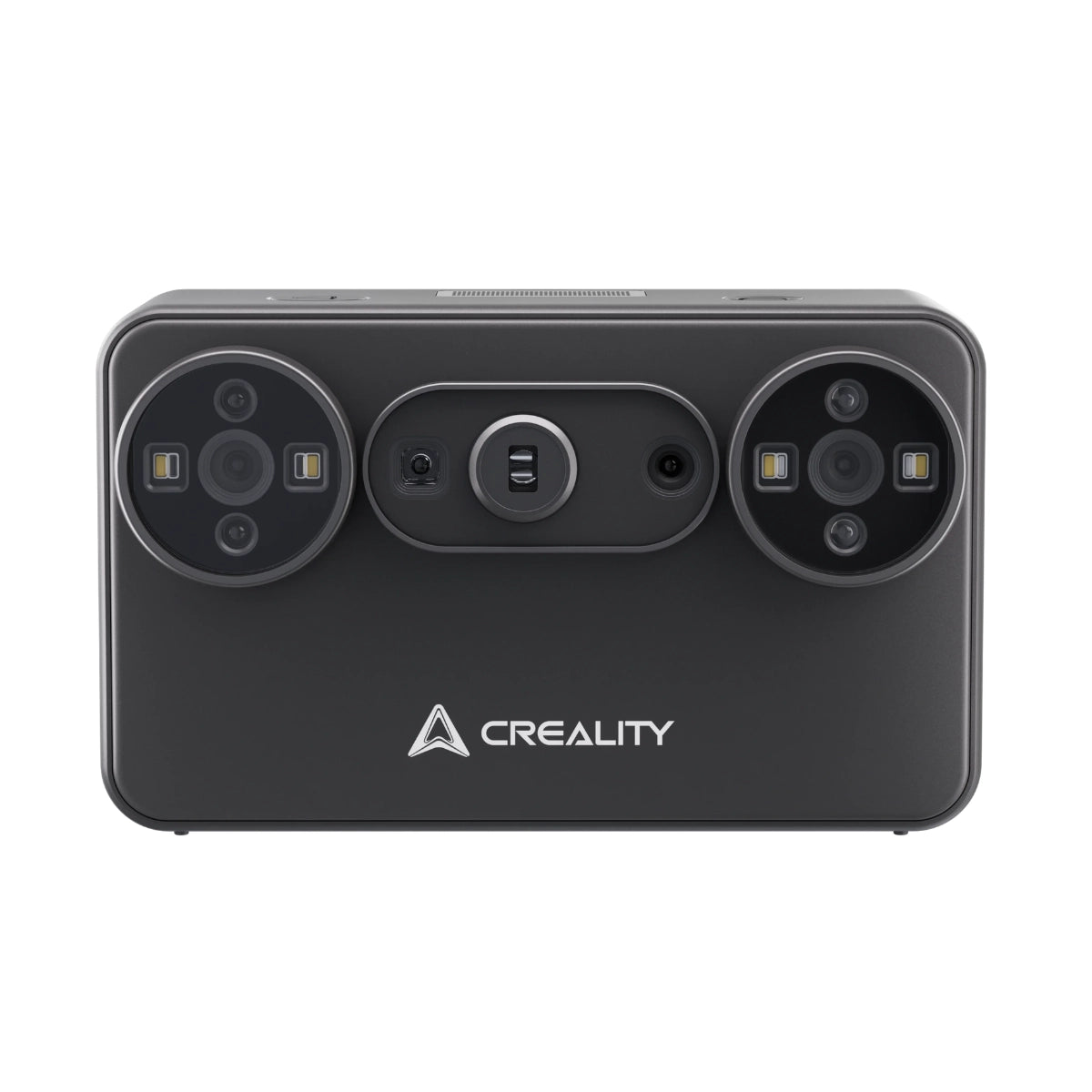

Creality Pika 3D Scanner

Meet the Creality Pika, a pocket-sized, highly versatile handheld 3D scanner designed to make professional-grade 3D capturing as effortless as taking a photo. Weighing a mere 260 grams, the Pika breaks the boundaries of traditional heavy scanning hardware by introducing a fully cordless, ultra-portable user experience backed by dual-light technology. Whether you are a hobbyist, product designer, engineer, educator, or maker, the Pika delivers exceptional detail, high mobility, and intelligent processing right out of the box.

Key Features

  • Ultra Portable — Weighing just 260g, scan anytime and anywhere with ease.
  • High-Precision Scanning — Capture fine details with up to 0.03mm accuracy.
  • Dual-Light System — Blue Laser and NIR technology for versatile object scanning.
  • Smart AI Processing — Generate cleaner 3D models with intelligent data optimization.
  • Wireless Convenience — Scan freely without cables for greater flexibility.
  • Perfect For 3D Printing • Product Design • Makers • Education • Reverse Engineering

PRODUCT SPECIFICATIONS

Scanning Parameters
- Accuracy: Up to 0.03 mm (Blue Laser) | Up to 0.1 mm (NIR)
- 3D Resolution: 0.1 to 2.0 mm (Blue Laser) | 0.15 to 2.0 mm (NIR)
- Scan Speed (PC): Up to 110 FPS (Blue Laser) | Up to 30 FPS (NIR)
- Scan Speed (Mobile): Up to 40 FPS (Blue Laser) | Up to 20 FPS (NIR)
- Minimum Scan Volume: 10 x 10 x 10 mm (Blue Laser) | 150 x 150 x 150 mm (NIR)
- Working Distance: 160 to 400 mm (Blue Laser) | 140 to 1000 mm (NIR)
- Single Capture Range (Blue Laser): 101 x 107 mm (at 160 mm) to 344 x 268 mm (at 400 mm)
- Single Capture Range (NIR): 144 x 134 mm (at 200 mm) to 764 x 670 mm (at 1000 mm)
- Outdoor Light Resistance: Up to 110,000 lux (Blue Laser) | Up to 80,000 lux with filter (NIR)
- Color Mapping: Supported in both modes
- Overall Scan Range: 10 x 10 x 10 mm up to 2000 x 2000 x 2000 mm

Hardware & Physical Specs
- Weight: 260 g (batteries included)
- Dimensions: 100 x 60 x 35 mm

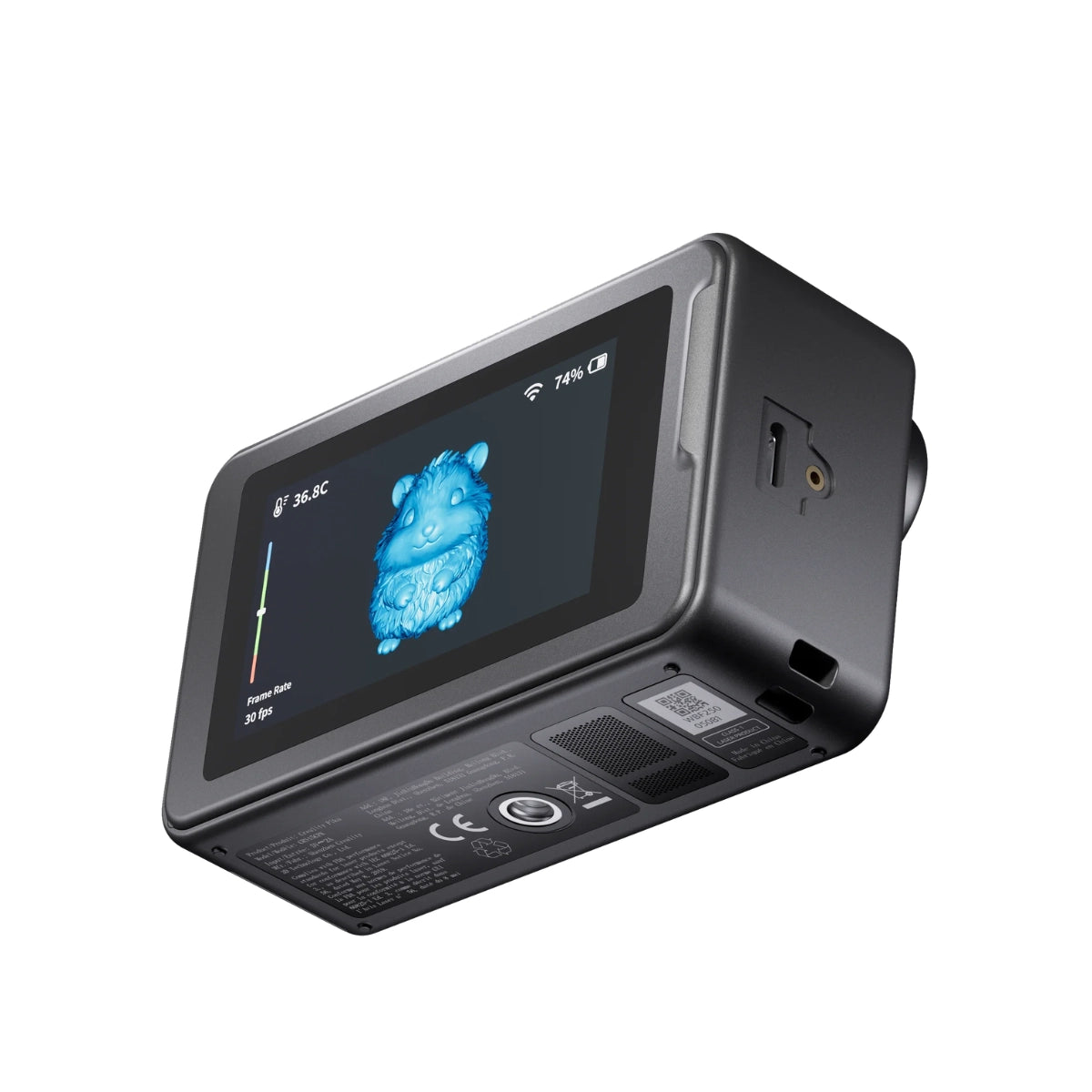

- Display: 3-inch touchscreen (500 nits peak brightness)
- Processor: 8-core CPU (2.0 GHz)
- Power & Battery: Dual quick-swap 3,350 mAh rechargeable batteries (~70 min runtime per battery)
- Input Power: 5V 3A
- Connectivity: Wi-Fi 6 wireless & USB 3.0 Type-C
- Supplemental Lighting: 4 Blue/White LEDs + 4 Infrared LEDs
- Laser Safety: Class I (eye safe)
- Alignment Modes: Marker, Global Marker, Marker-free, Geometry, Texture
- Operating Environment: -10°C to 40°C | 10–90% RH

Software & Export Formats
- Software: CrealityScan (supports AI-assisted hole filling, retexturing, automated alignment, and body completion)
- Output Formats: STL, OBJ, PLY, ASC

System Requirements
- Windows: Windows 10/11 (64-bit), Intel i7 Gen7 (Min) / Gen13+ (Rec), NVIDIA GPU with 8GB VRAM (Min) / RTX 3060+ (Rec), 16GB RAM (Min) / 32GB RAM (Rec)
- macOS: macOS 14 or later, Apple M2 (Min) / M3/M4/M5 (Rec), 16GB–32GB RAM
- iOS: iOS 15+, A15 chip or above, 6GB+ RAM (Wireless connection only)
Android: Android 10.0+, Qualcomm Snapdragon 8 Gen2 or above, 8GB+ RAM

What's in the Box
- 1x Creality Pika 3D Scanner Unit
- 2x 3,350 mAh Rechargeable Swappable Batteries
- 1x High-Precision Glass Calibration Board
- 1x Portable Tripod & Scanning Turntable
- 1x Marker Tower & Reflective Tracking Markers
- 2x Removable NIR Filters
- 1x USB 3.0 Type-C Data & Charging Cable (2m)
- 1x Lanyard & Cleaning Cloth
- Quick Start Guide & Warranty Documentation
