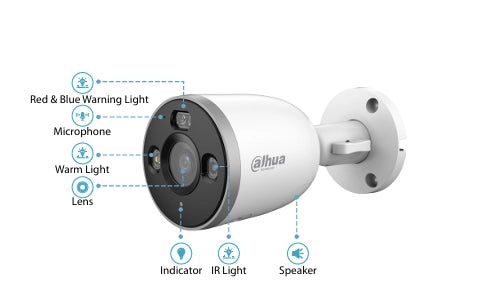

Dahua 5MP Fixed-focal Wi-Fi Bullet Network Camera DH-F5D-PV

Driven by industry-leading technology, Dahua Wireless Series network cameras are highly precise and easy to install, producing high-quality images. They have strong wireless connection capabilities and do not require network cables, eliminating the need for a professional construction team. This series of cost-effective cameras supports local storage and is dustproof and waterproof. It is ideal for small and medium-sized scenes such as retail stores, homes, and other small and medium-sized enterprises.

Features:

• 5MP Imaging: Sharp, clear video.
• AI Vehicle & Human Detection: Fewer false alarms.
• Red/Blue Warning Light: Strong intruder deterrent.
• Bluetooth Pairing: Fast, easy setup.
• Sound & Light Alarm: Instant alerts.
• Two-Way Talk: Communicate anytime.
• H.265 Compression: Saves bandwidth and storage.
• Wi-Fi 6: Faster, more stable connection.
• IP67 Rated: Weather-resistant.
• MicroSD Support: Affordable storage.
• DMSS App: Simple and user-friendly.


Specifications:


• Image Sensor: 1/2.7" CMOS
• Max Resolution: 2880 (H) × 1620 (V)
• Minimum Illumination:
  • 0.007 lux @ F1.6 (Color, 30 IRE)
  • 0.0007 lux @ F1.6 (B/W, 30 IRE)
  • 0 lux (with illuminator on)

Illumination

• IR Distance: Up to 30 m
• Warm Light Distance: Up to 30 m
• Illuminators: 1 × IR LED, 1 × Warm Light
• Angle Adjustment: Tilt 0°–90°, Rotation 0°–360°

Lens

• Type: Fixed-focal
• Focal Length: 2.8 mm or 3.6 mm
• Max Aperture: F1.6
• Field of View:
  • 2.8 mm: H 104°, V 56°, D 124°
  • 3.6 mm: H 89°, V 48°, D 104°

Intelligence

• Human Detection: Yes
• Vehicle Detection: Yes

Audio

• Built-in MIC: Yes
• Built-in Speaker: Yes
• Audio Compression: G.711a, G.711Mu, PCM

Video

• Video Compression: H.264B / H.264 / H.264H / H.265
• Frame Rate:
  • Main Stream: 2880 × 1620 @ 1–25/30 fps
  • Sub Stream: 640 × 360 @ 1–25/30 fps
• Bit Rate:
  • H.264: 32–4096 kbps
  • H.265: 32–4096 kbps
• Day/Night Mode: Auto (ICR) / Color / B/W
• WDR: DWDR
• Motion Detection: 4 adjustable rectangular areas
• Image Rotation: 0° / 180°

Network

• Port: RJ-45 (10/100 Base-T)
• Wi-Fi: IEEE 802.11 b/g/n/ax (2.4 GHz)
• Frequency: 2.4000–2.4835 GHz
• Pairing: Bluetooth pairing
• Interoperability: ONVIF (Profile S, G, T), CGI

Storage & Software

• Storage: Supports MicroSD (up to 256 GB)
• Software: Smart PSS Lite, DSS, DMSS
• Mobile App: Android, iOS

General

• Certifications:
  • CE-LVD: EN62368-1
  • CE-EMC: Directive 2014/30/EU
  • CE-RED: Directive 2014/53/EU
• Power Supply: 12 VDC
• Power Consumption:
  • Basic: 2.4 W
  • Max: 7.5 W (H.265 + warm light + alarm)
• Operating Temp: –40°C to +60°C
• Operating Humidity: ≤95% RH (non-condensing)
• Protection: IP67
• Reset Button: Yes
• Casing: Metal + plastic
• Dimensions: 158.3 mm × Φ76.8 mm
• Weight: 0.34 kg
