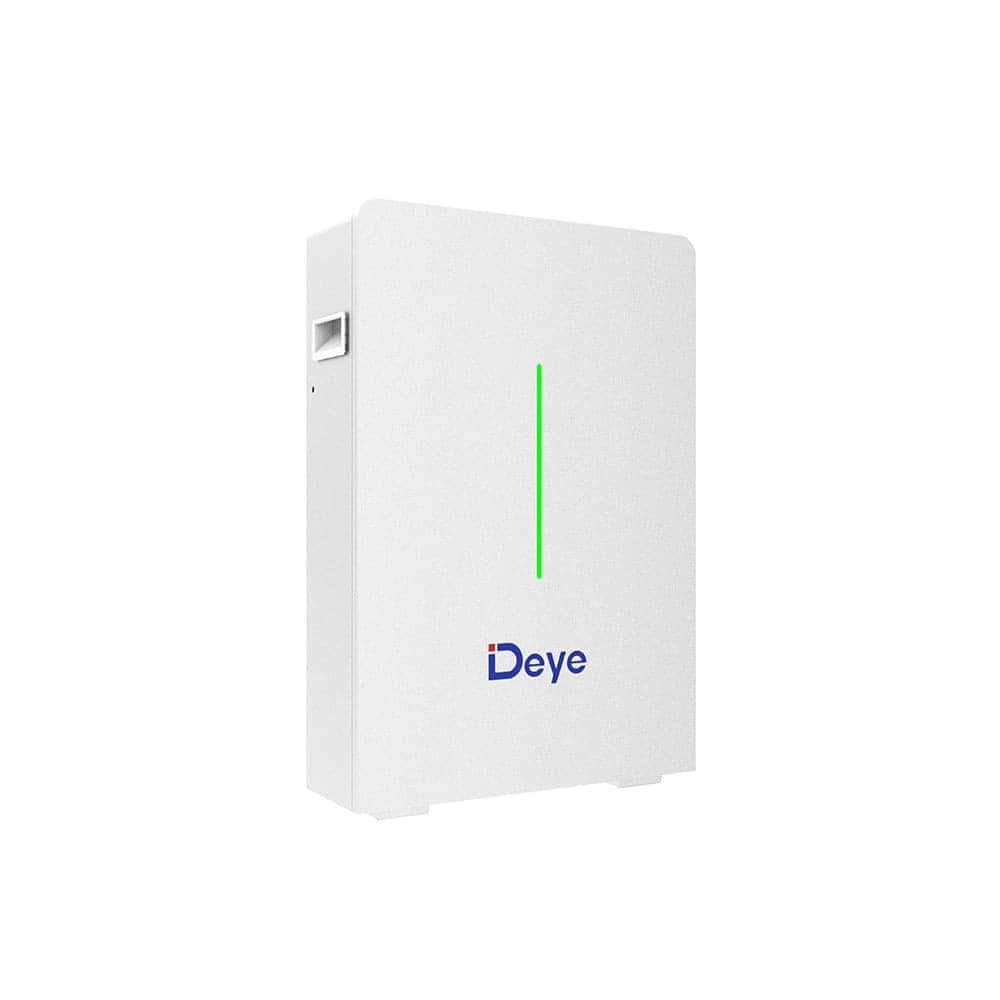

Deye 10.64 kWh 51.2V LiFePO4 Battery

Deye 10.64 kWh 51.2V LiFePO4 Battery - RW-F10.6

The Deye RW-F10.6 LFP battery is ideal for individuals seeking a dependable, top-quality, and versatile energy storage option. Its modularity and diverse applications make it suitable for both personal and business use, while its strong emphasis on safety and environmental sustainability guarantees long-term reassurance.

Product Features:

• Safer: This LiFePO4 battery from Deye offers a cobalt-free solution with high-energy density, long lifespan, and advanced safety features including a low voltage safety connection. As a trusted expert in the industry, we prioritize safety and efficiency through the use of scientific, fact-based language and objective statements.
• High Performance: Maximum support 1C charge and 1.2C discharge. Maximum 6000 cycles at 90% DOD, and 10 years standard warranty.
• Reliable: Built-in Intelligent BMS, providing complete protection. Natural cooling, IP20, wide temperaturerange: -20℃to 55℃.
• Flexible: Modular design, easy to expand, Max. 32 units in parallel, Max. capacity of 340kWh. Suited to residential and commercial applications for increasing the self-consumption ratio.
• Convenient: This battery module offers automatic networking (without needing DIP switch codes) for ease of maintenance and supports remote monitoring and upgrades through Deye.
• Eco-Friendly: Utilize environmentally-friendly materials with non-toxic and pollution-free properties throughout the entire module.
• Two Mounting Methods: Flat design, Wall-mounted with Wall Bracket, Floor Stand with removable base, saving installation space.

Specifications:

• Main Parameters

  • Battery Chemistry: LiFePO4
  • Built-in Circuit Breaker: 125A 2P, 60Vdc
  • Capacity(Ah): 208
  • Scalability: Max. 32 pcs pack (Max.340kWh) in parallel
  • Nominal Voltage(V): 51.2
  • Operating Voltage(V): 43.2 ~ 57.6
  • Nominal Energy(kWh): 10.64
  • Usable Energy(kWh): 9.58
  • Charge/Discharge Current(A)
    • Recommend: Charge: 104 / Discharge: 104
    • Max: Charge: 200 / Discharge: 240
    • Peak(25℃): 300(2mins)

• Other Parameters

  • Recommend Depth of Discharge: 90%
  • Dimension(W/H/D,mm): 600*750*200(Without hanging board)
  • Weight Approximate(kg): 99
  • Master LED Indicator: LED(SOC:20%~SOC100% and working state)
  • IP Rating of Enclosure: IP20
  • Cycle Life: ≥6000(25℃±2℃,0.5C/1C,90%DOD,70%EOL)
  • Installation: Wall-Mounted, Floor-Mounted
  • Communication Port: CAN2.0, RS485
  • Warranty Period: 10 years
  • Certification: UN38.3, MSDS,CE,CB
