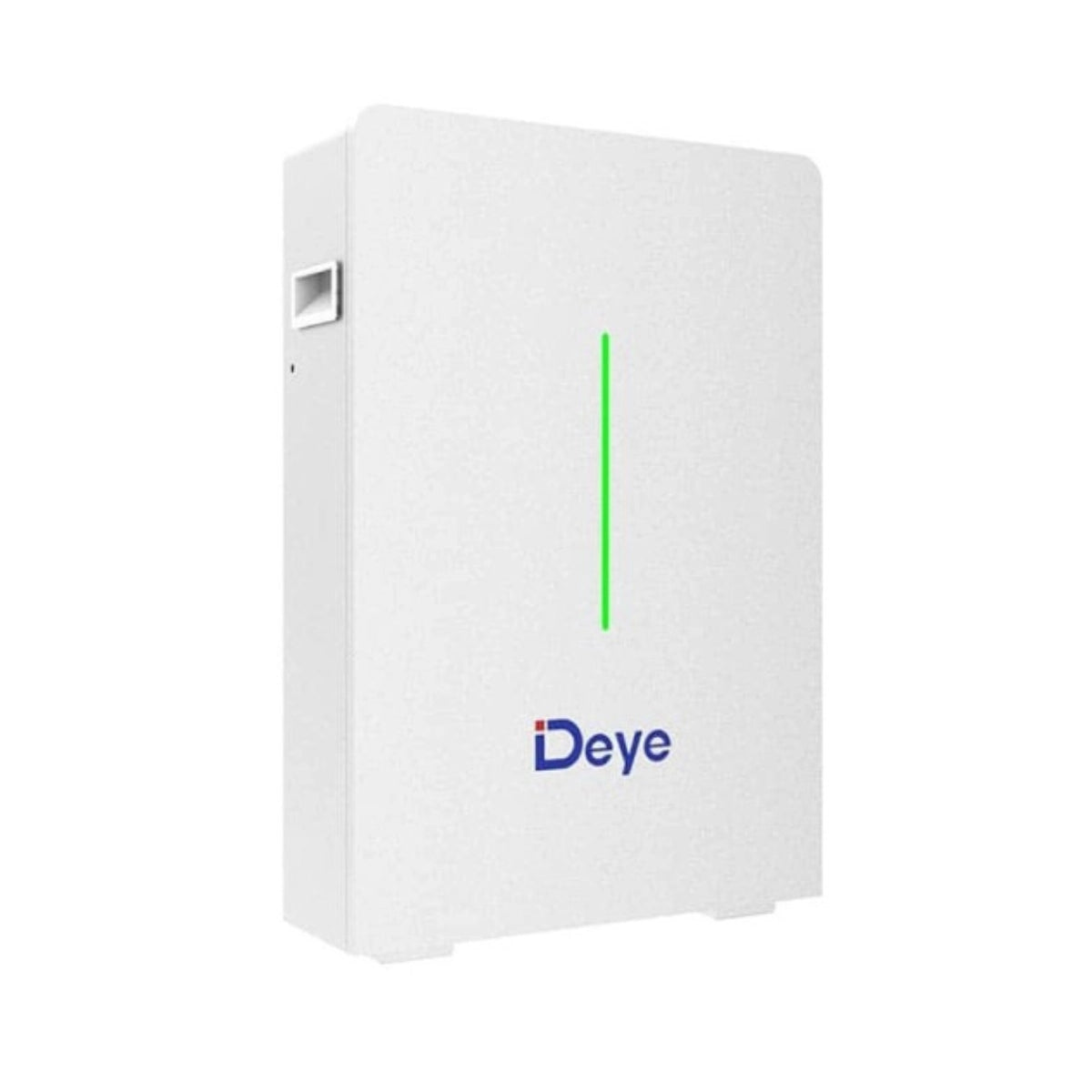

Deye 10.6kWh Wall-Mounted LiFePO₄ Battery
Deye 10.6kWh Wall-Mounted LiFePO₄ Battery
Couldn't load pickup availability
Deye 10.6kWh Wall-Mounted LiFePO₄ Battery
The Deye RW-G10.6 is a reliable and efficient 10.6kWh wall-mounted lithium battery, designed for residential energy storage applications. Featuring advanced LiFePO₄ chemistry, this battery offers enhanced safety, long life, and high energy throughput. With support for parallel installation and compatibility with any inverter brand, the RW-G10.6 is ideal for backup power and solar energy storage systems.
Product Features:
- 10.6kWh LiFePO₄ (LFP) wall-mounted battery
- Built-in intelligent BMS for safety and performance
- Integrated 2P 125A circuit breaker for added protection
- Up to 32 units can be connected in parallel (up to 340kWh total capacity)
- Compatible with any inverter for charging and discharging
- Remote monitoring and firmware upgrades via Deye inverter
- Supports external power supply activation to prevent suspension
- Allows direct recharge after over-discharge for easier maintenance
- Auto battery networking — no DIP switch configuration required
- Constant-current limit charge function (10A built-in)
- Suitable for residential, backup, and off-grid energy systems
PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
- Battery Chemistry: LiFePO₄
- Built-in Circuit Breaker: 125A 1P, 60Vdc
- Scalability: Max. 32 pcs pack ( Max.340kWh ) in parallel
- Nominal Energy: 10.64 kWh
- Usable Energy: 9.58 kWh
- Capacity: 208 Ah
- Nominal Voltage: 51.2 V
- Charge / Discharge Current ( A ) [2]
- Max. Continuous: 100 / 100
- Peak: 200 / 200 (10 sec )
- Operating Voltage Range: 44.8 – 57.6 V
- Max Continuous Charge/Discharge Current: 100 A
- Peak Charge/Discharge Current (10 sec): 200 A
- Max Charge Current (2 mins): 200 A
- Max Discharge Current (2 mins): 240 A
- Recommended Depth of Discharge: 90%
- Cycle Life: ≥6000 ( 25℃±2℃, 0.5C / 0.5C, 90%DOD, 70%EOL )
- Energy Throughput: 16MWh ( 25℃, 0.5C / 0.5C, 70%EOL )
- Installation: Wall-mounted or floor-mounted
- Dimensions (W × H × D): 600 × 750 × 200 mm
- Weight: 96 kg
- LED Indicator: LED ( SOC : 20% ~ SOC100% and working state )
- Enclosure Rating: IP20
- Operating Temperature: Charge: 0–55°C / Discharge: -20–55°C
- Recommended Operating Temperature: 15–35°C
- Storage Temperature: 0–35°C
- Relative Humidity: 95% non-condensing
- Max Altitude: ≤2000 m
- Communication Ports: CAN2.0, RS485
- Warranty: 5 years
- Certifications: UN38.3, MSDS
IMPORTANT NOTICE
IMPORTANT NOTICE
Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.
Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.
The images shown are for illustration purposes only and may not be an exact representation of the product.
Crystal Communications (Pty) Ltd may not have all the specific items or quantities of stock you have requested. Our dedicated Customer Service Team will use our extensive network to try to source the stock for you ASAP. You will be notified within 24 hours if we cannot source the required item, and a full refund will be processed on your order. Should you wish to contact us directly, please call 0118670488 or email sales@crystalcom.co.za
