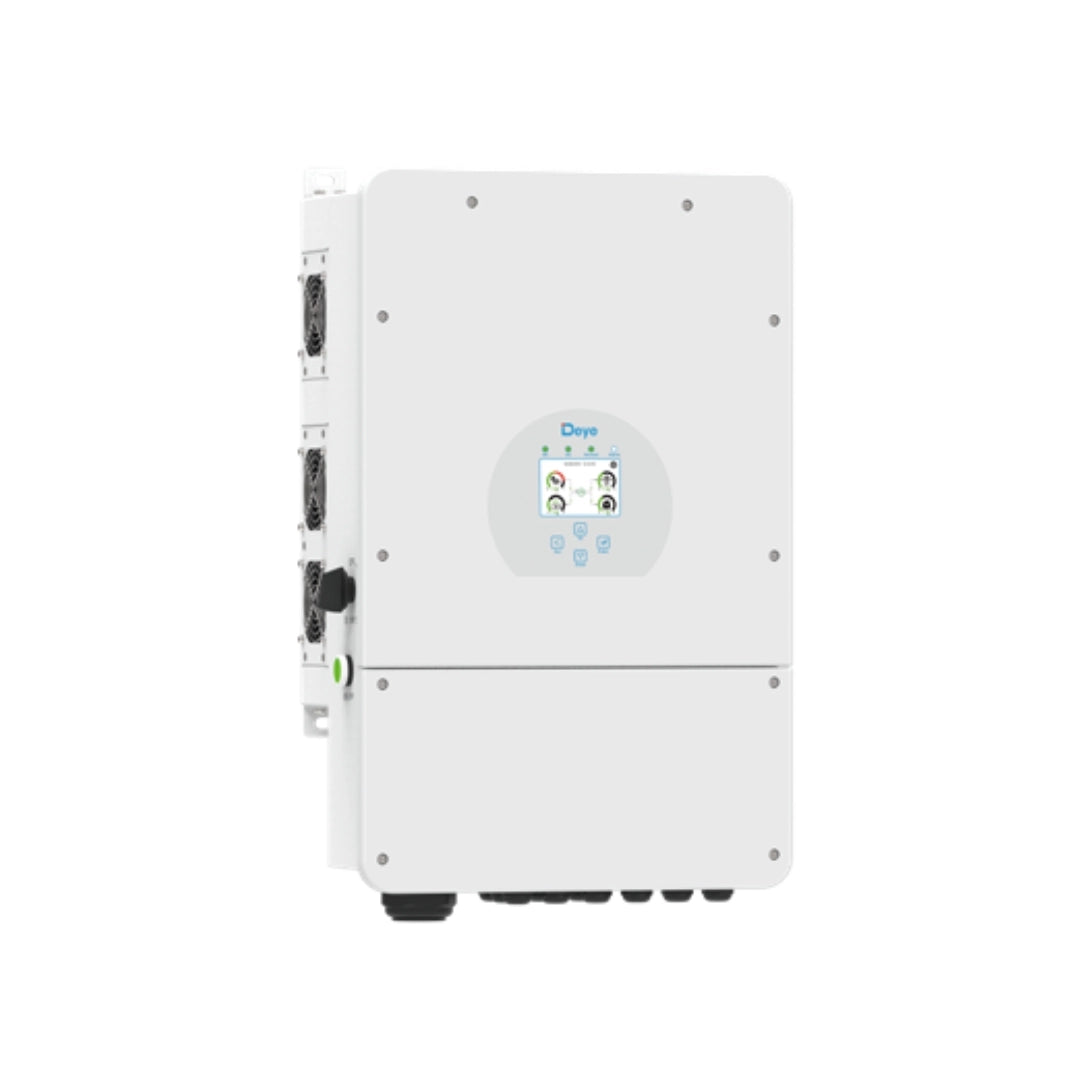

Deye 10kW Sigle Phase Hybrid Inverter

Deye 10kW Sigle Phase Hybrid Inverter

The Deye 10KW Hybrid Inverter is a single-phase hybrid inverter designed for both on-grid and off-grid applications. It supports intelligent energy management, enabling seamless integration with solar PV systems, batteries, and even diesel generators. With high charging/discharging currents and advanced features like multiple MPPT trackers, the inverter maximizes energy efficiency and flexibility. It’s ideal for residential and small commercial energy storage solutions.

Product Features:

• Max. charging/discharging current: 220A
• Compatible with both Lead-acid and Lithium-ion batteries
• AC couple functionality for retrofitting existing solar systems
• Supports parallel connection up to 16 units for both on-grid and off-grid operations
• Intelligent BMS communication with lithium battery self-adaptive charging
• Integrated touchscreen LCD display
• IP65 rated for outdoor installation
• Time-based battery charge/discharge with 6 programmable time periods
• Monitors via Wi-Fi, GPRS, Bluetooth, 4G, or LAN
• Advanced protection features including DC reverse polarity, overcurrent, arc fault, and ground fault monitoring


Specifications:

Battery Input:

• Battery Type: Lead-acid / Lithium-ion
• Battery Voltage Range: 40–60V
• Max Charging/Discharging Current: 220A / 220A
• Battery Inputs: 1
• Charging Strategy: Self-adaptive to BMS

PV Input:

• Max PV Input Power: 20,000W
• Max PV Input Voltage: 500V
• Start-up Voltage: 125V
• MPPT Voltage Range: 150–425V
• Rated PV Voltage: 370V
• Max Operating PV Current: 26A + 26A + 26A
• Max Input Short-Circuit Current: 44A + 44A + 44A
• MPPT Trackers / Strings per Tracker: 3/2 + 2+ 2

AC Input/Output:

• Rated Power: 10,000W
• Max Apparent Power: 11,000VA
• Rated/Max Current: 45.5A / 43.5A
• Peak Power (Off-grid): 2x rated power for 10s
• Power Factor: 0.8 leading ~ 0.8 lagging
• Grid Connection: L+N+PE
• Voltage: 220/230V
• Frequency: 50/60Hz

Efficiency:

• Max Efficiency: 97.6%
• Euro Efficiency: 96.5%
• MPPT Efficiency: >99%
• THDi: <3%
• DC Injection Current: <0.5% In

Mechanical & Environmental:

• Dimensions: 420×670×233 mm
• Weight: 35.6 kg
• Operating Temperature: -40°C to +60°C (derating above 45°C)
• Humidity: 0–100%
• Max Altitude: 2000m
• Noise: <45 dB
• Cooling: Intelligent air cooling
• Ingress Protection: IP65

Safety & Protection:

• Surge Protection: Type II (DC and AC)
• Certifications: VDE4105, IEC61727/62116, CEI 0-21, EN50549-1, G99, G98, and more
• Integrated protections: DC polarity reverse, short circuit, overvoltage, islanding, and RCD detection

Communication:

• Monitoring: Wi-Fi / GPRS / Bluetooth / 4G / LAN (optional)
• Interface: RS485, RS232, CAN
