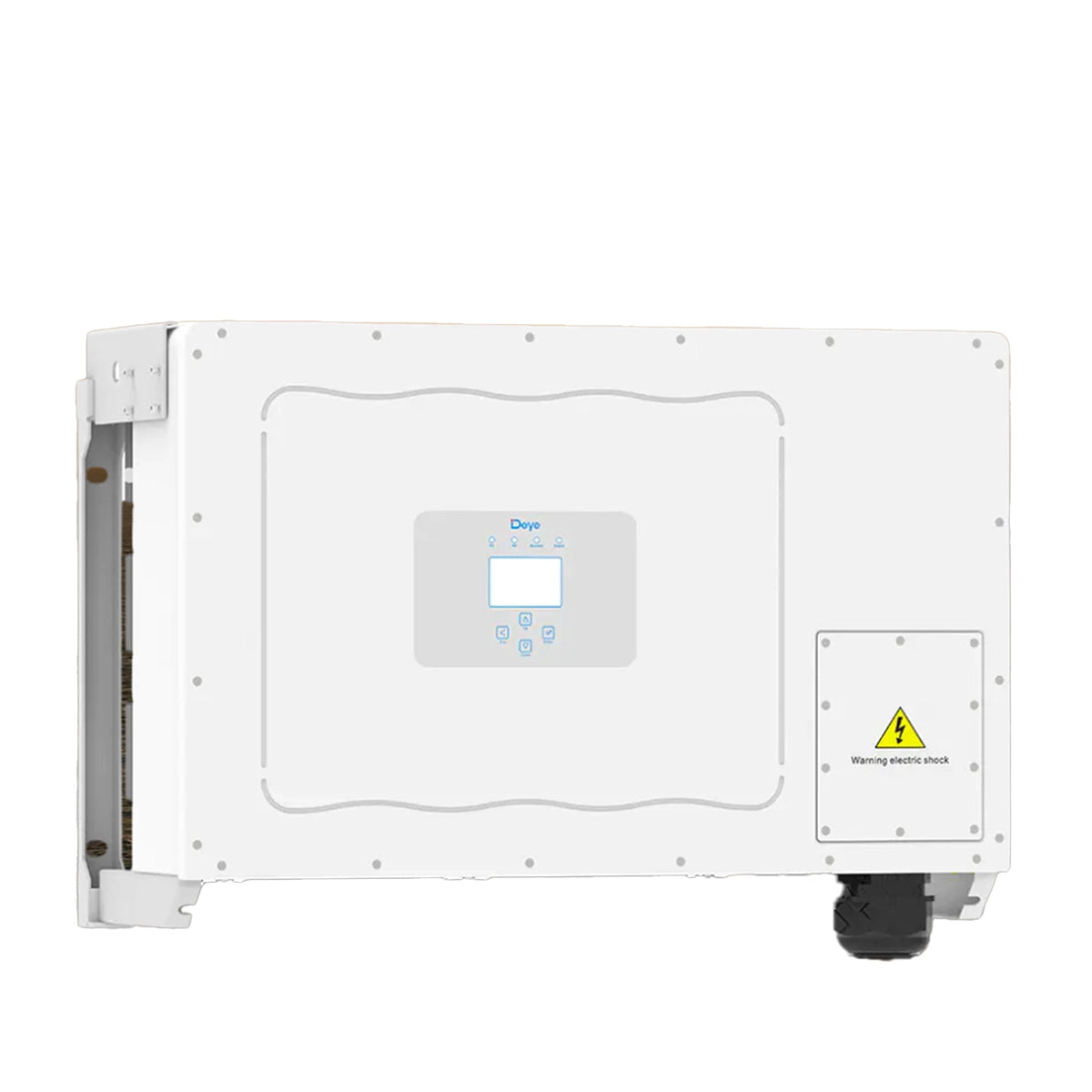

Deye: 110Kw Three Phase Grid Tie Inverter

- Model: SUN-110K-G03
- Max. PV Input Power: 150 kW
- Max. PV Input Voltage: 1100 V
- Start-up Voltage: 250 V
- MPPT Voltage Range: 200 V – 850 V
- No. of MPPT Trackers / Strings per Tracker: 6 / 4+4+4+4+4+4
- Rated AC Output Active Power: 110 kW
- Max. AC Output Apparent Power: 121 kVA
- Rated Output Voltage / Range: 220/380V, 230/400V (0.85Un – 1.1Un)
- Grid Connection Form: 3L/N/PE
- Rated AC Output Current: 150 A
- Max. AC Output Current: 166.7 A
- THDi (Total Harmonic Distortion): <3%
- Power Factor Adjustment Range: 0.8 leading to 0.8 lagging
- Max. Efficiency: 98.8%
- Euro Efficiency: 98.2%
- MPPT Efficiency: > 99%
- Cooling Method: Intelligent Air Cooling
- Protection Rating: IP65
- Over Voltage Category: OVC II (DC), OVC III (AC)
- Noise Level: ≤55 dB
- Operating Temperature Range: -25°C to +60°C (derating above 45°C)
- Humidity: 0 – 100% (non-condensing)
- Altitude: ≤4000 m
- Dimensions (W x H x D): 824 × 516 × 312.7 mm (excluding connectors and brackets)
- Weight: 81 kg
- Communication Interface: RS485/RS232
- Monitoring Options: GPRS/WiFi/Bluetooth/4G/LAN (optional)
- Certifications &amp; Standards: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105, IEC/EN 61000-6 series, IEC/EN 62109-1/2
- Warranty: 5 years

Note: Delivery Not Included - Once your order has been placed, our sales team will contact you to confirm delivery fees.

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact representation of the product.

Crystal Communications (Pty) Ltd may not have all the specific items or quantities of stock you have requested. Our dedicated Customer Service Team will use our extensive network to try to source the stock for you ASAP. You will be notified within 24 hours if we cannot source the required item, and a full refund will be processed on your order. Should you wish to contact us directly, please call 0118670488 or email sales@crystalcom.co.za
