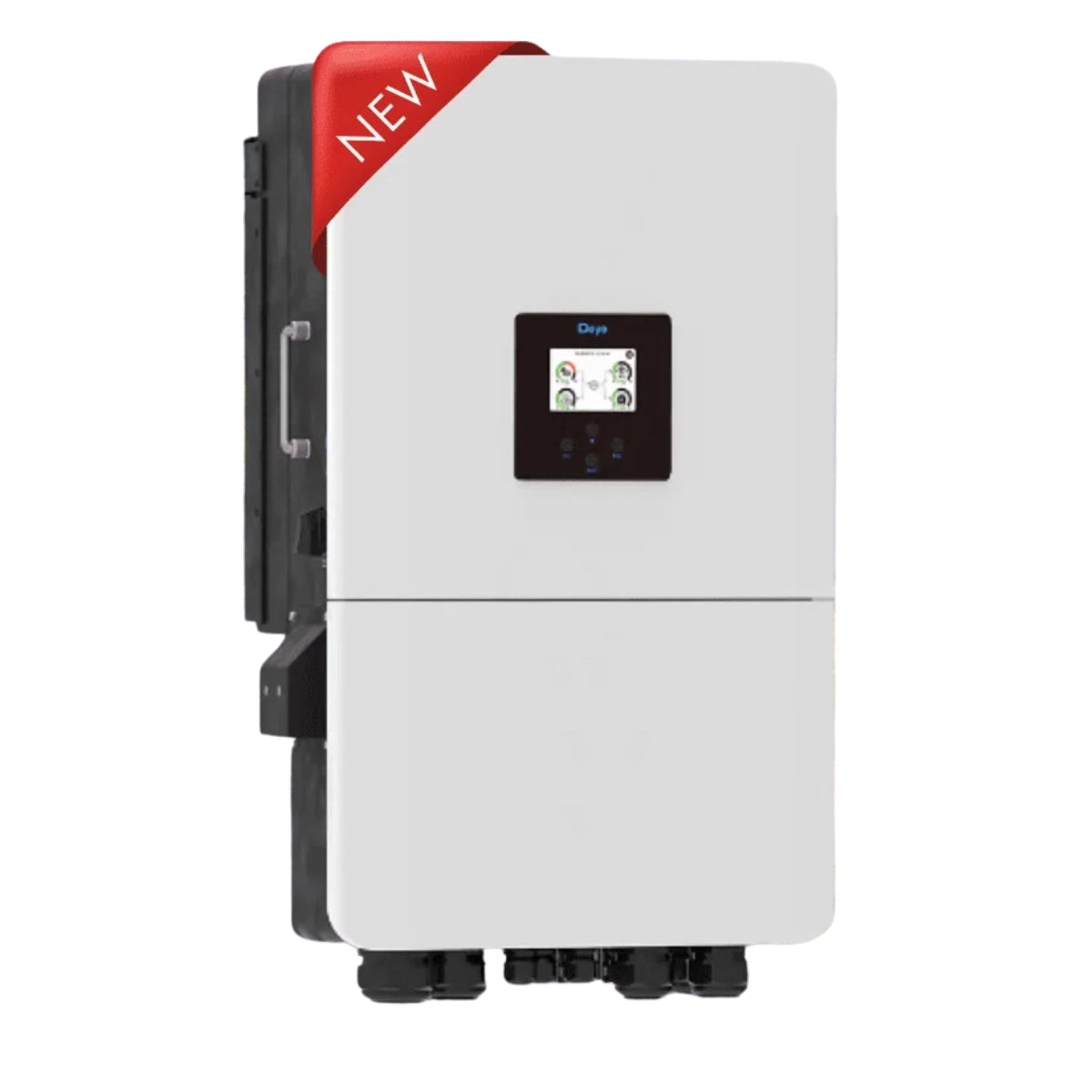

Deye 15Kw 48V Three Phase Low Voltage Hybrid Inverter (NEW) - SUN-15K-SG05LP3-EU-SM2

Deye 15Kw 48V Three Phase Low Voltage Hybrid Inverter (NEW) - SUN-15K-SG05LP3-EU-SM2

The Deye 15Kw Three Phase Hybrid Inverter is built for high-demand residential and commercial installations that require flexibility, strong output performance, and advanced battery control. Designed for 48V low-voltage battery systems, this inverter delivers reliable power management across on-grid and off-grid applications.

Product Features:

• 100% unbalanced output per phase (up to 50% rated power)
• AC-coupling for easy system retrofits
• Parallel up to 10 units
• Supports multiple batteries in parallel
• 350A max charge / discharge current
• 48V low voltage battery with transformer isolation
• 6 programmable charge / discharge time periods
• Supports energy storage from diesel generator


Specifications:

• Battery Input Data

• Battery Type: Lead-acid or Lithium-ion
• Battery Voltage Range (V): 40-60
• Max. Charging Current (A): 300
• Max. Discharging Current (A): 300
• Charging Strategy for Li-ion Battery: Self-adaption to BMS
• Number of Battery Input: 1

• PV String Input Data

• Max. PV Access Power (W): 30000
• Max. PV Input Power (W): 24000
• Max. PV Input Voltage (V): 800
• Start-up Voltage (V): 160
• MPPT Voltage Range (V): 160-650
• Rated PV Input Voltage (V): 550
• Max. Operating PV Input Current (A): 36+36
• Max. Input Short-Circuit Current (A): 54+54
• No. of MPP Trackers/No. of Strings MPP Tracker: 2/2+2

• AC Input/Output Data

• Rated AC Input/Output Active Power (W): 15000
• Max. AC Input/Output Apparent Power (VA): 16500
• Rated AC Input/Output Current (A): 22.8/21.8
• Max. AC Input/Output Current (A): 25/24
• Max. Continuous AC Passthrough (grid to load) (A): 70
• Peak Power (off-grid) (W): 2 times of rated power, 10s
• Power Factor Adjustment Range: 0.8 leading to 0.8 lagging
• Rated Input/Output Voltage/Range (V): 220/380V, 230/400V 0.85Un-1.1Un
• Rated Input/Output Grid Frequency/Range(Hz): 50/45-55, 60/55-65
• Grid Connection Form: 3L+N+PE
• Total Current Harmonic Distortion THDi: <3% (of nominal power
• DC Injection Current: <0.5% In

• Efficiency

• Max. Efficiency: 97.6%
• Euro Efficiency: 97.0%
• MPPT Efficiency; >99%

• Interface

• Communication Interface: RS485/RS232/CAN
• Monitor Mode: GPRS/WIFI/Bluetooth/4G/LAN(optional)

• General Data

• Operating Temperature Range (℃): -40 to +60℃, >45℃ Derating
• Noise (dB): <60
• Ingress Protection(IP) Rating: IP65
• Inverter Topology: Non-Isolated
• Cabinet Size (WxHxD mm): 456×750×268.5 (Excluding Connectors and Brackets)
• Weight (kg): 51.9
• Type of Cooling: Intelligent Air Cooling
• Warranty: 5 Years/10 Years, the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
• Grid Regulation: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
• Safety / EMC Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
