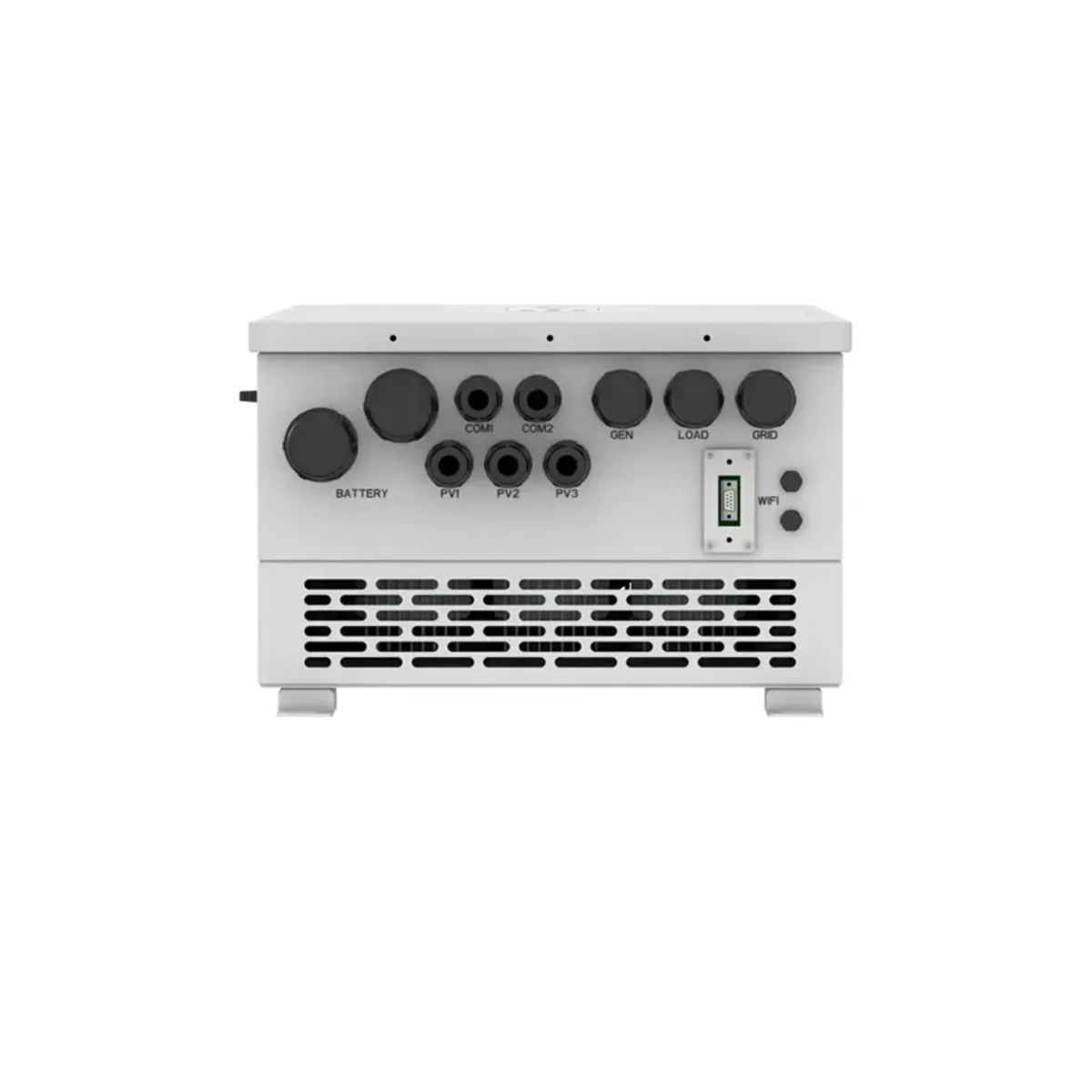

Deye 16Kw Single Phase Hybrid Inverter 48V

Deye 16Kw Single Phase Hybrid Inverter 48V - SUN-16K-SG01LP1-EU

The SUN 12/14/16K-SG hybrid inverter is designed for residential and light commercial applications, aiming to optimize the self-consumption of solar energy and enhance energy independence. Throughout daylight hours, the photovoltaic (PV) system generates electricity to fulfil immediate load requirements. Surplus energy is then directed to charge the battery through the SUN 12/14/16K-SG inverter. Subsequently, the stored energy becomes available for release when needed by the loads. In the event of a grid blackout, the battery can also be charged by a diesel generator to ensure a continuous power supply.

Product Features:

• Colourful touch LCD, IP65 protection degree
• AC couple to retrofit existing solar system
• Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
• Max. charging/discharging current of 290A
• 6 time periods for battery charging/discharging
• Support storing energy from diesel generator

Specifications:

• Battery Input Data:
• Battery Type: Lead-acid or Lithium-ion
• Battery Voltage Range (V): 40-60
• Max. Charging Current (A): 290
• Max. Discharging Current (A): 290
• PV String Input Data:

• Max. DC Input Power (W): 20800
• Max. DC Input Voltage (V): 500
• Start-up Voltage (V): 125
• MPPT Voltage Range (V): 150-425
• Max. Operating PV Input Current (A): 26+26+26
• No. of MPP Trackers/ No. of Strings per MPP Tracker: 3/2+2+2
• AC Input/Output Data:
• Rated AC OutputPower (W): 16000
• AC Output Rated Current (A): 69.6
• Max. Continuous AC Passthrough (A): 100
• General

• Noise (dB): <30
• Ingress Protection(IP) Rating: IP65
• Cabinet Size (WxHxD mm): 464W×798.4H×300D
• Weight (kg): 48.5
