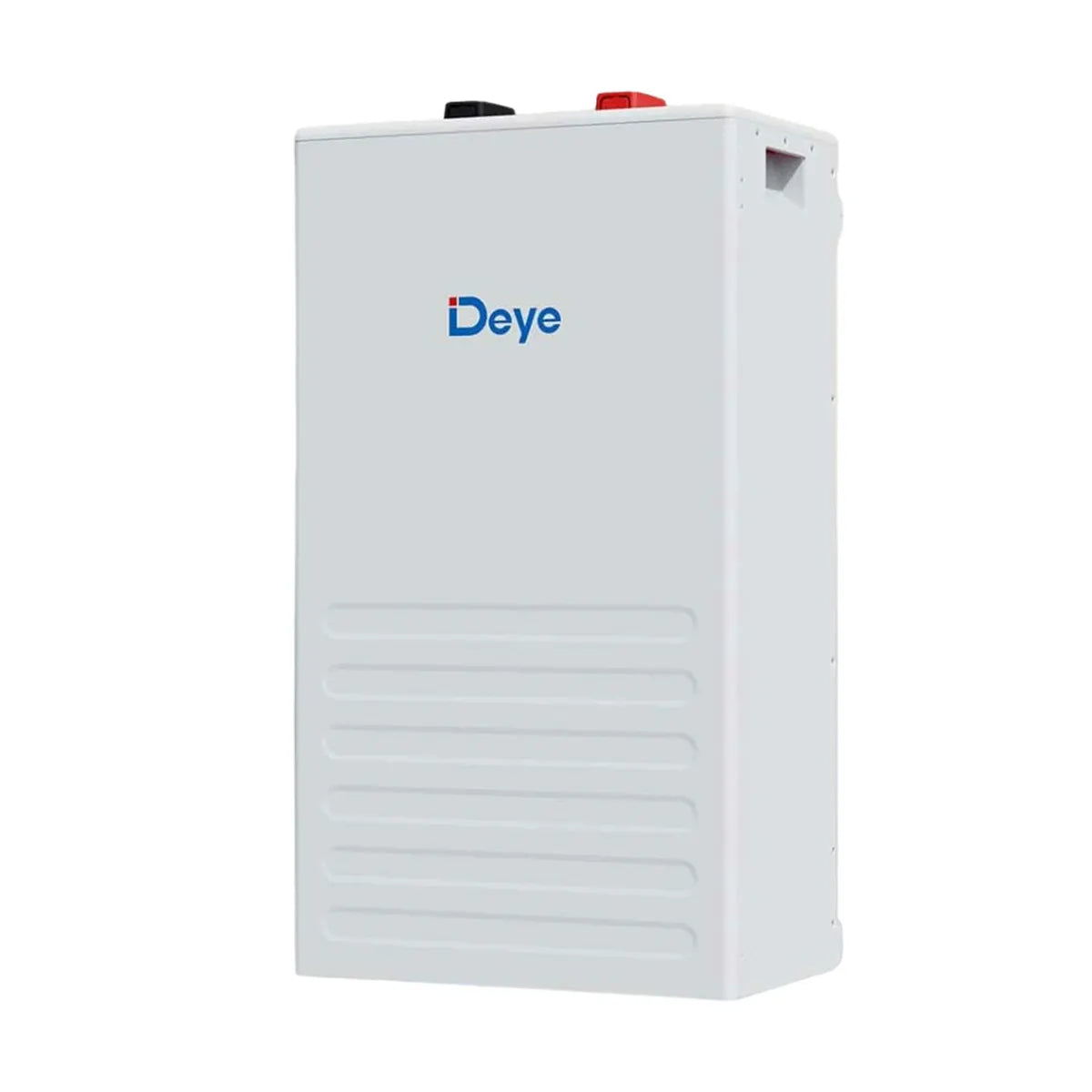

Deye 16kWh 51.2V 314Ah Lithium Ion Low Voltage Battery

Deye 16kWh 51.2V 314Ah Lithium Ion Low Voltage Battery

The Deye 16kWh 51.2V 314Ah Lithium-Ion Battery delivers reliable, high-capacity energy storage for residential and commercial applications. Built with advanced LiFePO₄ technology, it offers over 6000 charge cycles and a powerful 230A continuous discharge current for dependable performance. The integrated Battery Management System (BMS) with active fuse protection ensures optimal safety and efficiency, while Bluetooth, CAN2.0, and RS485 connectivity make system monitoring effortless. With flexible wall, floor, or stack mounting options and the ability to connect up to 32 units in parallel, this battery is ideal for scalable energy solutions.

Product Features:

• Comprehensive Protection - Advanced BMS with active fuse
• Superior Performance - Support Max. 1C charge & 1.2C discharge (SE-F5 & F5 Plus), GaN MOSFETs: 50% loss reduction, high-temp resistance
• Optimized Energy Density - Integrated PACK: reduced line loss, enhanced energy density
• Flexible Expansion - Max. 32 units in parallel
• Easy Maintenance - Auto-networking, Local monitoring mode for battery, remote monitoring mode for ESS
• Reliable Durability - Operates reliably in -20℃ to 55℃, natural cooling

Specifications:

• Main Parameters

  • Battery Chemistry: LiFePO4

  • Capacity: 314 Ah
  • Scalability: Max. 32 pcs in parallel
  • Nominal Voltage: 51.2 V
  • Operating Voltage: 44.8 V ~ 57.6 V
  • Nominal Energy: 16 kWh
  • Charge Current:
    • Max. Continuous: 160 A
    • Peak: 280 A ( 10 sec )
  • Discharge Current:
    • Max. Continuous: 230 A
    • Peak: 280 A ( 10 sec )

• Other Parameters

  • Recommend Depth of Discharge: 90% DoD

  • Dimension ( W × H × D ) (Without hanging board): 400 × 708 × 233 mm
  • Weight Approximate: 109 kg
  • LED Indicator: LED ( SOC, working, protecting ) & Buzzer
  • IP Rating of Enclosure: IP21
  • Operating Temperature: Charge: 0～55℃ / Discharge: -20～55℃
  • Storage Temperature: 0～35℃
  • Cycle Life: ≥6000(25℃±2℃,70%EOL)
  • Installation: Wall-Mounted, Floor-Mounted, Stack-Mounted
  • Communication: CAN2.0, RS485, Bluetooth+APP
  • Warranty Period: 5 years / 10 years (extended warranty)
  • Energy Throughput: 25 MWh
  • Certification: UN38.3, MSDS, CE, CB
