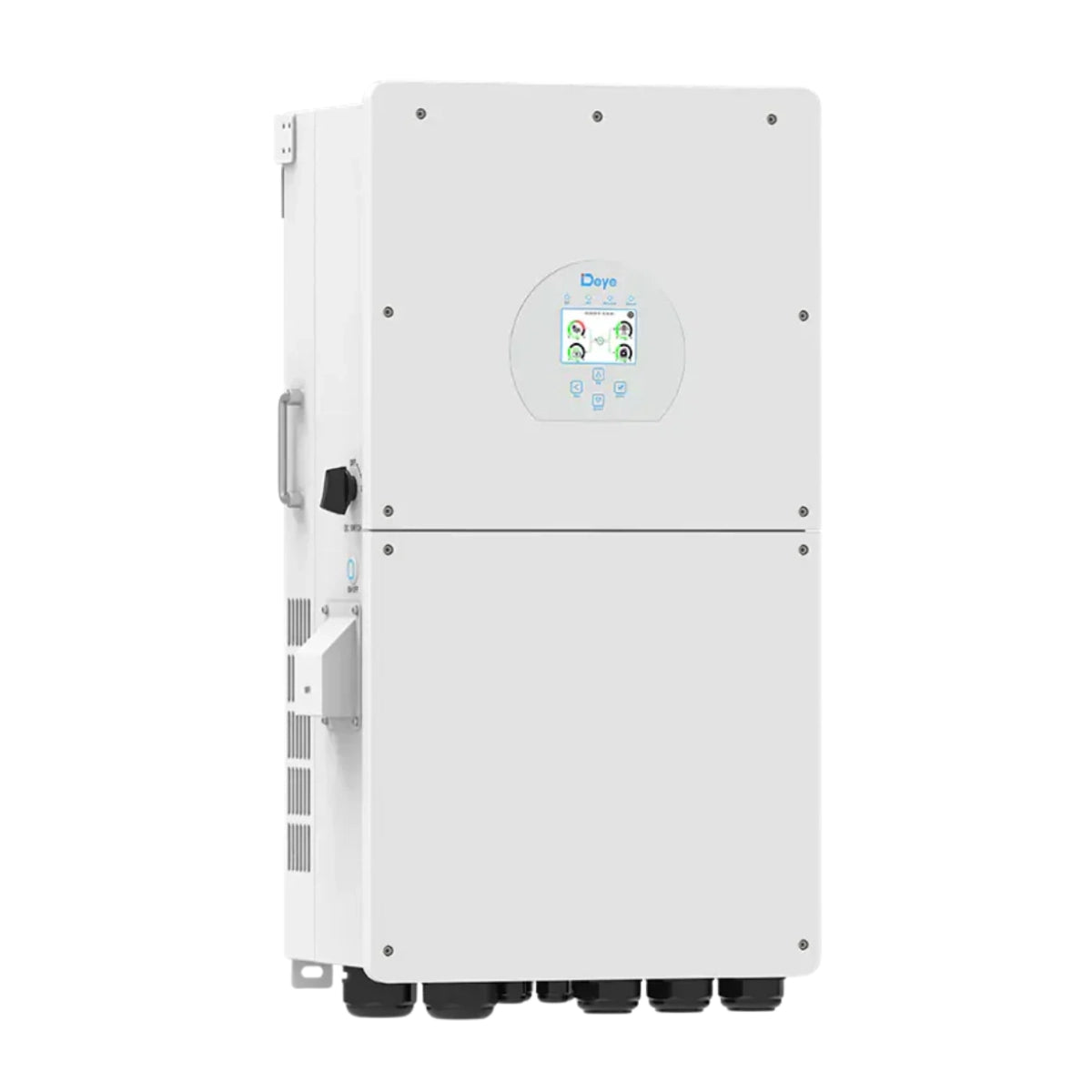

Deye 18Kw 48V Single Phase Low Voltage Hybrid Inverter

Deye 18Kw 48V Single Phase Low Voltage Hybrid Inverter

R 42,723.00
R 45,000.00 R 42,723.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Deye 18Kw 48V Single Phase Low Voltage Hybrid Inverter

The Deye 18kw is a high-capacity, heavy-duty single-phase low-voltage hybrid inverter engineered for demanding residential and commercial solar-plus-storage applications. Combining advanced energy management, superior solar harvesting via 3 MPPT trackers, and massive 48V battery charging/discharging capabilities (up to 380A), it provides robust backup power during grid failures. It supports parallel operations for both on-grid and off-grid configurations, making it scalable for larger energy demands.

Product Features:

  • High Battery Power: Supports up to 380A charge and discharge current for low-voltage batteries.
  • Triple MPPT Design: Includes 3 independent MPPT trackers for flexible solar panel layouts.
  • Scalable Operation: Supports parallel connection of up to 16 units for larger energy setups.
  • Smart Scheduling: Features 6 customizable time periods for battery charging and discharging.
  • AC Coupling: Compatible with retrofitting existing grid-tied solar systems.
  • Generator Support: Allows seamless energy management with backup generators.
  • Touch Screen Interface: Equipped with a color touch LCD screen for local settings and monitoring.
  • Weatherproof Design: IP65-rated enclosure suitable for indoor and outdoor installation.

PRODUCT SPECIFICATIONS

Battery Input Data
- Battery Type: Lead-acid or Lithium-ion
- Battery Voltage Range: 40 to 60 V
- Max. Charging / Discharging Current: 380 A
- Battery Inputs: 2

PV String Input Data
- Max. PV Access Power: 36,000 W
- Max. PV Input Power: 28,800 W
- Max. PV Input Voltage: 500 V
- MPPT Voltage Range: 150 to 425 V
- Start-up Voltage: 125 V
- Max. Operating PV Input Current: 36A + 36A + 36A
- Number of MPP Trackers / Strings: 3 / (2+2+2)

AC Input / Output Data
- Rated AC Input/Output Active Power: 18,000 W
- Max. AC Input/Output Apparent Power: 19,800 VA
- Rated AC Input/Output Current: 81.9A / 78.3A
- Max. AC Input/Output Current: 90A / 86.1A
- Peak Power (Off-Grid): 2 times rated power, 10 seconds

Efficiency
- Max. Efficiency: 97.6%
- Euro Efficiency: 96.5%
- MPPT Efficiency: >99%

General Data
- Dimensions (W × H × D): 464 × 863 × 282 mm
- Weight: 59.8 kg
- Ingress Protection (IP) Rating: IP65
- Operating Temperature Range: -40°C to +60°C
- Cooling: Intelligent Air Cooling
- Communication Interfaces: RS485, RS232, CAN, Wi-Fi

IMPORTANT NOTICE

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and
installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to
local wiring regulations and standards. Crystal Communications and its Supplier will not be held
liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual
needs and requirements may differ, it is recommended that our sales team is contacted for any
specific questions before a purchase is made to ensure that the item being purchased will satisfy
your requirements.

The images shown are for illustration purposes only and may not be an exact
representation of the product.

Crystal Communications (Pty) Ltd may not have all the specific items or quantities of stock you have
requested. Our dedicated Customer Service Team will use our extensive network to try to source the
stock for you ASAP. You will be notified within 24 hours if we cannot source the required item, and a
full refund will be processed on your order. Should you wish to contact us directly, please call
