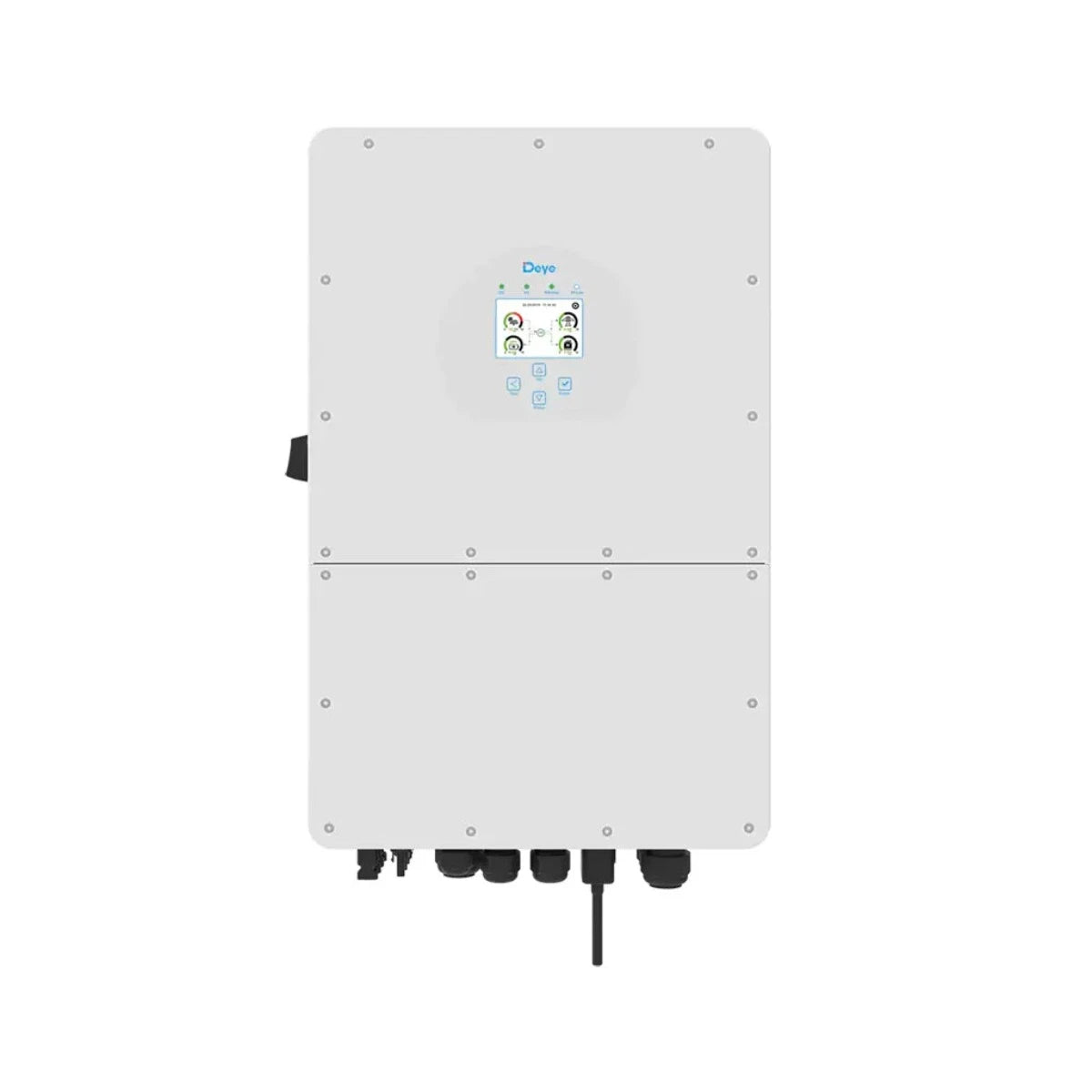

Deye 20Kw Three Phase HV Hybrid Inverter

Deye 20Kw Three Phase HV Hybrid Inverter

R 36,018.00
R 36,018.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Deye 20Kw Three Phase HV Hybrid Inverter

Product Features:

  • 100% unbalanced output, each phase
  • AC couple to retrofit existing solar system
  • *Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
  • Max. charging/discharging current of 50A
  • High voltage battery, higher efficiency
  • 6 time periods for battery charging/discharging
  • Support storing energy from diesel generator

PRODUCT SPECIFICATIONS

Battery Input Data:
- Battery Type: Lead-acid or Lithium-ion
- Battery Voltage Range (V): 160~700
- Max. Charging Current (A): 37
- Max. Discharging Current (A): 37
- Number of Battery Input: 1

PV String Input Data:
- Max. DC Input Power (W): 26000
- Max. DC Input Voltage (V): 1000
- Start-up Voltage (V): 180
- MPPT Voltage Range (V): 150-850
- Max. Operating PV Input Current (A): 26+26+26
- No. of MPP Trackers/ No. of Strings per MPP Tracker: 2/2+2

AC Input/Output Data:
- Rated AC Input/Output Active Power (W): 20000
- Max. AC Input/Output Apparent Power (VA): 22000
- Rated AC Input/Output Current (A): 30.4/29
- Max. AC Input/Output Current (A): 33.4/31.9
- Max. Continuous AC Passthrough (grid to load) (A): 35

General
- Noise (dB):< 55
- Ingress Protection(IP) Rating: IP65
- Cabinet Size (WxHxD mm): 408×638×237 (Excluding Connectors and Brackets)
- Weight (kg)" 30.5

IMPORTANT NOTICE

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards.

Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact representation of the product.

Crystal Communications (Pty) Ltd may not have all the specific items or quantities of stock you have requested. Our dedicated Customer Service Team will use our extensive network to try to source the stock for you ASAP. You will be notified within 24 hours if we cannot source the required item, and a full refund will be processed on your order. Should you wish to contact us directly, please call 0118670488 or email sales@crystalcom.co.za
