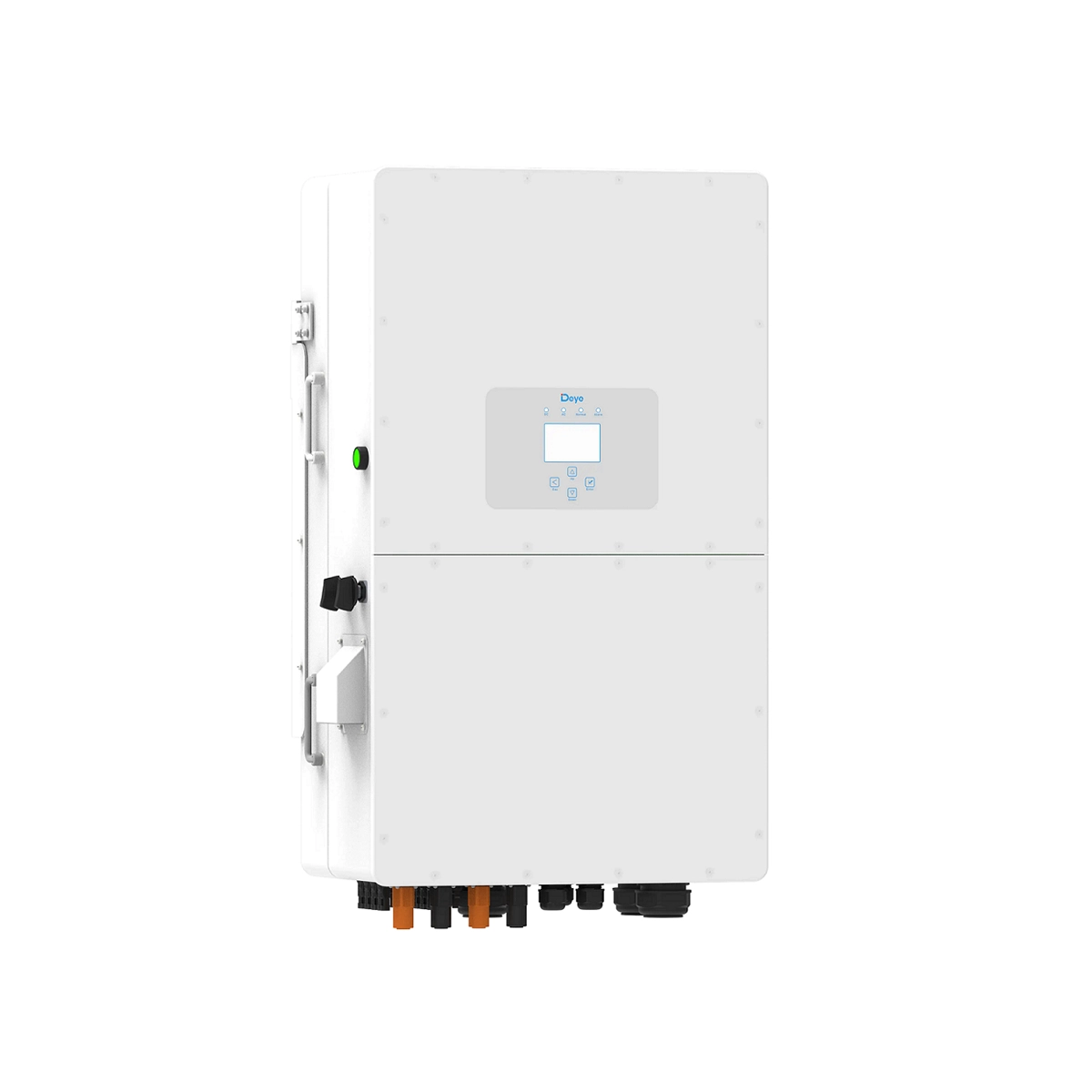

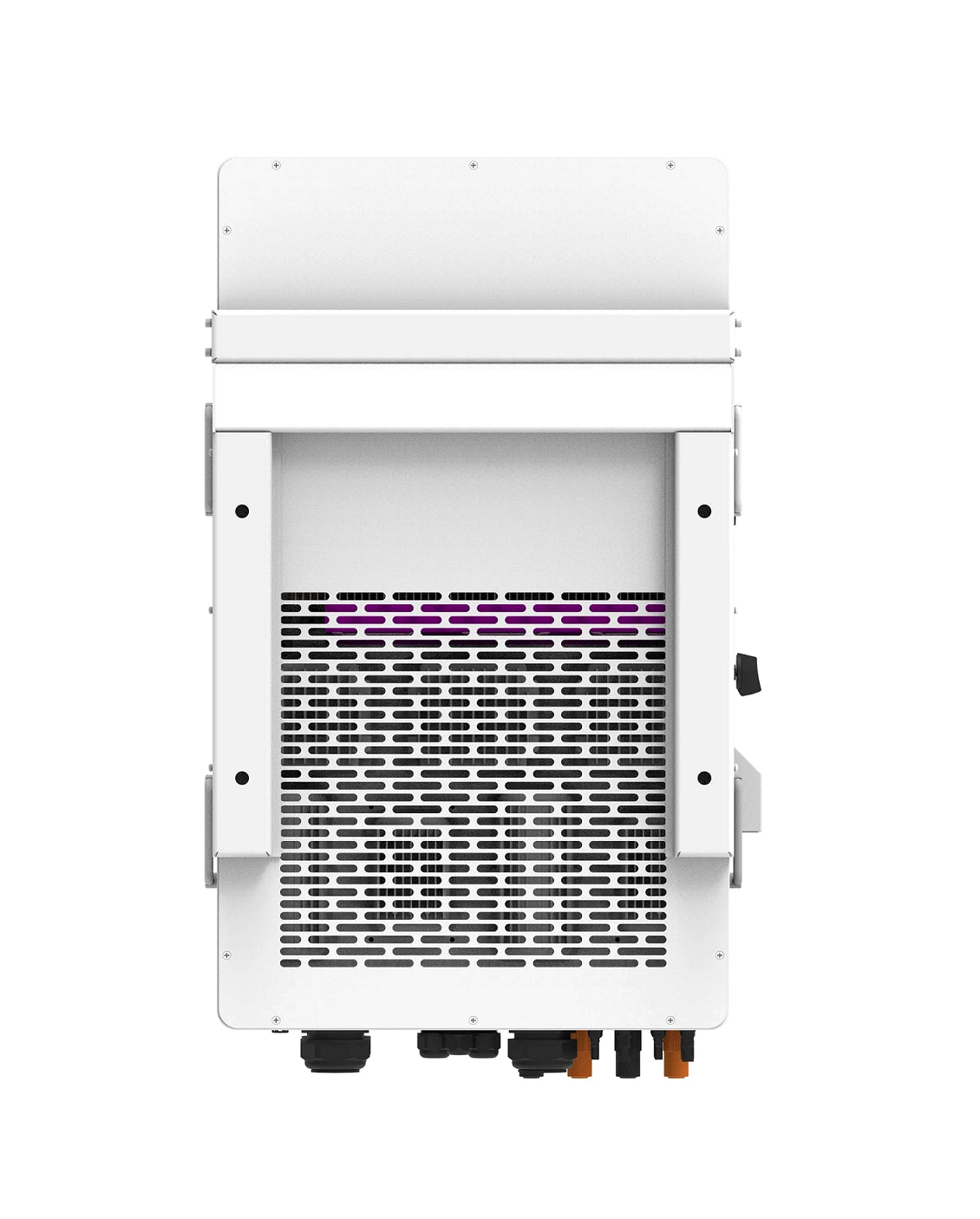

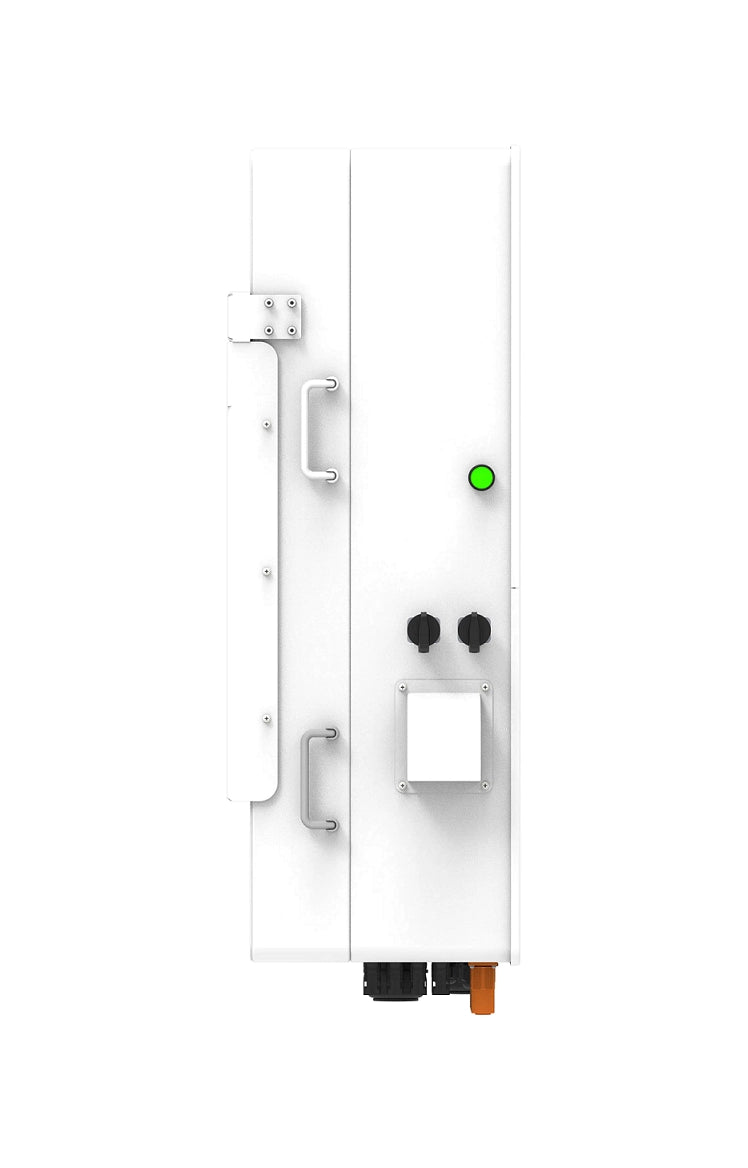

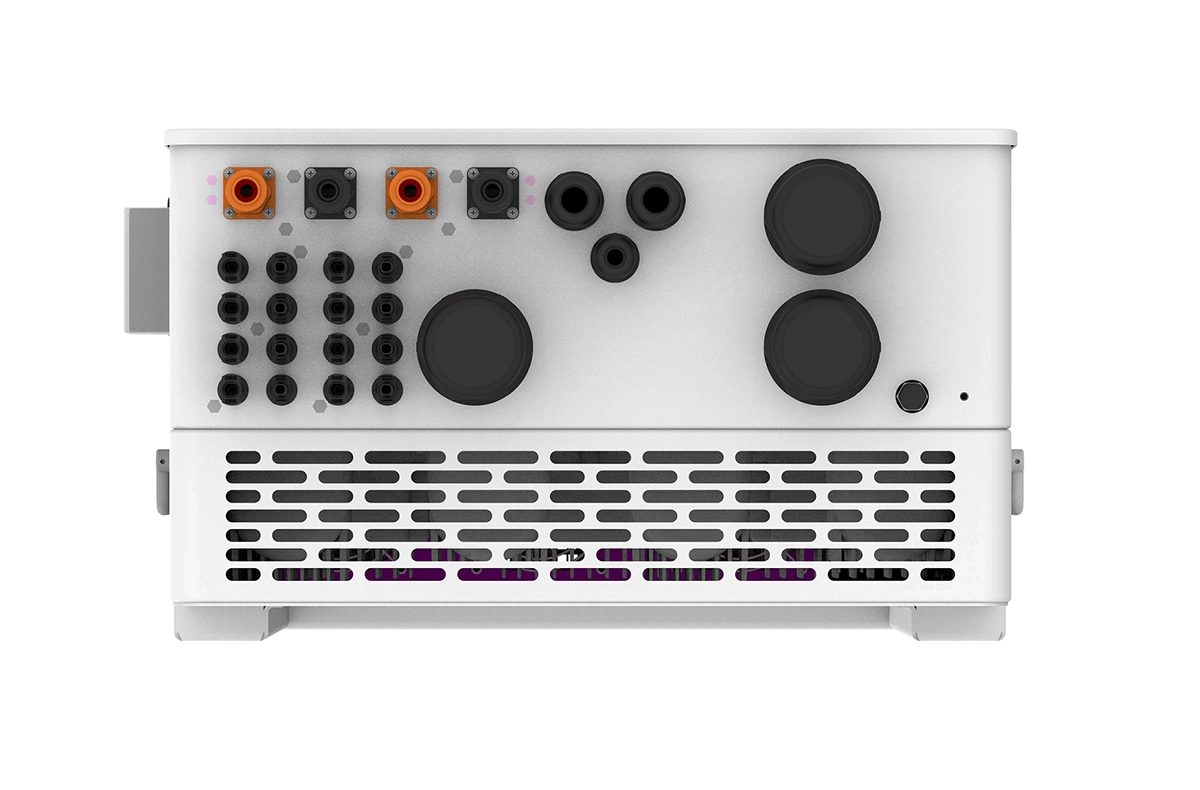

Deye 30Kw Three Phase HV Hybrid Inverter

Battery Input Data:
- Battery Type: Lithium-ion
- Battery Voltage Range (V): 160-800
- Max. Charging Current (A): 50+50
- Max. Discharging Current (A): 50+50
- Charging Strategy for Li-ion Battery: Self-adaption to BMS
- Number of Battery Input: 2

PV String Input Data:
- Max. PV Input Power (W): 39000
- Max. PV Input Voltage (V): 1000
- Start-up Voltage (V): 180
- MPPT Voltage Range (V): 150-850
- Rated PV Input Voltage (V): 600
- Max. Operating PV Input Current (A): 36+36+36
- Max. Input Short-Circuit Current (A): 55+55+55
- No. of MPP Trackers/No. of Strings per MPP Tracker: 3/2+2+2

AC Input/Output Data:
- Rated AC Input/Output Active Power (W): 30000
- Max. AC Input/Output Apparent Power (VA): 33000
- Rated AC Input/Output Current (A): 45.5/43.5
- Max. AC Input/Output Current (A): 50/47.9
- Max. Three-phase Unbalanced Output Current (A): 60
- Max. Continuous AC Passthrough (grid to load) (A): 200
- Peak Power (off-grid) (W): 1.5 times of rated power, 10s
- Power Factor Adjustment Range: 0.8 leading to 0.8 lagging
- Rated Input/Output Voltage/Range (V): 220/380V, 230/400V 0.85Un-1.1Un
- Rated Input/Output Grid Frequency/Range(Hz): 50/45-55, 60/55-65
- Grid Connection Form: 3L+N+PE
- Total Current Harmonic Distortion THDi: <3% (of nominal power)
- DC Injection Current: <0.5% In

Efficiency:
- Max. Efficiency: 97.60%
- Euro Efficiency: 97.0%
- MPPT Efficiency: >99%

General Data:
- Operating Temperature Range (℃): -40 to +60℃, >45℃ Derating
- Noise (dB): ≤65
- Ingress Protection(IP) Rating: IP 65
- Cabinet Size (WxHxD mm): 527×894×294 (Excluding Connectors and Brackets)
- Weight (kg): 80
- Type of Cooling: Intelligent Air Cooling
- Warranty: 5 Years/10 Years (Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy)

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards.
