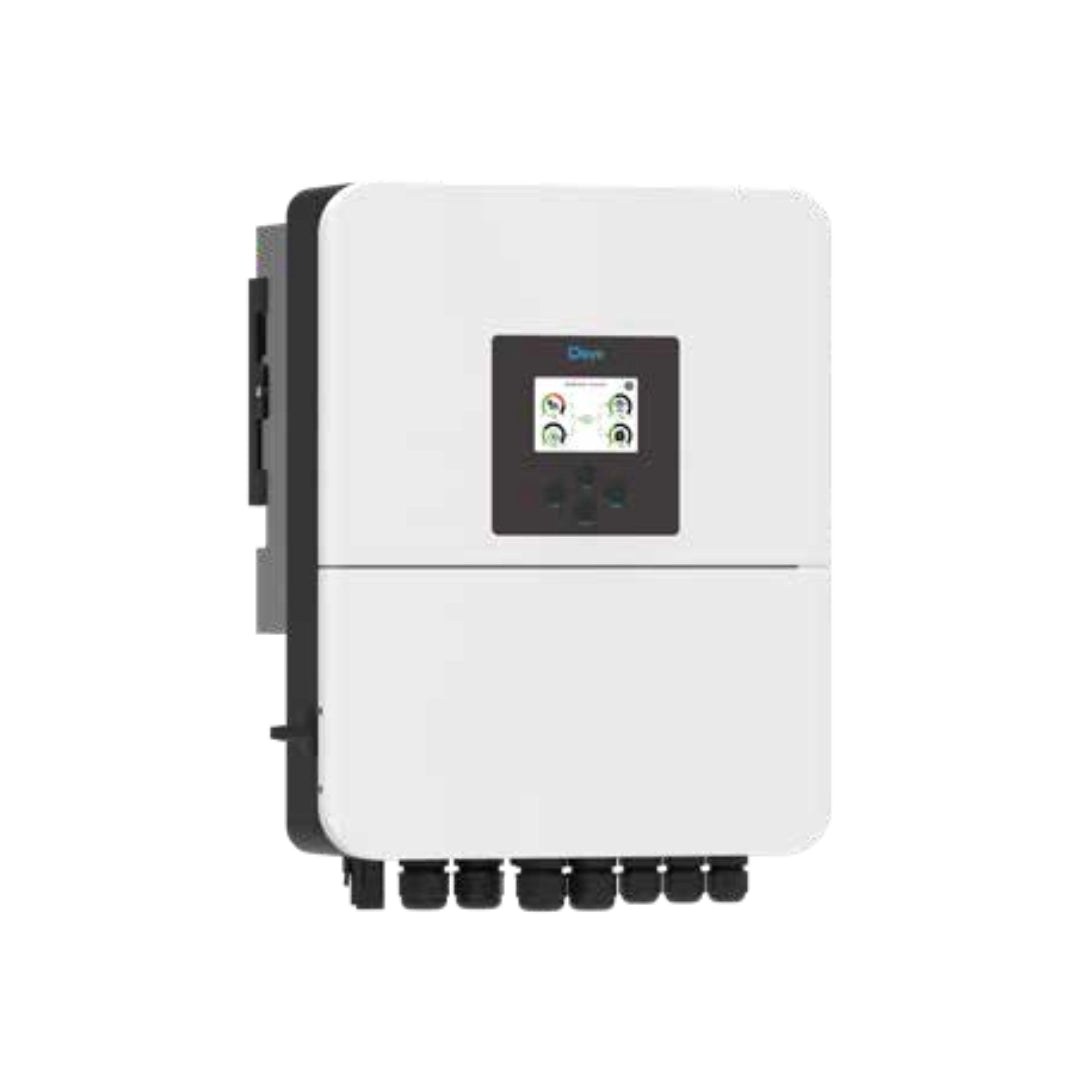

Deye 5Kw Single Phase Hybrid Inverter (NEW)

Deye: 5Kw Single Phase Hybrid Inverter (NEW) – VOC: 500V Battery

The Deye SUN-5K-SG04LP1-EU-SM2 is a powerful and intelligent single-phase hybrid inverter designed to manage solar power production, battery storage, and grid interaction with optimal efficiency. With its sleek IP65-rated design and colorful touch LCD, this 5kW inverter is ideal for residential and small commercial setups. It supports both lithium-ion and lead-acid batteries, integrates effortlessly with existing PV systems (AC coupling), and enables seamless on-grid or off-grid operation. Built with high-speed MPPT tracking and intelligent battery management, this hybrid inverter maximizes solar energy usage while providing backup power during outages.

Product Features:

• Color Touch LCD

• IP65 Protection Degree

• AC-Couple to retrofit existing Solar System

• Maximum 16 PCS Parallel for On-Grid and Off-Grid

• Supports multiple Batteries in Parallel

• Maximum Charging / Discharging current of 120A

• 6 time periods for Battery Charging / Discharging

• Supports storing energy from Diesel Generator

Specifications:

Battery Input

• Battery Type: Lithium / Lead-acid
• Battery Voltage Range: 40~60V
• Max. Charging/Discharging Current: 120A

• Charging Strategy for Li-ion Battery: Self-adaption to BMS

PV String Input

• Max. PV Input Power: 8000W
• PV Input Voltage: 500V
• MPPT Number / Max. Input Strings: 2/1+1
• Max. Input Current: 18+18
• Max. Short-Circuit Current: 27+27
• MPPT Voltage Range: 150-425

AC Input/Output Data

• Rated AC Input/Output Active Power (W): 5000
• Max. AC Input/Output Apparent Power (VA): 5500
• Rated AC Input/Output Current (A): 22.8/21.8
• Max. AC Input/Output Current (A): 25/24
• Max. Continuous AC Passthrough (grid to load) (A): 35
• Peak Power (off-grid) (W): 2 times of rated power, 10s
• Rated Input/Output Voltage/Range (V): 220/230    0.85Un-1.1Un
• Rated Input/Output Grid Frequency/Range(Hz): L+N+PE

Efficiency

• Max. Efficiency: 97.6%
• Euro Efficiency: 96.5%
• MPPT Efficiency: >99.9%
