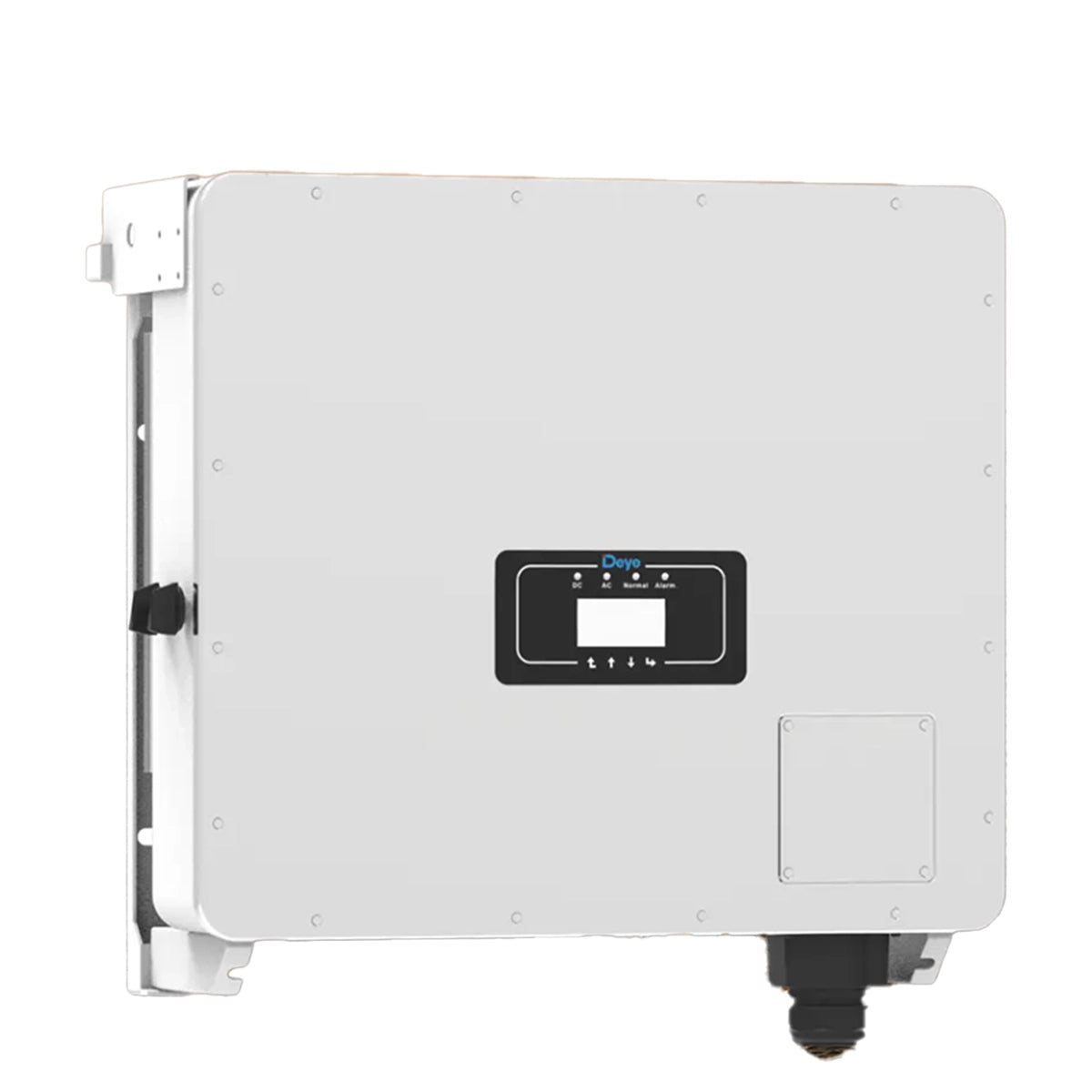

Deye: 60Kw Three Phase Grid Tie Inverter

Deye: 60Kw Three Phase Grid Tie Inverter – 4MPPT VOC: 1100V CT&WIFI Incl (SUN-60K-G04P3-EU-AM4)

The Deye SUN-60K-G04P3-EU-AM4 is a robust and highly efficient three-phase string inverter designed for commercial and industrial solar PV systems. Equipped with 4 MPPT trackers, advanced safety features, and remote monitoring options, it delivers outstanding performance with a maximum efficiency of up to 98.6%. With its IP65-rated enclosure, intelligent air cooling, and versatile grid compatibility, this inverter is built for reliable, long-term operation in demanding environments.

Product Features:

• 4 MPPT trackers for optimized power harvesting
• Maximum efficiency up to 98.6%, Euro efficiency 98.0%
• Wide MPPT voltage range of 200V to 1000V
• Supports zero export and VSG (virtual synchronous generator) applications
• Intelligent string-level monitoring (optional)
• Type II DC and AC surge protection
• Anti-PID function (optional)
• Intelligent air cooling system
• IP65 rated for outdoor installations
• Built-in protections: overcurrent, overvoltage, short circuit, insulation impedance, residual current detection, etc.
• Compatible with GPRS, WiFi, Bluetooth, 4G, and LAN monitoring (optional)
• Compliance with major international grid and safety standards


Specifications:

• Model: SUN-60K-G04P3-EU-AM4
• Max. PV Input Power: 90 kW
• Max. PV Input Voltage: 1100 V
• Start-up Voltage: 250 V
• MPPT Voltage Range: 200V – 1000V
• Rated PV Input Voltage: 600 V
• Max. Operating PV Input Current: 66 A
• Max. Input Short Circuit Current: 90.9/87 A
• No. of MPPT Trackers / Strings per Tracker: 4 / 3+3+3+3
• Rated AC Output Active Power: 60 kW
• Max. AC Output Apparent Power: 66 kVA
• Grid Connection Form: 3L/N/PE
• Rated Output Voltage / Range: 220/380V, 230/400V (0.85Un – 1.1Un)
• Rated Output Current: 88 A
• Max. AC Output Current: 100/95.7 A
• Total Harmonic Distortion (THDi): <3%
• Rated Output Frequency / Range: 50/45–55 Hz, 60/55–65 Hz
• Power Factor Adjustment Range: 0.8 leading to 0.8 lagging
• MPPT Efficiency: >99%
• Cooling Type: Intelligent Air Cooling
• Ingress Protection Rating: IP65
• Noise Level: ≤55 dB
• Operating Temperature Range: -25°C to +60°C (>45°C derating)
• Relative Humidity: 0–100%
• Altitude: ≤4000 m
• Cabinet Dimensions (W x H x D): 698 × 613 × 236.5 mm (excluding connectors and brackets)
• Weight: 53.7 kg
• Communication Interfaces: RS485 / RS232
• Monitoring Options: GPRS, WiFi, Bluetooth, 4G, LAN (optional)
• Certifications and Standards:
  • Grid Regulation: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
  • Safety/EMC: IEC/EN 61000-6 series, IEC/EN 62109-1 & 2
• Protection Features:
  • DC polarity reverse connection protection
  • AC output overcurrent and overvoltage protection
  • AC short circuit and thermal protection
  • DC insulation impedance monitoring
  • DC component monitoring
  • Ground fault and residual current detection
  • Island protection and power network monitoring
  • Optional AFCI (Arc Fault Circuit Interrupter)
  • Surge protection: Type II (DC and AC)
• Warranty: 5 Years
