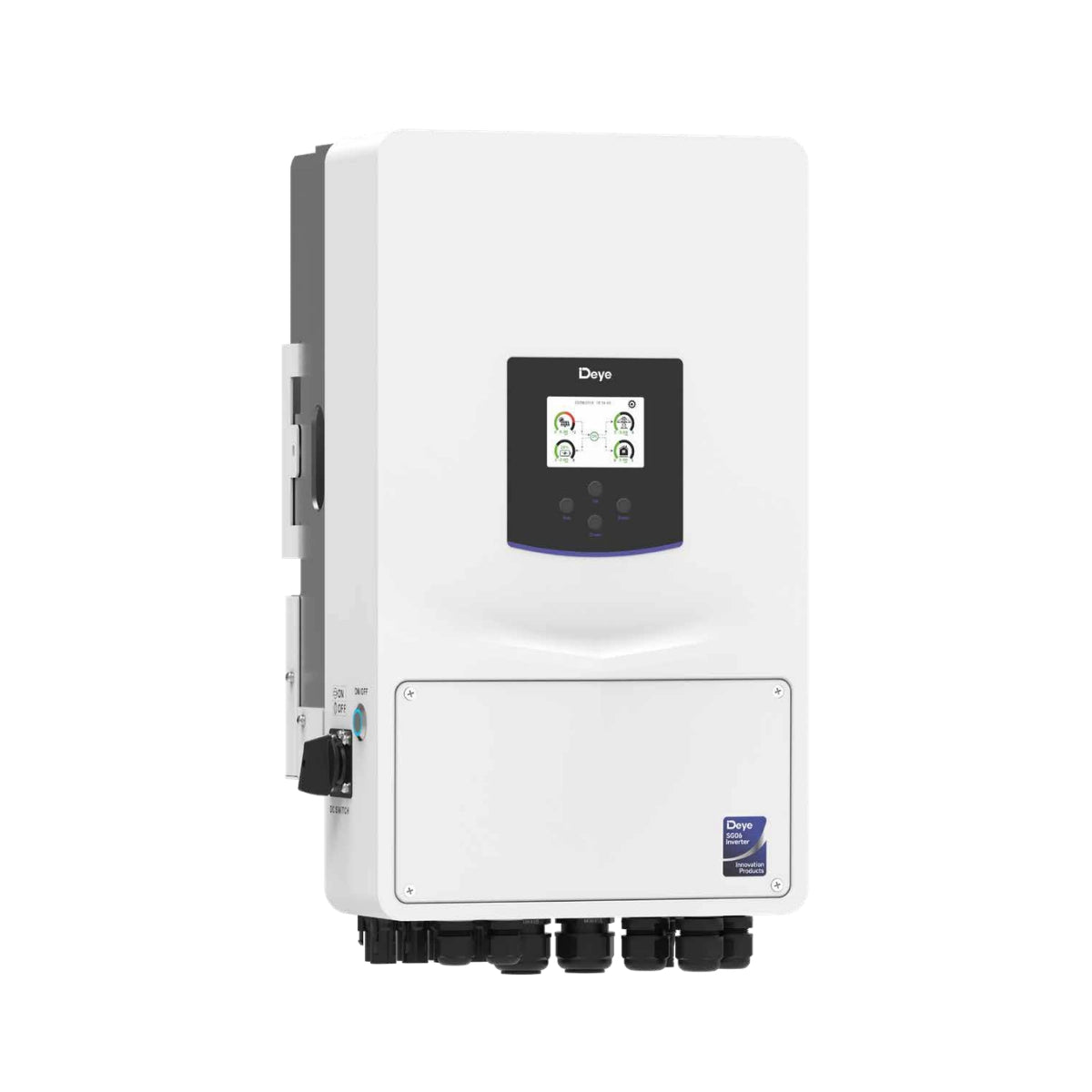

Deye: 8Kw Single Phase LV Hybrid Inverter Tri-MPPT IP65 Integrated WIFI

Battery Input
- Battery Type: Lithium / Lead-acid
- Battery Voltage Range: 40~60V
- Max. Charging/Discharging Current: 185A
- Charging Strategy for Li-ion Battery: Self-adaption to BMS

PV String Input
- Max. PV Input Power: 16000W
- PV Input Voltage: 500V
- MPPT Number / Max. Input Strings: 3/2+1+1
- Max. Input Current: 36+18+18
- Max. Short-Circuit Current: 54+27+27
- MPPT Voltage Range: 150-425

AC Input/Output Data
- Rated AC Input/Output Active Power (W): 8000
- Max. AC Input/Output Apparent Power (VA): 8800
- Rated AC Input/Output Current (A): 36.4/34.8
- Max. AC Input/Output Current (A): 40/38.3
- Max. Continuous AC Passthrough (grid to load) (A): 70
- Peak Power (off-grid) (W): 2 times of rated power, 10s
- Rated Input/Output Voltage/Range (V): 220/230 0.85Un-1.1Un
- Rated Input/Output Grid Frequency/Range(Hz): L+N+PE

Efficiency
- Max. Efficiency: 97.6%
- Euro Efficiency: 96.5%
- MPPT Efficiency: > 99.9%

Equipment Protection
- Integrated: DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection,AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Insulation Impedance Detection
- Surge Protection Leve: TYPE II(DC), TYPE II(AC)

Interface
- LCD/LED display: LCD
- Communication Interface: WIFI,RS485,CAN

General Data
- Operating Temperature Range (℃): -40 to +60℃, >45℃ Derating
- Permissible Ambient Humidity: 0-100%
- Permissible Altitude: 3000m
- Noise (dB): <46dB
- Ingress Protection(IP) Rating: IP65
- Inverter Topology: Non-Isolated
- Over Voltage Category: OVC II(DC), OVC III(AC)
- Cabinet Size (WxHxD mm): 340×580 ×234 (Excluding Connectors and Brackets)
- Weight (kg): 24.6
- Type of Cooling: Intelligent Air Cooling
- Warranty: Standard 5 years, extended warranty
- Safety / EMC Standard:IEC62109-1/-2, EN61000-6-1,EN61000-6-2,EN61000-6-3,EN61000-6-4

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.
