Deye

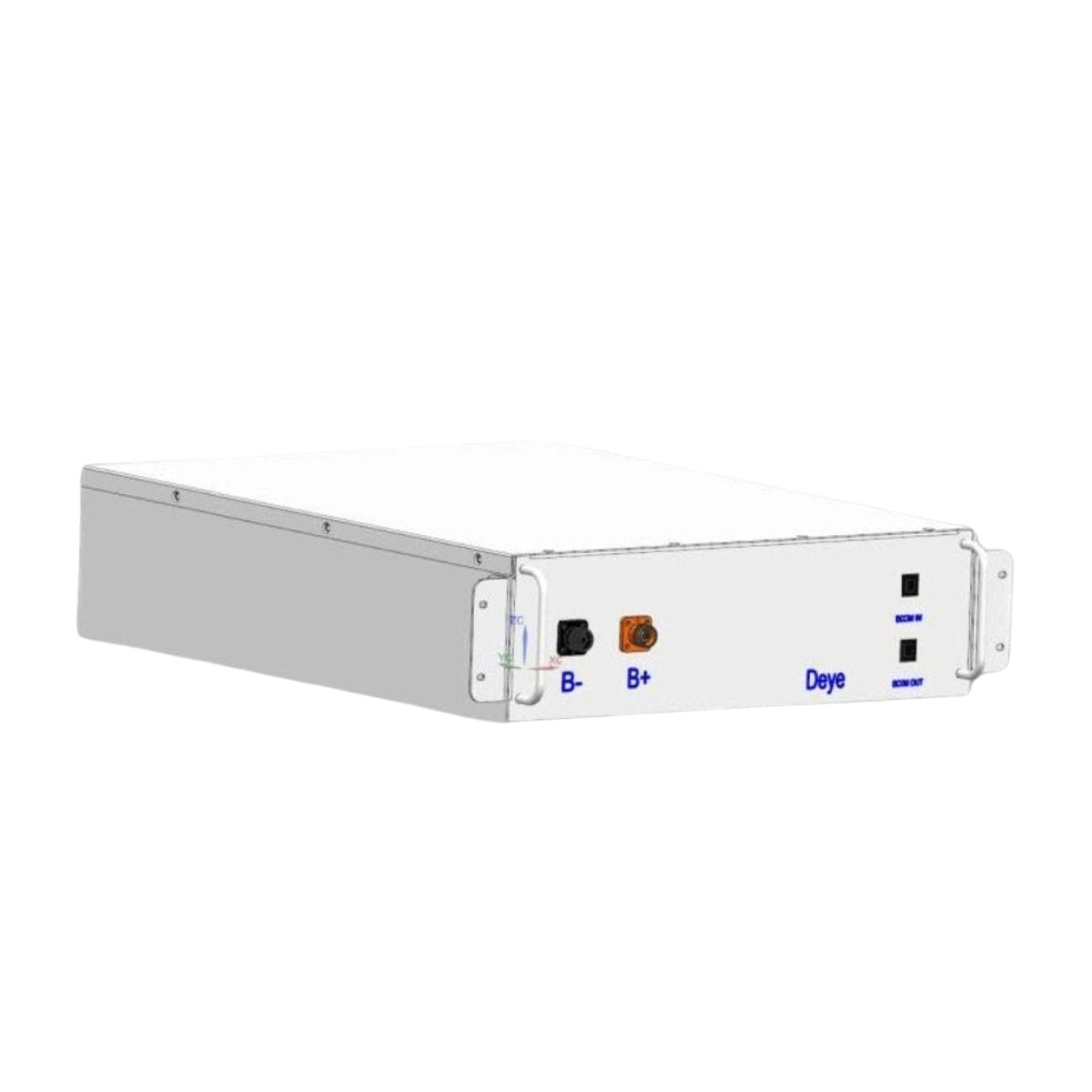

Deye HV Battery Lithium Ion High Voltage 5.12Kwh 51.2V 100Ah

Deye HV Battery Lithium Ion High Voltage 5.12Kwh 51.2V 100Ah

R 17,414.00
R 17,414.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Deye: HV Battery Lithium Ion High Voltage 5.12Kwh 51.2V 100Ah

The BOS-GM5.1 is a high-performance 5.12kWh lithium iron phosphate (LiFePO₄) battery module, designed for scalable and reliable energy storage in residential and commercial solar systems. Built with advanced safety features and an intelligent Battery Management System (BMS), it delivers long cycle life, high operational safety, and modular expandability. The BOS-G series is compatible with Deye inverters and supports both local and remote upgrades for seamless integration.

Product Features:

  • Battery Type: LiFePO4 (LFP)
  • Nominal Voltage: 51.2VDC
  • Nominal Capacity: 100AH
  • Nominal Energy: 5.12KWH
  • Nominal Charge / Discharge Current: 100A
  • Maximum Charge / Discharge Current: 125A
  • Charge Temperature: 0°C to 50°C
  • Discharge Temperature: -20°C to 55°C
  • Storage Temperature: 0°C to 35°C
  • Ingress Protection: IP20
  • Mounting: Rack Mount (3U)

PRODUCT SPECIFICATIONS

- Battery Chemistry: LiFePO₄ (LFP)
- Nominal Voltage: 51.2V
- Nominal Energy: 5.12kWh
- Working Temperature(°C): Charge: 0~50/Discharge:-20~55
- Storage Temperature: 0°C to 35°C
- Recommend Depth of Discharge: 90%
- Communication Ports: CAN 2.0, RS485
- Ingress Protection: IP20

Status Indicators:
- Yellow: Battery High Voltage Power On
- Red: Battery System Alarm

- CycleLife: 25±2°C, 0.5C/0.5C,EOL70%≥6000
- Warranty: 10years

IMPORTANT NOTICE

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact representation of the product.

Crystal Communications (Pty) Ltd may not have all the specific items or quantities of stock you have requested. Our dedicated Customer Service Team will use our extensive network to try to source the stock for you ASAP. You will be notified within 24 hours if we cannot source the required item, and a full refund will be processed on your order. Should you wish to contact us directly, please call 0118670488 or email sales@crystalcom.co.za
