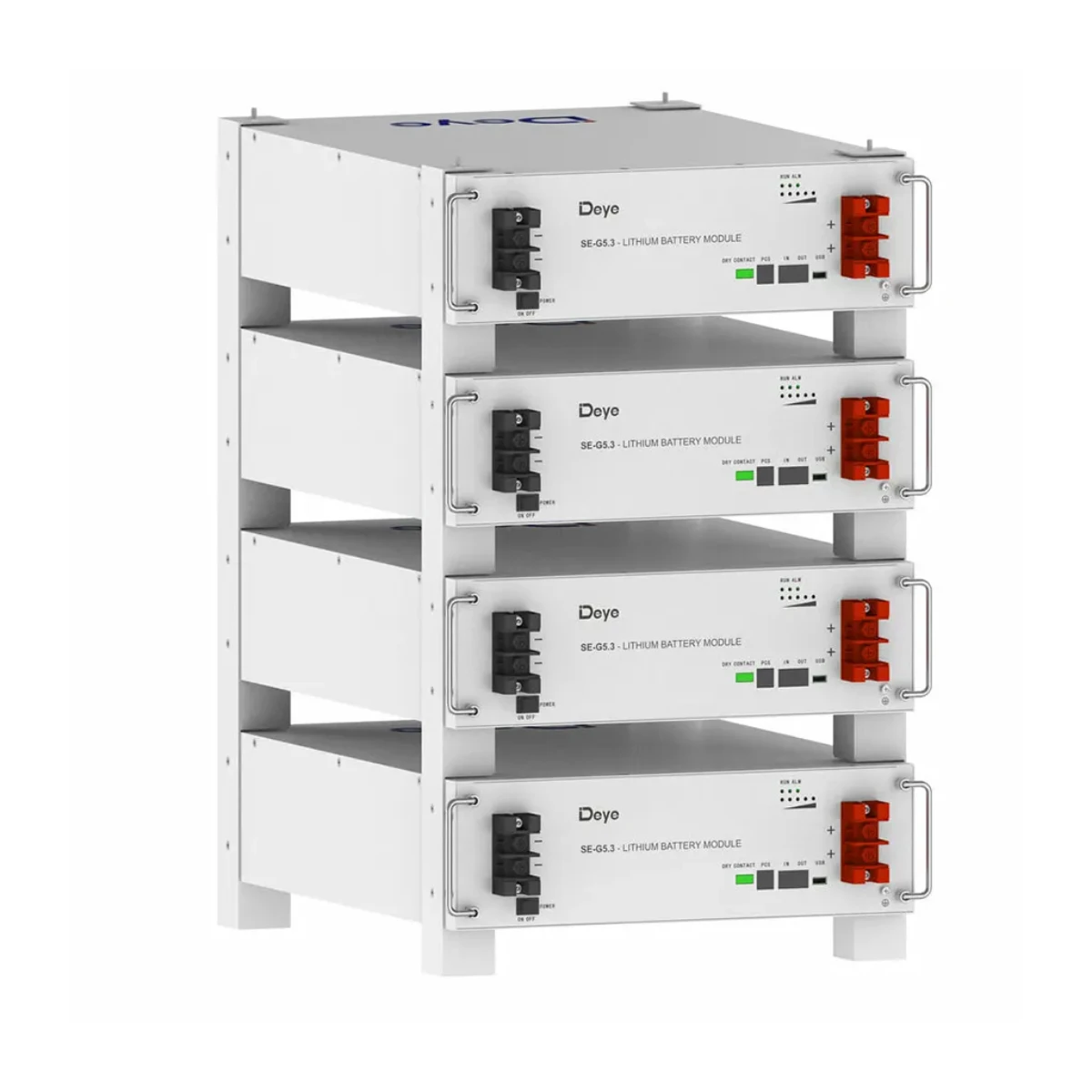

Deye Lithium Ion Battery Low Voltage 5.32Kwh 51.2V 104Ah

Deye Lithium Ion Battery Low Voltage 5.32Kwh 51.2V 104Ah

This series of lithium iron phosphate batteries is one of the new energy storage products developed and produced by Deye. It can be used to provide reliable power for various types of equipment and systems.

This battery series is especially suitable for applications with high power demands, limited installation space, restricted load-bearing, and a long cycle life. The series includes a built-in BMS (Battery Management System), which can manage and monitor cell information, including voltage, current, and temperature. Moreover, the BMS can balance cell charging to extend the cycle life.

Multiple batteries can be connected in parallel to achieve larger capacity and longer power-supporting duration requirements."

NOTE: Includes Battey Cables

Product Features:

• Safer: Cobalt Free Lithium Iron Phosphate (LFP) Battery: Safety and long lifespan, high efficiency and high power density. Intelligent BMS, providing complete protection.
• Reliable: Support high discharge power. IP20, natural cooling, wide temperature range: -20℃ to 55℃.
• Flexible: Modular design, easy to expand, Max. 64 units in parallel, Max. capacity of 340kWh. Suited to residential and commercial applications for increasing the self-consumption ratio.
• Convenient: Battery module auto networking, easy maintenance, support remote monitoring and upgrade, support USB drive upgrade the firmware.
• Eco-Friendly: Use environmental protection materials, the whole module is non-toxic, and pollution-free.

Specifications:

• Battery Chemistry: LiFePO 4
• Capacity (Ah): 104
• Scalability: Max. Max. 64 pcs pack (340kWh) in parallel (Max. 32 pcs no external setup)
• Nominal Voltage (V): 51.2
• Operating Voltage(V): 43.2~57.6
• Energy(kWh): 5.32
• Usable Energy(kWh)*: 4.79
• Charge/Discharge Current (A):
• Recommend: 50
• Max: 100
• Peak: 120 (30s,25℃)
• Recommend Depth of Discharge: 90%
• Dimension (W/H/D, mm): 440*133*560
• Weight Approximate (kg): 45
• Warranty Period: 10 years
