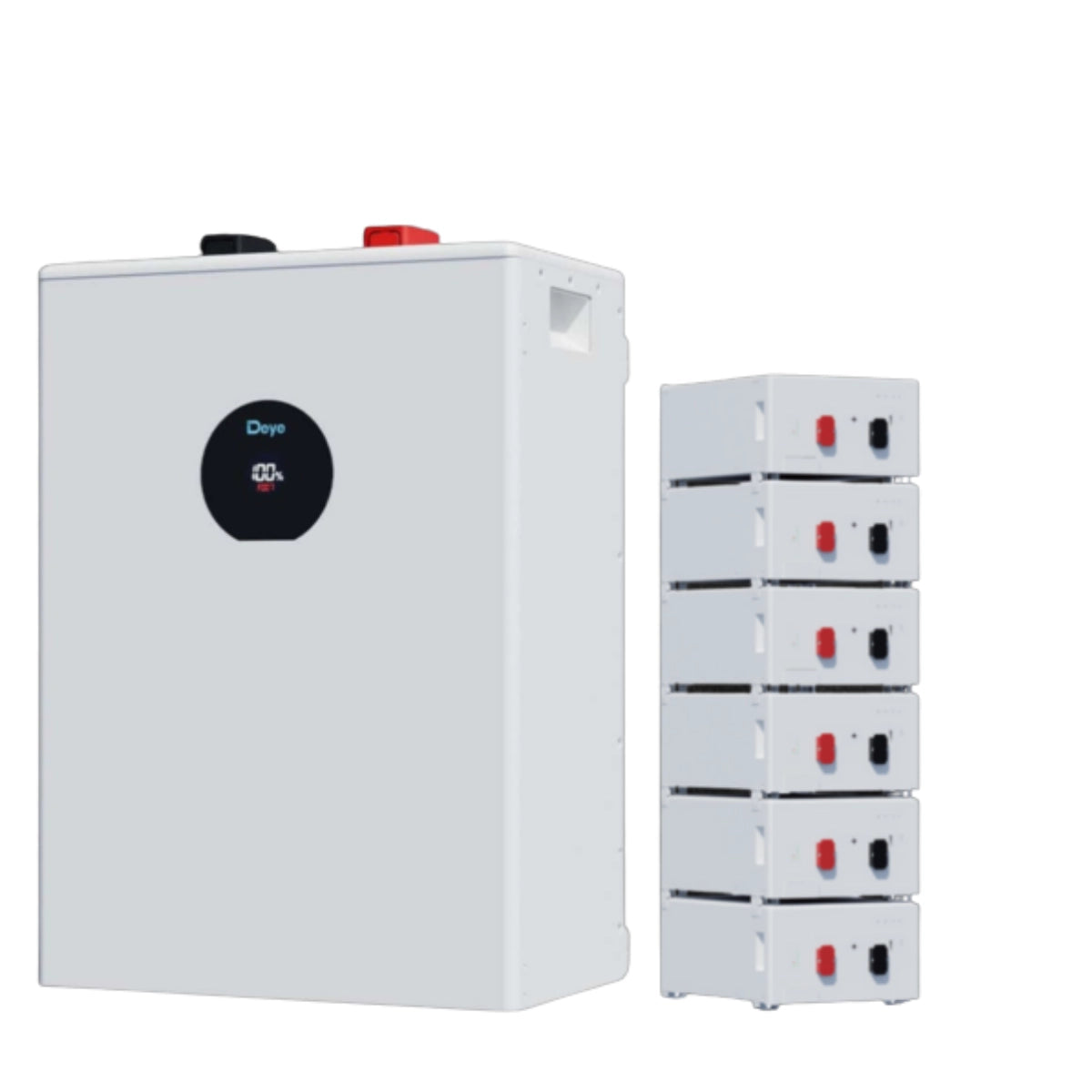

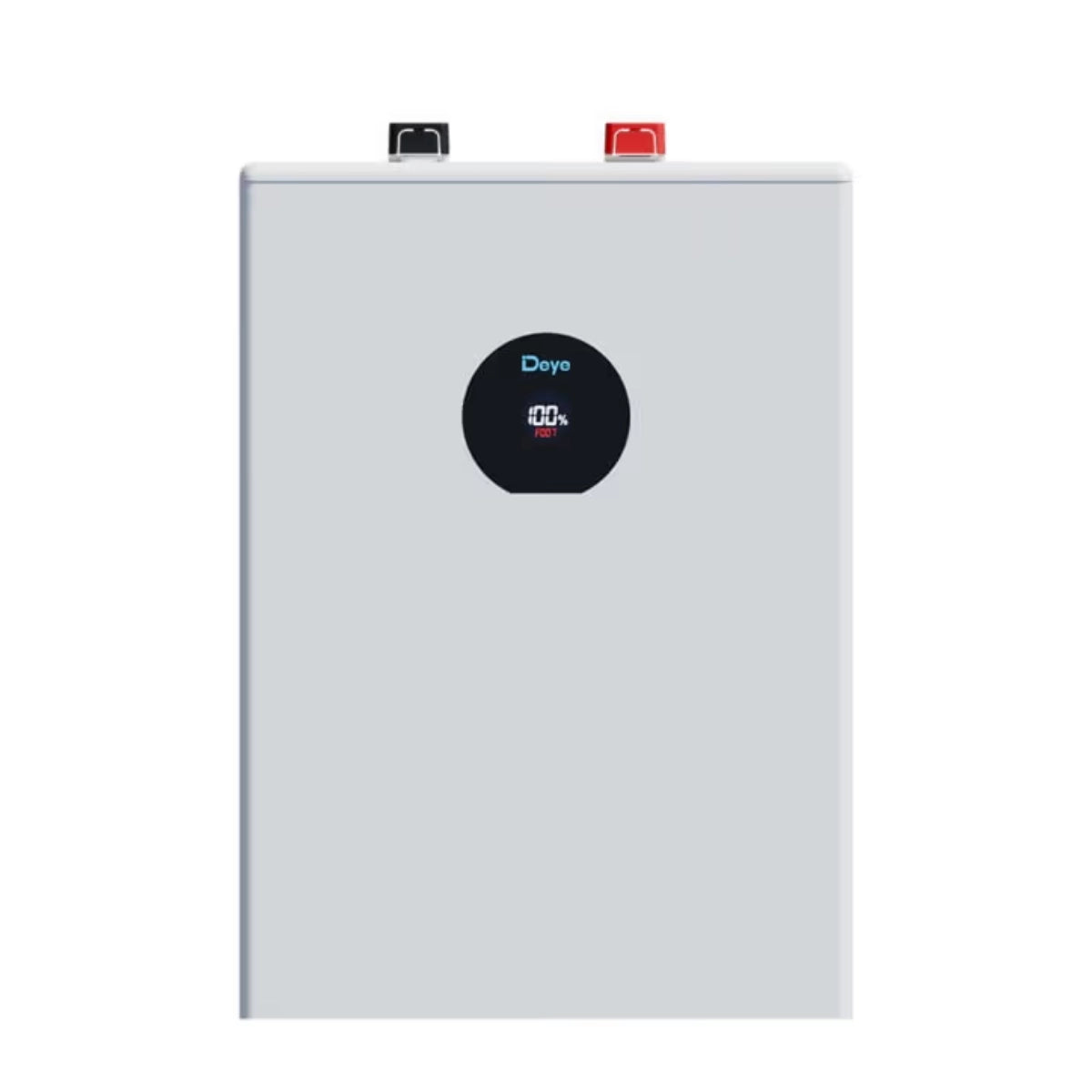

Deye LV Battery Lithium Ion Low Voltage 11.8Kwh 51.2V 230Ah

Deye LV Battery Lithium Ion Low Voltage 11.8Kwh 51.2V 230Ah

R 30,533.00
R 30,533.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Deye LV Battery Lithium Ion Low Voltage 11.8Kwh 51.2V 230Ah  Wall, Floor & Stack Mount

The Deye SE-F12 is a powerhouse home battery for solar system applications, delivering an impressive 11.8 kWh of nominal energy per unit to keep your household running efficiently, day and night. Engineered for those who demand more from their home solar storage, this is the new ESS standard for residential and beyond.

Product Features:

  • Comprehensive Protection: Advanced BMS with active fuse
  • Superior Performance
  • Optimized Energy Density: Integrated PACK: reduced line loss, enhanced energy density
  • Flexible Expansion: Max. 32 units in parallel
  • Easy Maintenance: Auto-networking, Local monitoring mode for battery, remote monitoring mode for ESS
  • Reliable Durability: Operates reliably in -20℃ to 55℃, natural cooling

PRODUCT SPECIFICATIONS

Main Parameter
- Battery Chemistry: LiFePO4
- Capacity (Ah): 230 Ah
- Scalability: Max. 32 pcs in parallel
- Nominal Voltage (V): 51.2
- Operating Voltage(V): 44.8 V ~ 57.6 V
- Nominal Energy (kWh): 11.8 kWh

Charge Current
- Max. Continuous: 230 A
- Peak: 280 A ( 10 sec )

Discharge Current
- Max. Continuous: 230 A
- Peak: 280 A ( 10 sec )

Other Parameter
- Other Parameter: 90%
- Dimension (W/H/D, mm): 400 × 559 × 233 mm (Without hanging board)
- Weight Approximate(kg): 84 kg
- Master LED Indicator: LED ( SOC, working, protecting ) & Buzzer
- IP Rating of Enclosure: IP21
- Operating Temperature: Charge:0 ~ +55℃ / Discharge: -20℃ ~ +55℃
- Storage Temperature: 0℃ ~ +35℃
- Altitude: ≤3000m
- Cycle Life: ≥6000(25℃±2℃,70%EOL)
- Installation: Wall-Mounted, Floor-Mounted, Stack-Mounted
- Communication Port: CAN2.0, RS485, Bluetooth+APP
- Warranty Period: 5 years / 10 years (extended warranty)
- Energy Throughput: 18 MWh
- Certification: UN38.3, MSDS, CE, CB

IMPORTANT NOTICE

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact representation of the product.

Crystal Communications (Pty) Ltd may not have all the specific items or quantities of stock you have requested. Our dedicated Customer Service Team will use our extensive network to try to source the stock for you ASAP. You will be notified within 24 hours if we cannot source the required item, and a full refund will be processed on your order. Should you wish to contact us directly, please call 0118670488 or email sales@crystalcom.co.za
