Deye LV Battery Lithium Ion Low Voltage 5.32Kwh 51.2V 104Ah Wall & Rack Mount

Deye LV Battery Lithium Ion Low Voltage 5.32Kwh 51.2V 104Ah Wall & Rack Mount

R 15,905.00
R 15,905.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Deye LV Battery Lithium Ion Low Voltage 5.32Kwh 51.2V 104Ah Wall & Rack Mount

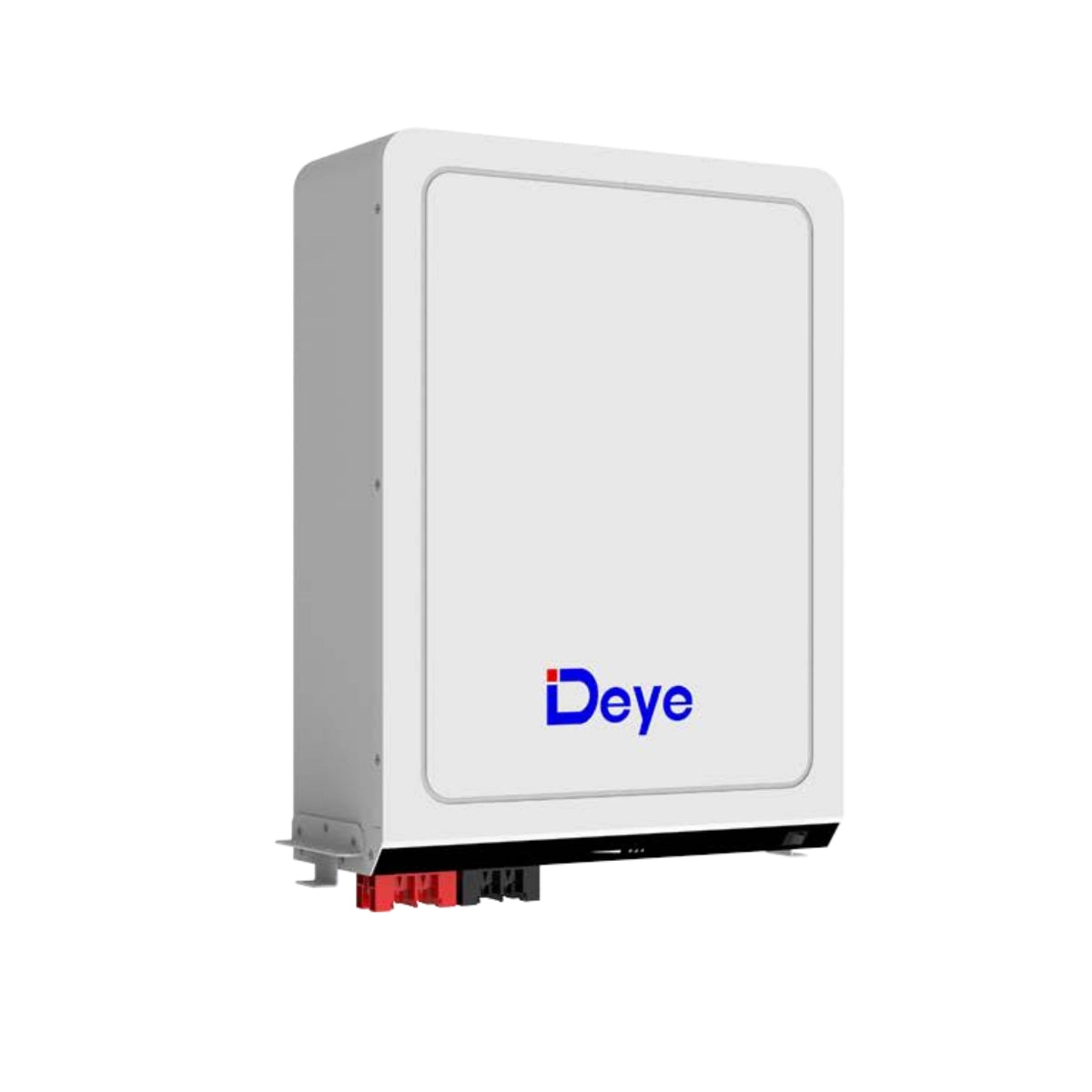

The Deye RW-M5.3 Pro is a state-of-the-art Lithium Iron Phosphate (LFP) battery designed for both residential and commercial applications. This modular, cobalt-free battery offers superior safety, reliability, and flexibility, making it the perfect choice for those looking to increase their self-consumption ratio and optimize their energy storage solution.

Product Features:

  • LFP Battery technology eliminates the risk associated with cobalt, providing a safer, long-lasting, and high-efficiency energy storage solution
  • The intelligent Battery Management System (BMS) offers complete protection
  • Natural cooling system and wide operating temperature range (-20°C to 55°C) ensure reliable performance in various conditions
  • Maximum of 32 units in Parallel and a total capacity of up to 170 kWh
  • Auto Networking for easy maintenance
  • Remote Monitoring
  • Firmware upgrades via USB drive
  • Environmentally friendly, non-toxic, and pollution-free materials used in the construction
  • The flat design of the RW-M5.3 Pro allows for both wall-mounted and 19-inch rack installation

PRODUCT SPECIFICATIONS

Main Parameter
- Battery Chemistry: LiFePO4
- Built-in Circuit Breaker: 125A 1P, 125Vdc
- Capacity (Ah): 104
- Scalability: Max.32 pcs in Parallel(170kWh)
- Nominal Voltage (V): 51.2
- Operating Voltage(V): 43.2~57.6
- Nominal Energy (kWh): 5.32
- Usable Energy (kWh): 4.79

Charge/Discharge Current (A)
- Recommend: 50
- Max.: 100
- Peak: 150 (2mins,25℃)

Other Parameter
- Other Parameter: 90%
- Dimension (W/H/D, mm): 440*581*165(Without hanging board and handle)
- Weight Approximate(kg): 45
- Master LED Indicator: 5LED(SOC:20%~SOC100%), 3LED (working, alarming, protecting)
- IP Rating of Enclosure: IP20
- Operating Temperature: Charge:0 ~ +55℃ / Discharge: -20℃ ~ +55℃
- Storage Temperature: 0℃ ~ +35℃
- Humidity: 5% ~ 95%
- Altitude: ≤2000m
- Cycle Life: ≥6000(25℃±2℃, 90%DOD, 0.5C/1C,70%EOL)
- Installation: Wall-Mounted, 19inch Rack-mounted
- Communication Port: CAN2.0, RS485
- Warranty Period: 5 years
- Energy Throughput: 16MWh@70%EOL
- Certification: UN38.3, CE, IEC62619

IMPORTANT NOTICE

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact representation of the product.
