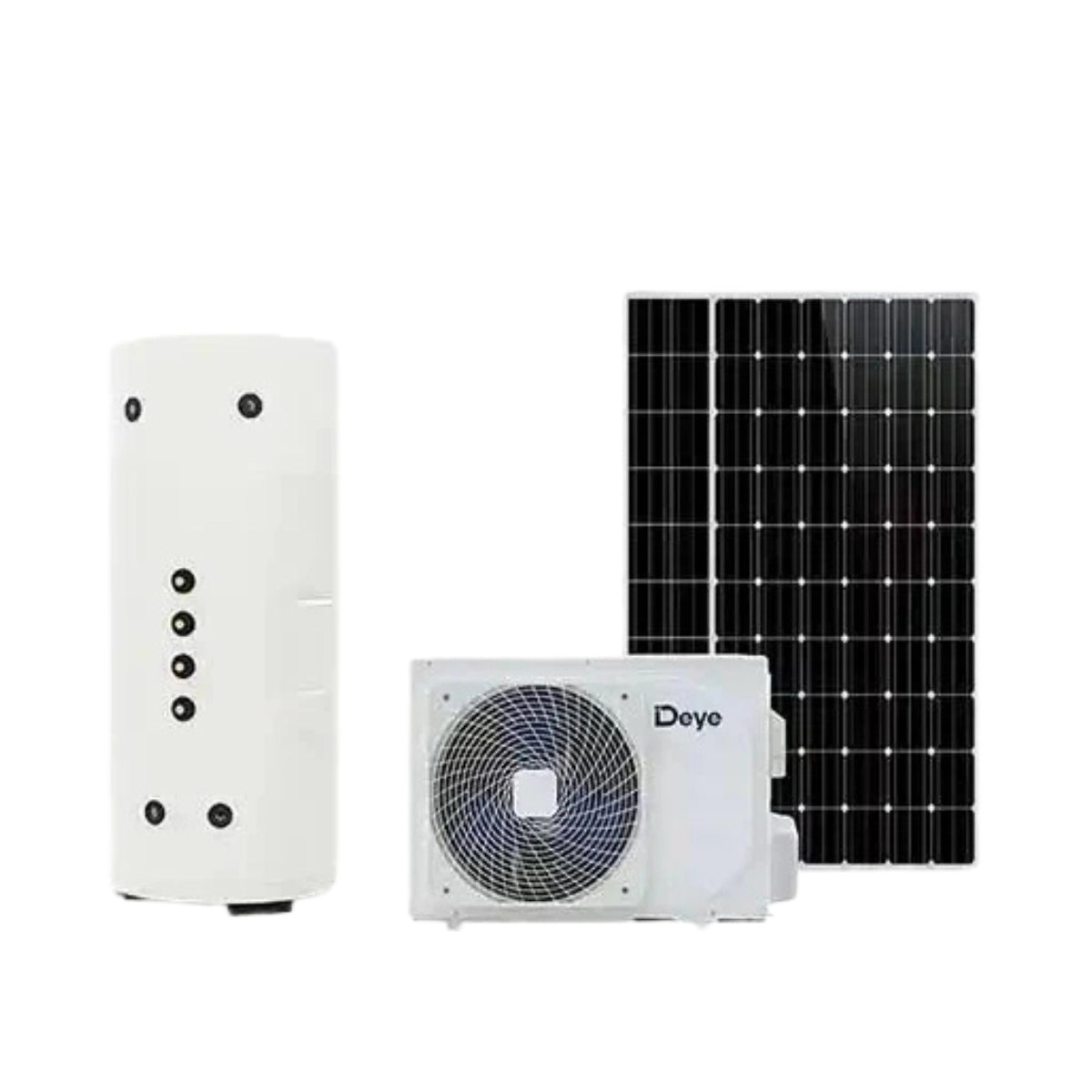

The Hybrid AC/DC Air Source Heat Pump is a highly efficient solution for heating water while reducing energy costs. Designed with a split system and waterproof IPX4 rating, it combines the power of the grid and solar energy to ensure reliable performance under a wide range of conditions. By extracting heat from the ambient air and utilizing solar input, it delivers sustainable hot water with maximum efficiency.
Product Features:
- Hybrid AC/DC Operation – Automatically switches between grid AC power and solar DC power for optimal efficiency.
- Air Source Heat Pump – Extracts heat from ambient air to provide highly efficient water heating.
- Solar Panel Input – Connects to solar panels to harness renewable energy and reduce electricity costs.
- High Coefficient of Performance (COP) – Efficient energy conversion for maximum heating output.
- Smart Controls – Remote monitoring and operation via smartphone apps with programmable settings.
- Split Design – Flexible installation with separate indoor and outdoor units.
-
Waterproof Level IPX4 – Designed for durability in outdoor installations.
Specifications:
- Water Tank Model: DSX-300G
- Water Tank Volume: 300 L
- Heating Capacity: 4100 W
- Rated AC Grid Power: 208–240 V / 50–60 Hz
- Solar Panel Power (DC): 80–380 V
- Electric Shock Prevention: Class I
- Water Heating Range 15 °C to 55 °C: 88.1 L/H
- Rated Power Consumption: 972 W
- Rated Current: 4.5 A
- Coefficient of Performance (COP): 4.22
- Max Current (AC): 7.4 A
- Max Current (DC): 12.0 A
- Max Power Consumption: 1600 W
- Noise Level: 52 dB(A)
- Refrigerant: R410A
- Water Proof Level: IPX4
- Outdoor Unit Net/Gross Weight: 33.5 / 37.5 kg
- Outdoor Unit Dimensions (Net): 802 × 323 × 564 mm
- Outdoor Unit Package Dimensions: 910 × 405 × 622 mm
- Water Tank Net/Gross Weight: 80 / 92 kg
- Water Tank Dimensions: Φ580 × 1810 mm
- Water Tank Package Dimensions: 605 × 605 × 1915 mm
- Water Inlet/Outlet Connector Size: DN20
- Heat Exchanger Max. Pressure: 4.4 MPa
-
Max Discharge/Suction Pressure: 4.4 / 1.8 MPa
