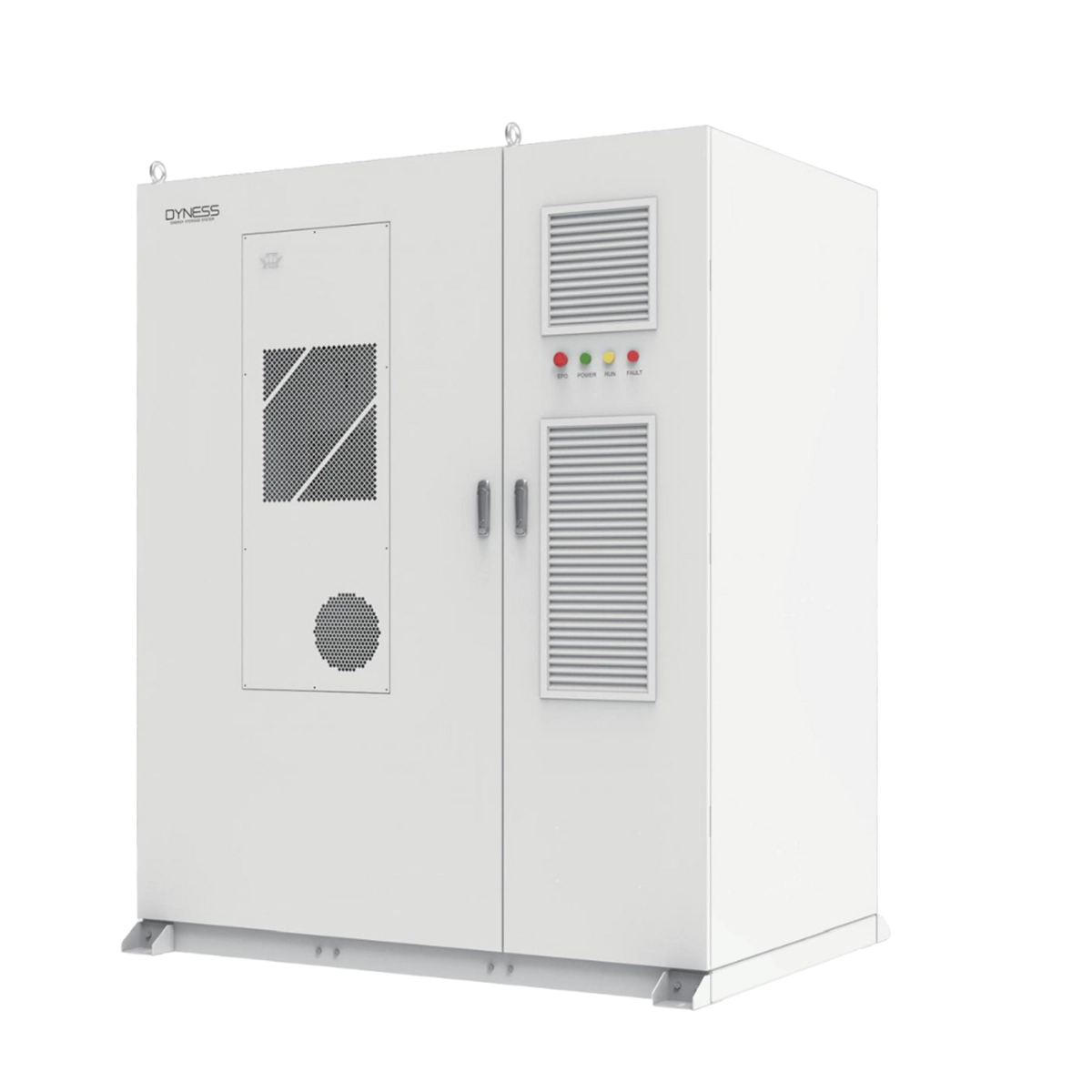

Dyness 100KW Three Phase HV All-In-One System DH200F (2X MPPT)

Features:

• Overall Solar + Storage Solution
• 3 X build in MPPT
• All-In-One Design Concept
• High-Level Safety Design
• Convenient Outdoor Setup
• Allows for Flexible System Design
• Capacity expandable to Megawatts
• Industrial & Commercial Application
• Highly Integrated Modular Design
• AI Self-Monitoring

Technical Specifications:

Battery Specifications:

• Battery Module Type: HV51280F
• Cell Capacity: 280Ah
• Battery Voltage Range: 672~864V
• Nominal Current: 140A (0.5C)
• System Storage Power: 215kWh

AC Specifications (on-grid)

• Nominal Power: 100kW
• AC Nominal Voltage: 400V
• Wiring: 3P4L+PE
• Nominal Frequency: 50Hz
• AC Maximum Current: 158A
• Max. number of BESS in parallel: 12

AC Specifications (off-grid)

• Nominal Power: 100kW
• AC Nominal Voltage: 400V
• Wiring: 3P4L+PE
• Nominal Frequency: 50Hz
• AC Maximum Current: 158A
• Unbalanced Load Capacity: 100%
• On-grid Switching to Off-grid Time: ＜20ms
• Off-grid Switching to On-grid Time: ＜20ms
• Max. number of BESS in parallel: 5

Photovoltaic Input

• MPPT Voltage Range: 200-670V
• MPPT channels: Up to three
• Input Power: Single channel 50kW

System Specifications

• Dimensions(W*D*H): 1850*1200*2250mm
• Weight: ≈3300kg
• Air Conditioner Power: 3kW (Cooling capacity)
• Operation Temperature: -20~50°C
• Operation Humidity: 0~95%(Non-condensing)
• Protection Level: IP55
• Anti-corrosion Level: C3
• Noise Level: ≤75dB
• Cooling System: Fan Cooling
• Firefighting: Aerosol/Heptafluoropropane (FM-200)/Perfluoro
• EMS Communication: Ethernet

Delivery and Packaging not included and to be calculated on request. Kindly contact our sales team to confirm stock availability and lead times.
