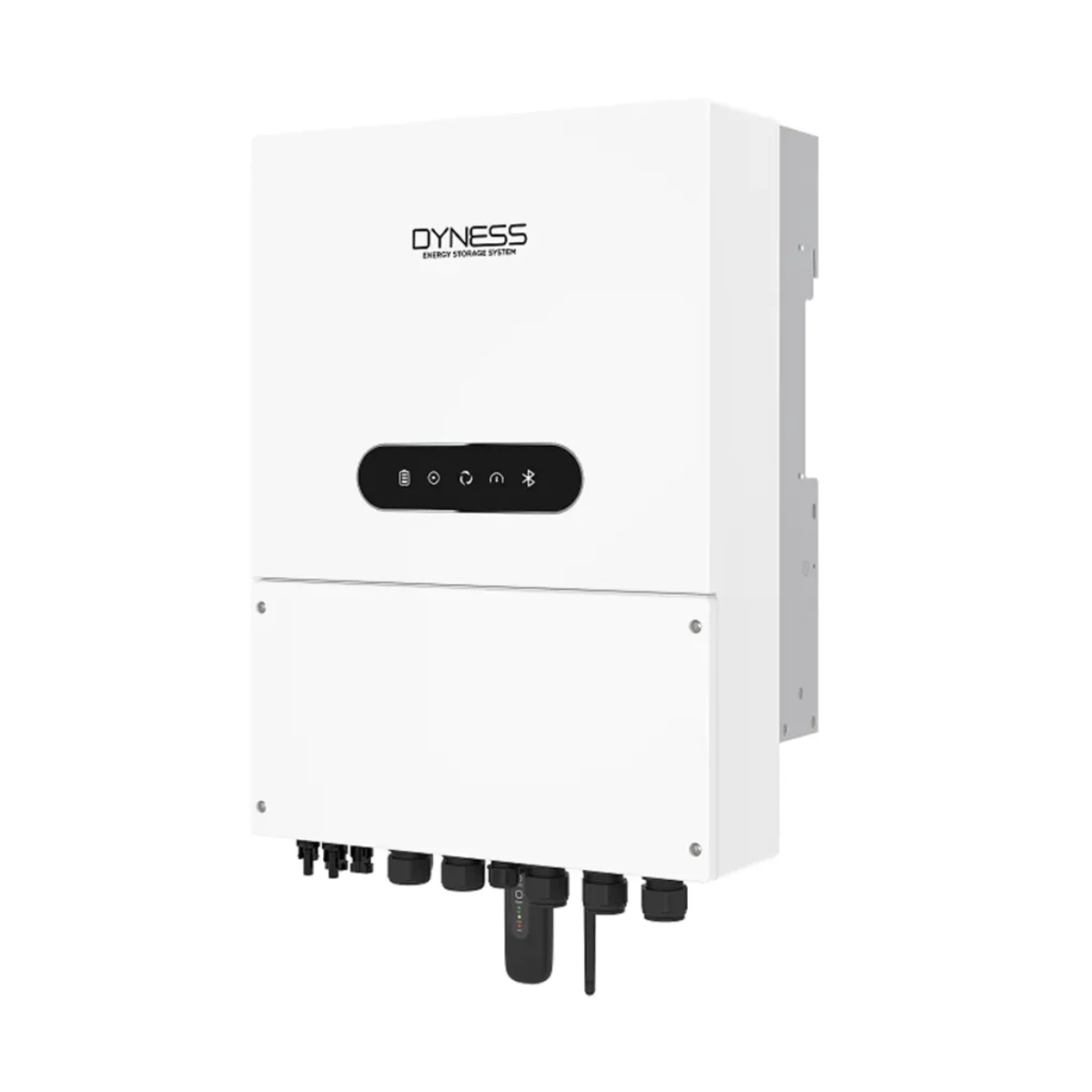

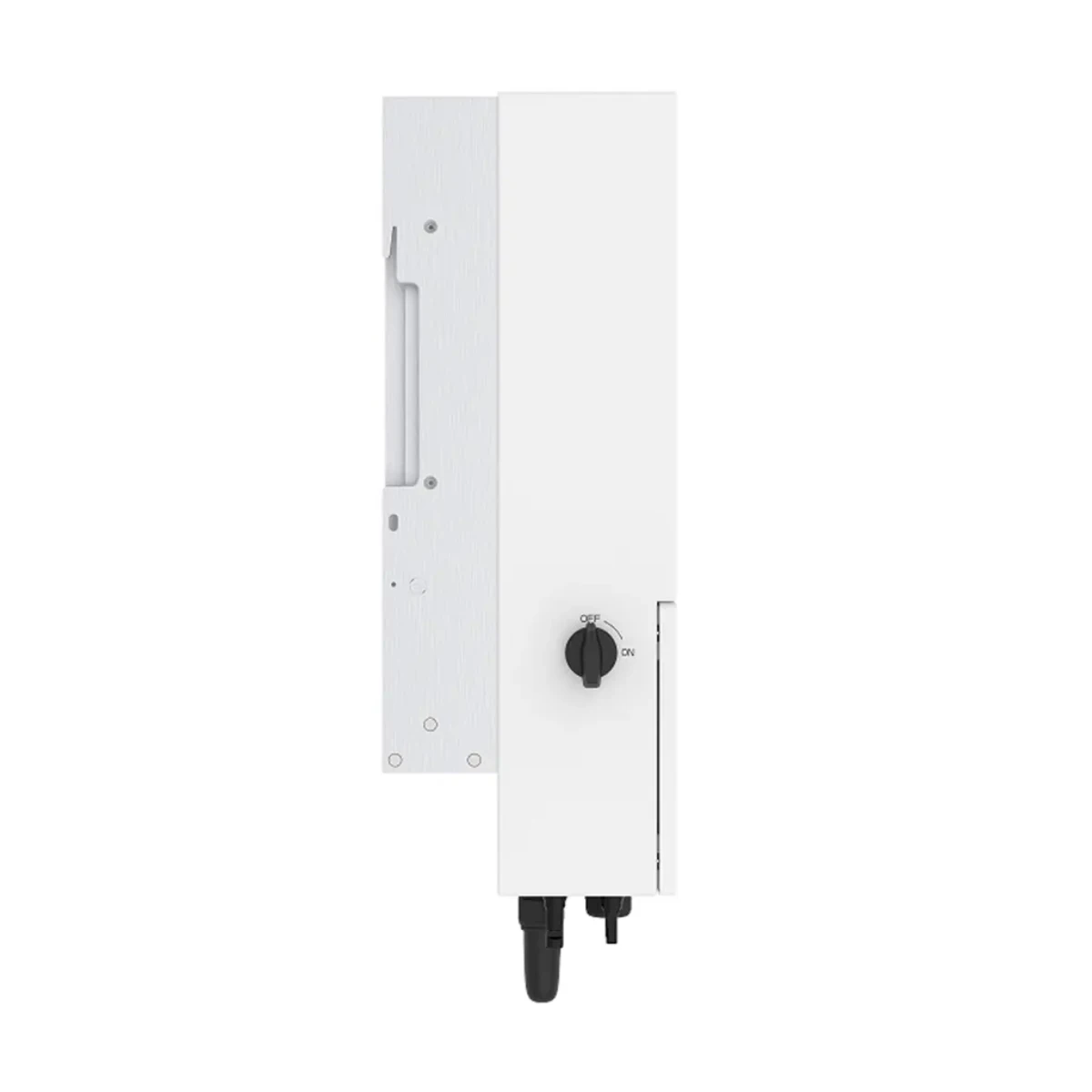

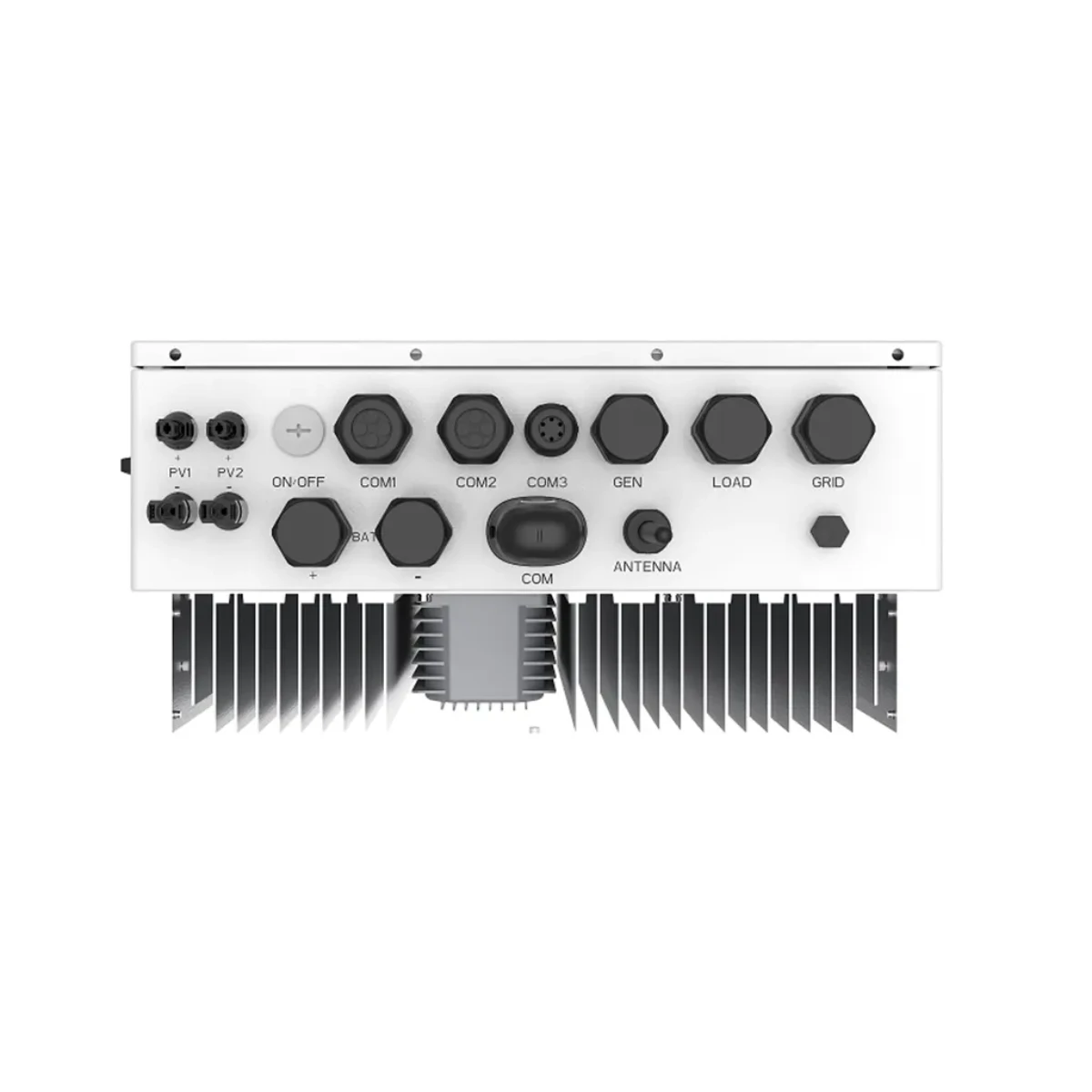

Dyness 6KW Single Phase LV Hybrid Inverter

Dyness 6KW Single Phase LV Hybrid Inverter with CT & WIFI Included - Dyne-6.0L-1P-A

The DYNE 5.0/6.0/8.0L-1P-A series is designed for residential hybrid systems. The inverter can work with Dyness low-voltage lithium-ion battery DL5.0X/DL5.0C/ Powerbox Pro to maximize self-consumption and provide backup power if the grid fails and there is not enough PV power to cover load demand.

Product Features:

• Generator connectivity with multiple input methods and automatic generator On/Off control
• Automatic UPS switching(<4ms)
• Supports peak shaving control in both "self-use" and "generator" mode
• Up to 135A(5.0/6.0K) and 190A(8.0K) max charge/discharge current
• 6 customizable charge/discharge time settings
• 10-second 200% surge power backup overload capability
• Supports 1ph and 3ph flexible connection with max 36kW (5.0/6.0K) and 48kW(8.0K) in parallel

Specifications:

• Input DC (PV side):
• Recommended max. PV power: 9.6 kW
• Max. input voltage: 600 V
• Rated voltage: 300 V
• Start-up voltage: 90 - 520 V
• Max. input current: 16 A / 16 A
• Max. short circuit current: 24 A / 24 A
• Battery:

• Battery type: Li-ion
• Max. charge/discharge power: 6 kW
• Max. charge/discharge current: 135 A
• Output AC (Grid side):
• Rated output power: 6 kW
• Max. output current: 30 A
• Max. input current: 40 A
• General

• Dimensions(W*H*D): 405*560*205mm
• Weight: 24 kg
• Ingress protection: IP66
